TELEHANDLER ADJUSTABLE SPREADER BAR W/ TOP HOOKS | HAUGEN

TELEHANDLER ADJUSTABLE SPREADER BAR W/ TOP HOOKS | HAUGEN

$ 4,695.00 USD
$ 5,340.00 USD $ 4,695.00 USD
Shipping calculated at checkout.
Ask a Question

Description

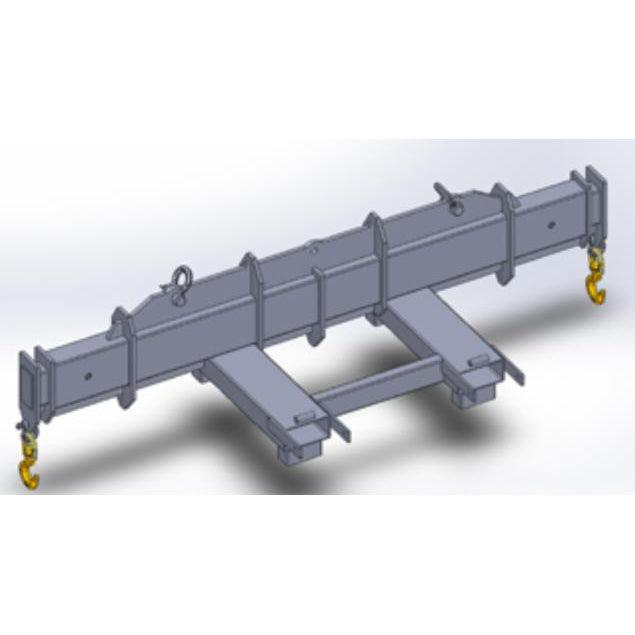

Adjustable Spreader Bar with Top Hooks

  • Fits Telehandlers and Forklifts
  • The fork pockets hold the Spreader Bar at 24" on center.
  • 3/4" pins secure the spreader bar to your forks
  • Fork Pocket fit tines up to 3.50" thick x 7.50" wide.
  • Comes standard with two 5 ton swivel hooks and two shackles for the top of the plate
  • Available sizes, 8' to 12', 10' to 15', and 13' to 20'

      Specification

      Model Spread Lifting Capacity Weight
      MASPRX 812 Center Position - Single Point Load 10000 LBS 720 LBS

      		Point Loads @ 65.375" spread position 5000 x 2 = 10000 LBS

      		Point Loads @ 97.88" spread position 4000 x 2 = 8000 LBS
        Point Loads @ 121.88" spread position 3500 x 2 = 7000 LBS
        Point Loads @ 145.88" spread position 3000 x 2 = 6000 LBS



      MASPRX 1015 Center Position - Single Point Load 10000 LBS  825 LBS
        Point Loads @ 65.375" spread position 5000 x 2 = 10000 LBS
        Point Loads @ 89.00" spread position 5000 x 2 = 10000 LBS
        Point Loads @ 120.00" spread position 4000 x 2 = 8000 LBS
        Point Loads @ 150.00" spread position 3500 x 2 = 7000 LBS
        Point Loads @ 180.00" spread position 3000 x 2 = 6000 LBS




      MASPRX 1320 Center Position - Single Point Load 10000 LBS  995 LBS
        Point Loads @ 63.375" spread position 5000 x 2 = 10000 LBS
        Point Loads @ 110.00" spread position 4000 x 2 = 8000 LBS
        Point Loads @ 162.00" spread position 3500 x 2 = 7000 LBS
        Point Loads @ 201.00" spread position 3000 x 2 = 6000 LBS
        Point Loads @ 120.00" spread position 2250 x 2 = 4500 LBS
