Product Description

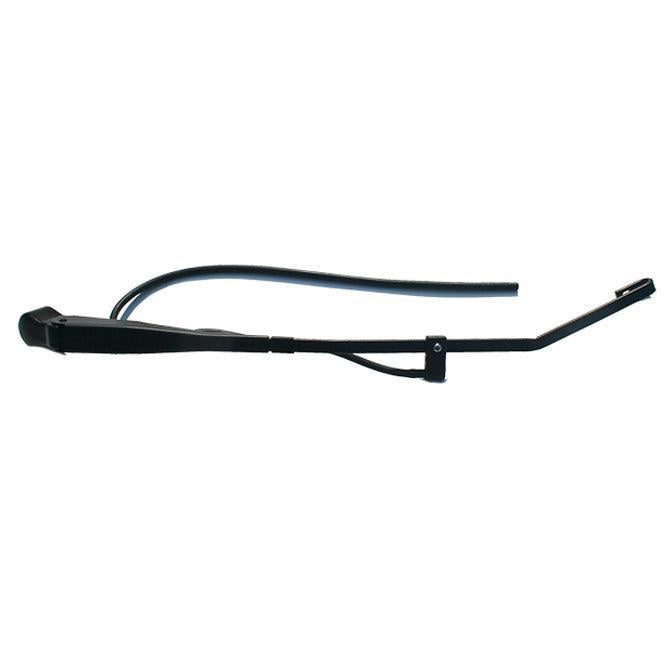

John Deere Wiper Arm AT324282
Replace a worn or damaged windshield-wiper arm on compatible John Deere skid steer and compact track loader cabs. This aftermarket arm replaces John Deere part AT324282. Deere lists AT324282 as a 425 mm wiper arm used across several loader models, but the installed cab, glass, and serial range still need to match.
Which John Deere models are listed?
Published applications include John Deere 240, 250, 260, 270, 280, 313, 315, 317, 320, 325, 328, and 332 skid steers, plus CT315, CT322, and CT332 compact track loaders. Some applications may use different wiper parts by serial number or cab configuration. Verify AT324282 in the Deere parts catalog for the specific machine before ordering.
What comes with this part?
The listing is for one wiper arm. A blade is not included. Inspect the existing blade, arm connection, splined drive shaft, washer components, and motor before deciding which additional parts are needed. Compare the bend and attachment points on the old arm with the product image.
What should I check before ordering?
- Confirm John Deere part AT324282 by model and serial number.
- Check that the existing arm and drive-shaft connection match the replacement.
- Inspect the windshield and door configuration for prior changes.
- Measure the blade and identify its connector if it also needs replacement.
- Check the motor park position and wiper sweep for signs of another fault.
How should the arm be installed?
Park the motor before removing the old arm and mark the blade position on the glass. Fit the replacement without forcing it onto a damaged shaft. Set the resting position so the blade clears the glass edge and door hardware, then tighten the connection to the service-manual specification. Test the sweep on a wet windshield; running a dry blade can scratch the glass and overload the mechanism.
Not sure whether AT324282 matches your cab? Send SSC the machine model, serial number, and clear photos of the old arm and shaft through our contact page. Browse related service items under John Deere parts.
