FORKLIFT CARPET POLES | HAUGEN

FORKLIFT CARPET POLES | HAUGEN

Regular price $ 2,195.00 USD
Regular price $ 2,495.00 USD Sale price $ 2,195.00 USD
Shipping calculated at checkout.
Ask a Question

Description

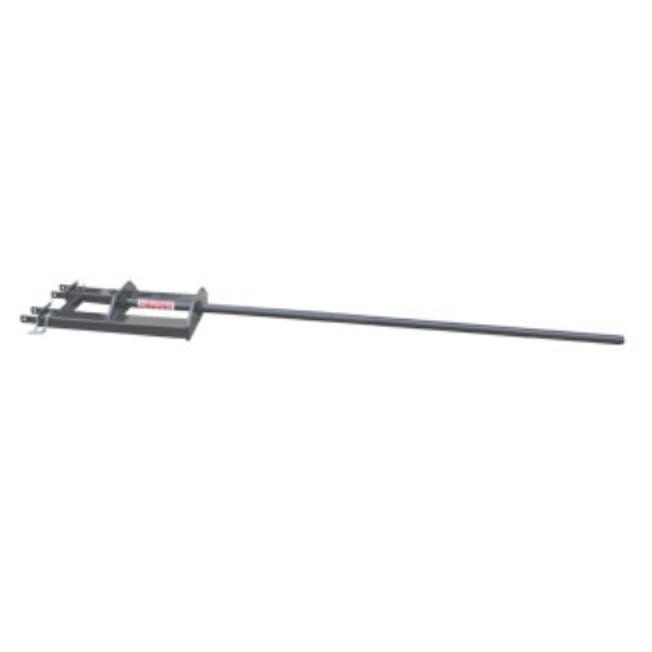

Fork Mounted Carpet Poles (Fork Slot)

  • Front mounted Fork Slot Carpet Poles
  • Pole diameters available in 2.5", 2.75" and 3"
  • Fork Pockets are 48" deep and will fit tines up to 2.5" thick x 6.5" wide
  • Stress Proof or Fatigue Proof poles
  • Available in 6', 9' and 10' lengths

Fork Mounted Carpet Pole "Low Rider"

  • Below the Fork Style
  • Pole is carried 18" below the fork pockets
  • Pole diameters available in 2.5", 2.75" and 3"
  • The fork pockets are 18" deep and will fit tines up 2.25" thick and 6.25" wide
  • Stress Relieved Poles
  • Available in 6', 9', 10'6" and 12' lengths
  • Heavy Duty Back Plates
  • Rounded Tips

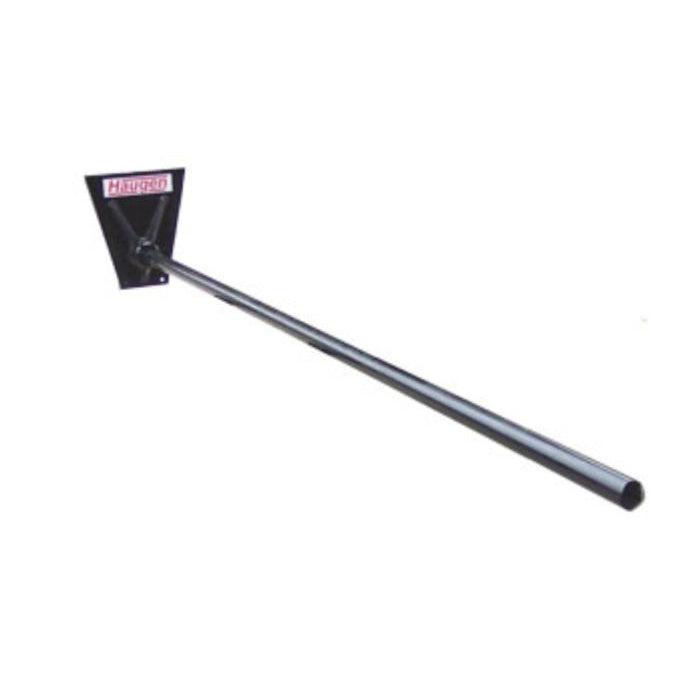

Carriage Mounted Class 2

  • Pole diameter is 2.5", 2.75" or 3.0"
  • Bolt-on replaceable clips
  • Replaceable poles, held by set screws
  • Stress Relieved Poles
  • Available in 6', 9', 10'6" and 12' lengths
  • Heavy Duty Back Plates
  • Rounded Tips
  • Class 2 carriage mount

Carriage Mounted Class 3

  • Pole diameter is 2.5" or 3.0"
  • Bolt-on replaceable clips
  • Replaceable poles, held by set screws
  • Stress Relieved Poles
  • Available in 6', 9', 10'6" and 12' lengths
  • Heavy Duty Back Plates
  • Rounded Tips

                          Specification

                          Fork Mounted Carpet Poles

                          Model Pole Diameter
                          Pole Length
                          Pole Material
                          Pole Tip
                          1/2 Pole Length
                          Total Cap (PLF)
                          MFCP 72-25
                          2.50"
                          6'
                          Stress Relieved
                          1500
                          3000
                          500
                          MFCP 108-25
                          2.50"
                          9'
                          Stress Relieved
                          950
                          1900
                          210
                          MFCP 120-25
                          2.50"
                          10'
                          Stress Relieved
                          800
                          1600
                          150
                          MFCP 72-30
                          3.00"
                          6'
                          Stress Relieved
                          2600
                          5200
                          860
                          MFCP 108-30
                          3.00"
                          9'
                          Stress Relieved
                          1700
                          3400
                          370
                          MFCP 120-30
                          3.00"
                          10'
                          Stress Relieved
                          1400 2800
                          270

                          Fork Mounted Carpet Pole "Low Rider"

                          Model Pole Diameter
                          Pole Length
                          Pole Material
                          Pole Tip
                          1/2 Pole Length
                          Total Cap (PLF)
                          MUCP 72-25
                          2.50"
                          6'
                          Stress Relieved
                          1500
                          3000
                          500
                          MUCP 126-25
                          2.50"
                          10'6"
                          Stress Relieved
                          800
                          1600
                          150
                          MUCP 144-25
                          2.50"
                          12'
                          Stress Relieved
                          700
                          1400
                          110
                          MUCP 72-30
                          3.00"
                          6'
                          Stress Relieved
                          2600
                          5200
                          860
                          MUCP 120-30
                          3.00"
                          10'6"
                          Stress Relieved
                          1400
                          2800
                          270
                          MUCP 144-30
                          3.00"
                          12'
                          Stress Relieved
                          1200 2400
                          200

                          Carriage Mounted Class 2

                          Model Pole Diameter
                          Pole Length
                          Pole Material
                          Pole Tip
                          1/2 Pole Length
                          Total Cap (PLF)
                          MCP 72-25 C2
                          2.50"
                          6'
                          Stress Relieved
                          1500
                          3000
                          500
                          MCP 108-25 C2
                          2.50"
                          9'
                          Stress Relieved
                          950
                          1900
                          210
                          MCP 126-25 C2
                          2.50"
                          10'6"
                          Stress Relieved
                          800
                          1600
                          150
                          MCP 144-25 C2
                          2.50"
                          12'
                          Stress Relieved
                          700
                          1400
                          110







                          MCP 72-30 C2
                          3.00"
                          6'
                          Stress Relieved
                          2600

                          5200

                          860
                          MCP 108-30 C2
                          3.00" 9'
                          Stress Relieved
                          1700
                          3400
                          370
                          MCP 126-30 C2
                          3.00"
                          10'6"
                          Stress Relieved
                          1400
                          2800
                          270
                          MCP 144-30 C2
                          3.00" 12' Stress Relieved
                          1200 2400
                          200

                          Carriage Mounted Class 3

                          Model Pole Diameter
                          Pole Length
                          Pole Material
                          Pole Tip
                          1/2 Pole Length
                          Total Cap (PLF)
                          MCP 72-25 C3
                          2.50"
                          6'
                          Stress Relieved
                          1500
                          3000
                          500
                          MCP 108-25 C3
                          2.50"
                          9'
                          Stress Relieved
                          950
                          1900
                          210
                          MCP 126-25 C3
                          2.50"
                          10'6"
                          Stress Relieved
                          800
                          1600
                          150
                          MCP 144-25 C3
                          2.50"
                          12'
                          Stress Relieved
                          700 1400 140







                          MCP 72-30 C3
                          3.00"
                          6'
                          Stress Relieved
                          2600

                          5200

                          860
                          MCP 108-30 C3
                          3.00"
                          9' Stress Relieved
                          1700 3400
                          370
                          MCP 126-30 C3
                          3.00" 10'6"
                          Stress Relieved
                          1400 2800
                          270
                          MCP 144-30 C3
                          3.00"
                          12'
                          Stress Relieved
                          1200 2400
                          200
