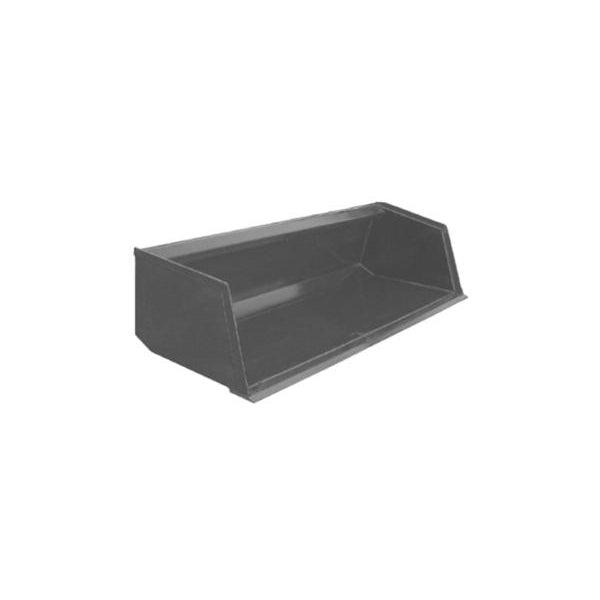

SKID STEER UTILITY BUCKET | HAUGEN

Product price
$ 2,933.00

Shipping options and cost are shown at checkout.

Configure your Haugen utility bucket

Cutting edges and tooth bars are limited to the selected bucket width. The grapple is shown only for supported 72–84 in. variants.

0 selected

Adds a reversible bolt-on wear edge matched to the bucket width.

SKID STEER BOLT-ON CUTTING EDGE | HAUGEN

Choose the version that matches a weld-on or bolt-on bucket edge. Available for 72–84 in. buckets.

SKID STEER BOLT-ON TOOTH BAR | HAUGEN

Haugen states this grapple fits most skid-steer buckets from 59–84 in. Confirm bucket geometry before ordering.

SKID STEER BOLT-ON GRAPPLE | HAUGEN
Configured total Includes selected accessories
Product price
$ 2,933.00

Shipping options and cost are shown at checkout.

Configure your Haugen utility bucket

Cutting edges and tooth bars are limited to the selected bucket width. The grapple is shown only for supported 72–84 in. variants.

0 selected

Adds a reversible bolt-on wear edge matched to the bucket width.

SKID STEER BOLT-ON CUTTING EDGE | HAUGEN

Choose the version that matches a weld-on or bolt-on bucket edge. Available for 72–84 in. buckets.

SKID STEER BOLT-ON TOOTH BAR | HAUGEN

Haugen states this grapple fits most skid-steer buckets from 59–84 in. Confirm bucket geometry before ordering.

SKID STEER BOLT-ON GRAPPLE | HAUGEN
Configured total Includes selected accessories
LTL Freight Shipping Estimate
Delivery to your area. Get it as soon as loading...

Product Description

Features

Our Utility/Fertilizer buckets are built with square sides to increase capacity.

Features  Heavy Duty Series

  • 1/2" x 3" wear bars on the bottom of the buckets for wear and superior strength.
  • 1/4"  bucket wrapper and side plates with an extra gusset on the leading edge
  • 3/4" x 6 high carbon edge drilled to accept and Bolt-on Edge
  • Heavy Duty full skid-steer quick attach plate.
  • Built in Step
Model Bucket Height
Inside Depth
Bucket Width
Heaped Capacity
Weight
MHUB 72
24"
36"
72"
25.75 cu. ft.
750 lbs
MHUB 78
24"
36"
78"
28.00 cu. ft.
780 lbs
MHUB 84
24"
36"
84"
30.25 cu. ft.
810 lbs
MHUB 90
24"
36"
90"
32.50 cu. ft.
840 lbs
MHUB 96
24"
36"
96"
34.75 cu. ft.
870 lbs
