Product Description

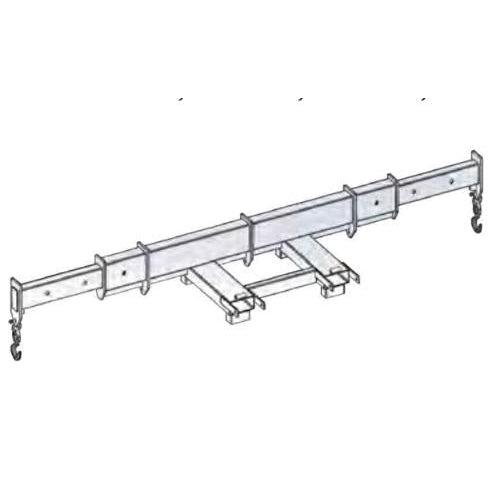

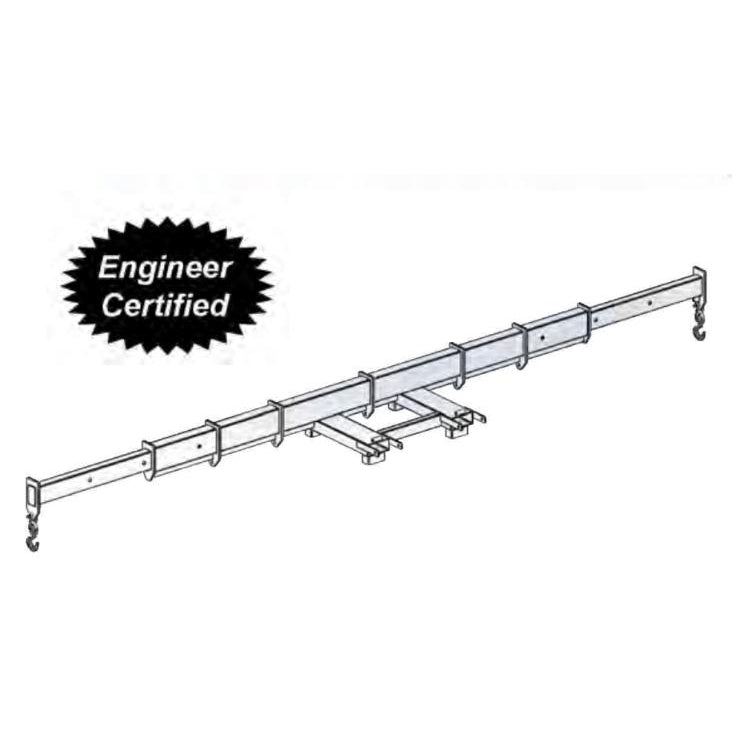

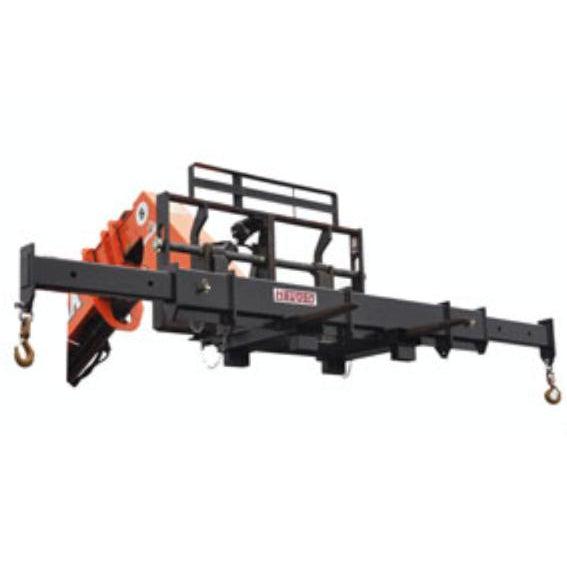

Haugen Adjustable Spreader Bar for Telehandlers
Turn telehandler or forklift tines into a stable, adjustable two-point lifting setup with Haugen's fork-mounted spreader bar. Three lengths cover 8–12, 10–15, and 13–20 feet, giving crews room to match the pick points on long or wide loads rather than forcing every lift through one fixed span.
The fork pockets hold the bar at a 24-inch load center and accept tines up to 3.5 inches thick by 7.5 inches wide. A retaining pin secures the attachment behind each fork. Two 5-ton swivel hooks are standard; capacity changes as the hooks move outward, so the rating for the selected spread must govern the lift.
Choose the working range
| Model | Adjustable range | Attachment weight | Center rating |
|---|---|---|---|
| MASPR 812 | 8–12 ft | 580 lb | 10,000 lb |
| MASPR 1015 | 10–15 ft | 685 lb | 10,000 lb |
| MASPR 1320 | 13–20 ft | 875 lb | 10,000 lb |
The longest position is not rated for the same load as the center. MASPR 812 steps down to 6,000 pounds total at 145.88 inches. MASPR 1015 steps down to 6,000 pounds total at 180 inches. MASPR 1320 steps down to 4,500 pounds total at 240 inches. Follow the capacity label on the attachment for every intermediate position.
What arrives with the bar
- Haugen adjustable fork-mounted spreader bar in the selected length.
- Two 5-ton swivel hooks and the supplied shackles.
- Chained fork-retainer pins and security clips.
- Capacity labeling for the model and hook positions.
A third swivel hook is optional. One supplied hook can be moved to the center position, but a load must never hang from only one outside hook. Use the center position, both outside hooks, or the approved three-hook arrangement. Do not side-load the bar or use it to pull a load.
Machine and lift planning
The spreader-bar rating does not raise the host machine's capacity. Add the attachment, rigging, and load weights, then remain within the telehandler or forklift load chart at the actual boom extension, height, and load center. The operator must be trained for the host machine and should inspect the bar, pins, hooks, shackles, latches, welds, and labels before each use.
Looking for another lifting attachment? Browse telehandler material-handling attachments or the wider Haugen attachment collection.
Frequently asked questions
Can this bar be used on a straight-mast forklift?
Yes, Haugen lists these models for telehandlers, straight-mast forklifts, and industrial lift trucks, provided the forks fit the pockets and the host machine's load chart supports the planned lift.
Is 10,000 pounds available at every spread?
No. Ratings decrease at wider hook positions. Read the model-specific capacity label before lifting.
Can I carry the load from one outside hook?
No. Haugen calls for the center hook, both outside hooks, or an approved three-hook arrangement. Never use a single outside hook.
