Product Description

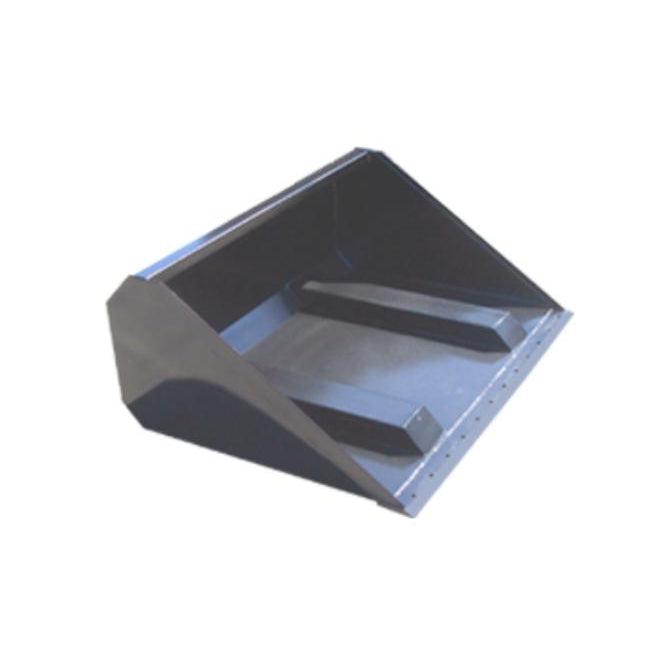

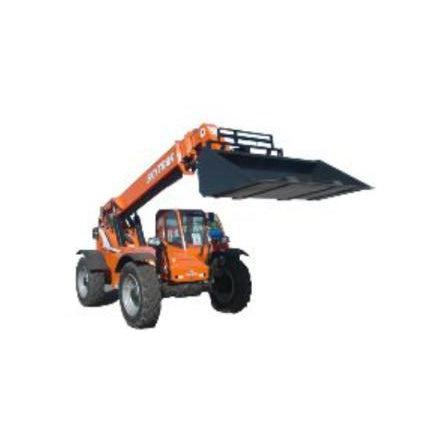

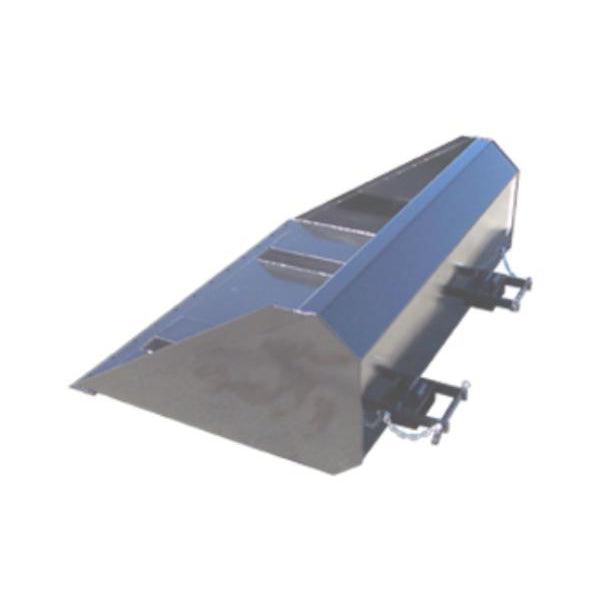

Haugen Telehandler Fork Slot Bucket
Turn telehandler forks into a cleanup bucket without changing to a dedicated quick-attach carriage. The Haugen fork slot bucket slips over the fork tines and is held by heavy-duty 1 in. diameter keeper pins. It is built for light material, trash, and general site cleanup.
Choose from standard-profile buckets in 60, 72, 96, and 108 in. widths or high-capacity 72 and 96 in. models. Every model uses a high-carbon 3/4 x 6 in. cutting edge. The optional Shurlock package adds two chains and two hooks to the selected bucket.
Standard-profile models
| Model | Height | Inside depth | Width | Struck capacity | Weight |
|---|---|---|---|---|---|
| MFSB 60 | 28.0 in. | 52.0 in. | 60 in. | 1.00 cu. yd. | 630 lb |
| MFSB 72 | 28.0 in. | 52.0 in. | 72 in. | 1.20 cu. yd. | 675 lb |
| MFSB 96 | 28.0 in. | 52.0 in. | 96 in. | 1.60 cu. yd. | 850 lb |
| MFSB 108 | 28.0 in. | 52.0 in. | 108 in. | 1.80 cu. yd. | 920 lb |
High-capacity models
| Model | Height | Inside depth | Width | Struck capacity | Weight |
|---|---|---|---|---|---|
| MFSB-48H-72 | 38.5 in. | 52.0 in. | 72 in. | 1.6 cu. yd. | 750 lb |
| MFSB-48H-96 | 38.5 in. | 52.0 in. | 96 in. | 2.2 cu. yd. | 925 lb |
Capacity figures are struck capacities. Material density, load center, boom extension, lift height, tire condition, and machine setup all affect the carrier's allowable load. Check the telehandler load chart with the bucket and material weight before use.
What to verify before ordering
- Measure the fork tine width, thickness, length, and spacing.
- Confirm the carrier's rated capacity at the planned boom position.
- Choose the bucket width and struck capacity for the intended light material.
- Select the Shurlock chain and hook option if it is required for the site's retention procedure.
- Check the work area for overhead clearance, travel clearance, and stable ground.
A wide bucket may fit the forks but still be too large for the machine, route, or material. Do not judge compatibility from fork spacing alone.
Operating notes
Read the Haugen instructions and the carrier manual before installation. Slide both fork tines fully into the bucket pockets, install the 1 in. keeper pins in their specified positions, and complete the retention check before lifting. Keep people clear of the raised attachment and never exceed the telehandler load chart.
This bucket is intended for light material, trash, and jobsite cleanup. Dense soil, wet material, demolition debris, or other heavy loads can reach the machine limit before the bucket looks full.
Frequently asked questions
What is the difference between the standard and high-capacity models?
Standard models are 28.0 in. high. The MFSB-48H models are 38.5 in. high and provide more struck capacity in the available 72 and 96 in. widths.
Does the bucket replace the telehandler carriage?
No. It slips over the existing fork tines and uses keeper pins to retain the bucket.
What details should I send SSC for selection help?
Send the telehandler make and model, fork measurements, planned material, preferred width, required capacity, and photos through the SSC contact page.
