Product Description

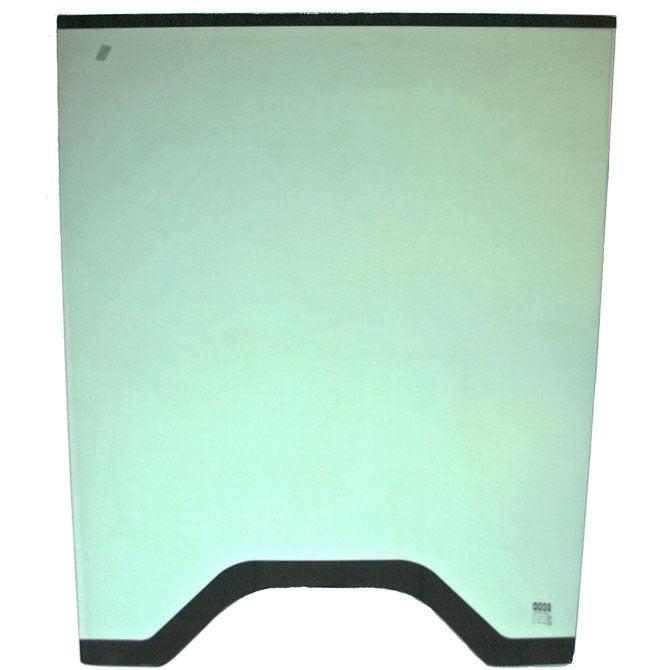

Komatsu Wheel Loader Front Center Glass 419-926-5541
Replace the front-center cab glass on a compatible Komatsu WA-Series wheel loader with this aftermarket panel for OEM reference 419-926-5541. The SSC SKU is D419-926-5541.
This is a large, shaped panel that ships in a protective crate. SSC records a 38 in. length, 45 in. height, 16 in. crated profile or box width, and an approximate product weight of 37 lb. Use the part number, machine serial range, and panel shape as the primary fitment checks.
Model and serial coverage
| Model | Listed serial range |
|---|---|
| WA200-8 | H80051-up or 85001-up |
| WA270-7 | A27001-up, 80001-up, or H01051-up |
| WA270-8 | A28001-up or 83001-up |
| WA320-7 | A36001-up, 80001-up, or H01051-up |
| WA320-8 | A38001-up or 85001-up |
Applications can change within a model run. Confirm the serial number and 419-926-5541 in the Komatsu parts record before placing the order.
Pre-order checks
- Confirm that the panel is the front-center cab glass, not a side or door window.
- Read the complete WA model and serial number from the machine plate.
- Compare the panel outline, curvature, edges, and any mounting features with the existing glass.
- Determine whether seals, trim, adhesive, or retaining hardware must be sourced separately.
The 16 in. value is the catalog's box or crated-profile width, not a flat panel width. Do not rely on that value alone when identifying the glass.
Freight and installation
This panel requires crate shipping. Inspect the crate and glass before accepting delivery, note visible damage on the carrier receipt, and take photos before moving the shipment. Store the panel upright with protected edges until installation.
Follow the Komatsu service procedure for removal, seal preparation, and installation. Cab frames that are bent, corroded, or carrying old adhesive can prevent a new panel from seating correctly; correct the underlying condition before fitting the glass.
Frequently asked questions
Does this fit both WA270-7 and WA270-8 loaders?
It is listed for both series within the serial ranges above. Confirm the machine serial and OEM reference before checkout.
Is the shipping crate included in the product dimensions?
The catalog identifies 16 in. as the box or crated-profile width. The principal recorded glass dimensions are 38 in. long and 45 in. high.
Can SSC review my fitment?
Yes. Send the model, serial number, part reference, panel photos, and measurements through the SSC contact page.
Confirm fitment before ordering
A machine model listed on this page does not, by itself, guarantee fitment. Before ordering, use your machine serial number to confirm the required OEM part number through the manufacturer or dealer, the applicable owner's or parts manual, or an authoritative OEM parts catalog. Match that OEM number and the existing door or window configuration to this listing.
If SSC correctly ships the item, SKU, and variant you selected, but the selection is not correct for your machine, the order is not eligible for return, exchange, refund, or credit, and SSC will not cover any costs to correct the selection. If SSC ships a different item than you ordered, we will make it right at our expense.
If you are uncertain, contact SSC before ordering with the machine make, model, serial number, current OEM part number if available, and clear photos. Review our Returns and Refunds Policy.
