CASE CAB ENCLOSURE | PRO-SERIES | 40XT-95XT MODELS
Shipping Rates & Policies
Standard Shipping
- Most items ship parcel post via UPS, but not always
- Most items ship within 2 days, but not always
- Shipping costs calculated at checkout based on your location
Tip: Log in for more accurate shipping estimates using your saved address.
The delivery date is for reference only and may be adjusted according to the delivery address. Please refer to the actual delivery time.
Product Description

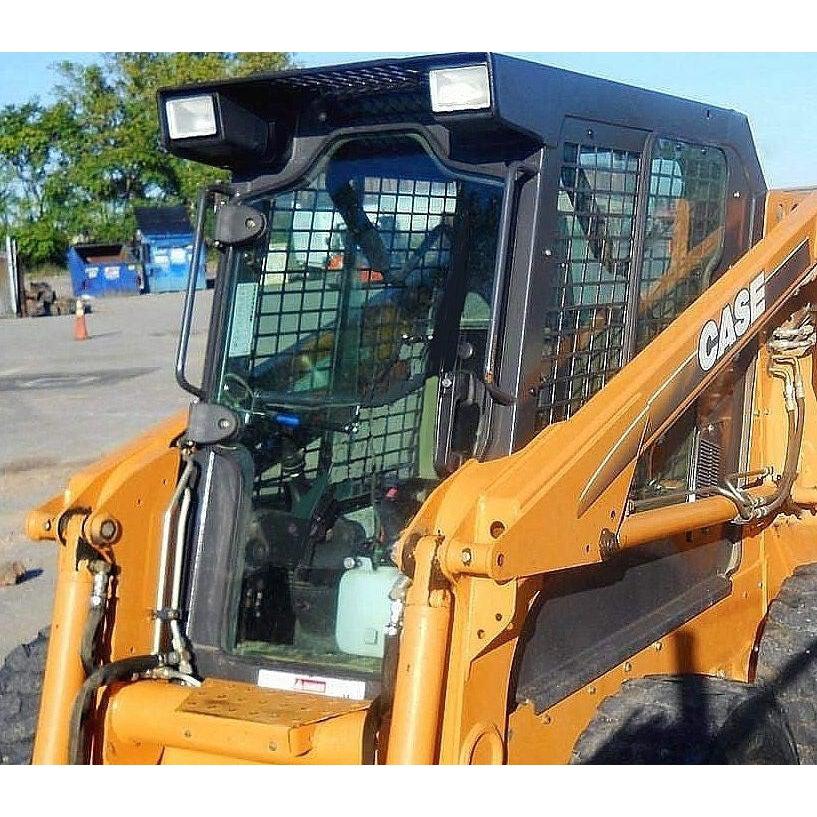

Case 40XT-95XT Pro-Series Cab Enclosure Kit
Upgrade open Case 40XT-95XT machines into more usable, weather-ready operator stations with an SSC Pro-Series enclosure kit. Choose the Door Only Kit when you need the front polycarbonate door and mounting hardware, or choose Door + Side Windows when you want the front door plus matching side windows for fuller coverage.
This listing is for the machine family shown below. If your cab has been modified, if it already has OEM door hardware, or if you are unsure which model or series you have, contact us before ordering so we can help verify the correct kit.
Why operators choose this kit
- Impact-resistant front door: 1/2 in Lexan polycarbonate is built for brush, debris, weather, and demanding jobsites while maintaining clear forward visibility.
- Weather-ready cab coverage: bulb-seal gasket, latch hardware, striker, and threshold components help close the operator station against wind, rain, snow, dust, and jobsite debris.
- Configured to your machine: select the kit and fitment options that match the cab layout before adding the enclosure to your cart.
- Complete hardware package: the selected kit includes the door hardware, lockable handle, coded keys, hinges, latch/release components, interior pull handle, striker hardware, seals, thresholds, and required fasteners.
Fitment
Designed for Case 40XT-95XT. Confirm your model and option selections before ordering.
- Case 40 / 60 / 70 XT.
- Case 75 / 80 / 85 / 90 / 95 XT.
Choose the correct options
- Case Model: 40XT, 60XT, 70XT, 75XT, 80XT, 85XT, 90XT, 95XT.
What is included
- One formed 1/2 in Lexan polycarbonate front door panel cut for this machine group.
- 1/2 in bulb-seal gasket for the front door perimeter.
- High-impact exterior handle with tumbler lock and coded keys.
- Locking latch, spring-loaded release handle, stainless interior pull handle, striker bolt/plate, and universal male/female hinge hardware.
- Thresholds, mounting hardware, seals, and fasteners required for the selected kit.
- Door + Side Windows only: stationary 1/8 in polycarbonate side windows with neoprene gasket/seal hardware. The side panels can be unbolted for warm-weather operation.
Top and rear windows are not included with the standard Door Only Kit or Door + Side Windows option.
Installation notes
- This is an aftermarket retrofit enclosure, not an OEM replacement door system.
- It is not designed to reuse OEM door sensors, OEM door frames, or existing OEM door hardware unless the selected product option specifically calls for that factory frame/hinge setup.
- Prior door, frame, hinge, threshold, or aftermarket components may need to be removed before installation.
- Plan on aligning the supplied hinges, latch, striker plate, seals, and thresholds during install. Cab condition and previous hardware determine whether drilling, tapping, or additional bolting is needed.
- Most installs can be completed in about 1-2 hours with basic tools once the cab is prepared and the parts are laid out.
For a general setup sequence, fitment preparation, hinge/latch alignment steps, seal checks, and final inspection points, review our Pro-Series Cab Enclosure Installation Guide before installation.
Warranty coverage
The Lexan polycarbonate front door is covered by our limited lifetime breakage warranty for the original owner during normal, non-abusive operation. If the covered polycarbonate door panel breaks under those conditions, the warranty provides one replacement panel. Hardware and optional equipment are covered for 3 months. Warranty terms, misuse exclusions, installation damage, wear items, and return conditions apply.
Frequently asked questions
Which machines does this Pro-Series enclosure fit?
This listing is built for Case 40XT-95XT. Review the fitment list and any model-group selectors on the page before ordering, because cab layout and prior hardware can affect fit.
Should I order Door Only or Door + Side Windows?
Choose Door Only Kit when you only need the front polycarbonate door and mounting hardware. Choose Door + Side Windows when you want the front door plus the matching side panels or side windows offered for this machine group.
What should I verify before ordering?
Use the product options above to match the exact machine setup. Current grouped options include Case Model: 40XT, 60XT, 70XT, 75XT, 80XT, 85XT, 90XT, 95XT. If the plate, cab layout, or previous hardware does not clearly match one of these choices, contact SSC before checkout.
How do I choose the correct Case XT model option?
Select the Case model option that matches the model plate on your machine. The 40XT through 95XT options keep the kit grouped while still routing the order to the correct fitment.
Can I add accessories with this enclosure?
Yes. The recommended add-ons below match the optional accessory paths commonly ordered with Pro-Series kits, including cab heat, wipers, lighting, seat comfort, and rear visibility. Select add-ons before checkout when you want them included with the order.
What warranty coverage applies?
The Lexan polycarbonate front door is covered by SSC's limited lifetime breakage warranty for the original owner during normal, non-abusive operation. Hardware and optional equipment are covered for 3 months. Warranty terms and exclusions apply.
Recommended add-ons
These are the same optional accessories available with this Pro-Series kit. Select them before adding the enclosure to your cart when you want them included with the order.
- 12 Volt Cab Heater for cold-weather cab comfort.
- Electric Wiper Kit for added visibility in rain, snow, and spray.
- LED Light Bar for improved jobsite visibility in low-light conditions.
- Seat Warmer Kit for added operator comfort in cold weather.
- CM-40 Skid Steer Backup Camera for improved rear visibility around equipment, attachments, and tight work areas.
Review our Terms of Sale / Return Policy before ordering.
People Who Bought This Item Also Bought
Questions & Answers
Have a Question?
-
How well does the Poly Carbon Glass clean without scratching?
Hello! As long as you don't use harsh or abrasive cleaning chemicals on it you won't have any issues with scratching from cleaning.
-
How much for door kit
Good morning! Our door-only kits for Case machines are currently $1,449 for the door-only kit and $1,699 for both the door and side windows! To get an extra 10% off today use code End Of Year 2021 at checkout! If you have any more questions or need help placing your order call us directly at 240-301-1225!
Thanks!
Nathan -
I have a 2016 Case TR270 that does not have hinges on cab frame Will your door and hardware accommodate this situation
Hi! Thanks for checking in with us! Yes, this cab kit will work for your machine! It comes with hinges, door handle, seal, and all hardware/tools you will need to install! Please note that you may have to drill new holes on your machine to mount it!
-
Do you have a door kit for a 465
We do not make a door or enclosure for a case 465 at this time.
-
Do you have a door for a case 435
We are not making a door for a Case 435 skid steer at this time.
-
Can you order just the replacement door. I have all the other parts just need the actual door. I have a 2003 case 70 xt
Hi! The doors we make and sell are aftermarket, and are not the same as factory doors. Ours are made using 1/2 inch thick poly-carbonate plastic, and do not use a metal frame like your factory door. So, we do not sell any factory replacement glass or hardware. Instead, we offer a whole kit that comes with everything you need to replace your factory door with our door, including door handles, latches, keys, hinges, hinge bases, gaskets, etc.
-
Is there a kit that fits the 450ct? Thanks
Hi Andrew - yes sir, we do make a kit for your Case 450CT loader. I see that it wasn't on our product model list on the website - just fixed that, so it is there now. Thanks for checking in and don't hesitate to call with any questions.
-
Is there more to the kit for some Case models? I have a 90XT, and can not tell by just the pictures how it seals up at the top corners where gauges and key is located. Thank you
Hi - yes, some models require custom upper and / or lower thresholds. These are manufactured using the same material (poly-carbonate plastic) but using a different thickness (roughly 1/4 inch). They are cut and formed as needed to provide closures for open areas on some machines, such as your Case 90XT. These thresholds are clear so you can see through them (optimizing visibility), and have similar weather gaskets around the perimeter to help with weather sealing.
Thanks,
Brian -
Do the side windows slide open for warm weather, or are they solid full time? Along with that question my machine is a case 430, does the door slide off of the hinges to open the cab back up in seconds, or much longer and detailed removal? What is availability?
Hi,
The side windows do NOT slide open, they are stationary and can be removed in the warmer seasons if desired (takes about 10 mins to remove).
For your Case 430, the front door will slide right off the hinges quickly (1 man can do it), it is fast and simple - no tools required.
We have your kit in stock and ready to ship, you'd have it in a week or so after ordering.
Thanks!
Brian DeVore -
Which enclosure do I need for my Case 1845c? I'm a 100 percent VA disabled vet. I use my skid to clear my driveway since I can't shovel. Thanks.
Good morning!
Thanks for reaching out! You would want the 1845C kit for your machine, here is a link to it on our site. We do actually require you submit a picture of your Case because there are some minor variations between submodels, so you can email that to me here, or text it to our work cell at 240-301-1225!
I can also give you a discount for being a vet, you can use code "Military-Discount-7-Off" to get 7% off at checkout! let me know if you have any more questions or I can do anything else to help you out.
Thanks!Nathan
-
for your Door only kit, Does that included all the necessary parts for mounting it? Lower forward plates, handle,rubber seal. Or is that just the door?
Morning Rob!
The door only kit comes with all the hardware you need to mount the door, the only thing it doesn't have are the side windows! Let me know if you have any more questions.
Thanks,
Nathan -
I have a 2007 case 410, I’m having troubles finding out which series it is, do you have a vin breakdown to determine which one it is?
Hi!
You can send us a picture of your machine and we can tell you which one it is. We actually always request a picture, so even if you already new we would have reached out!
Thanks,
Nathan
