Product Description

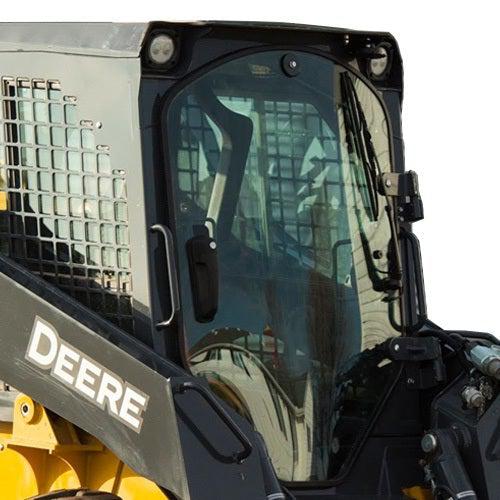

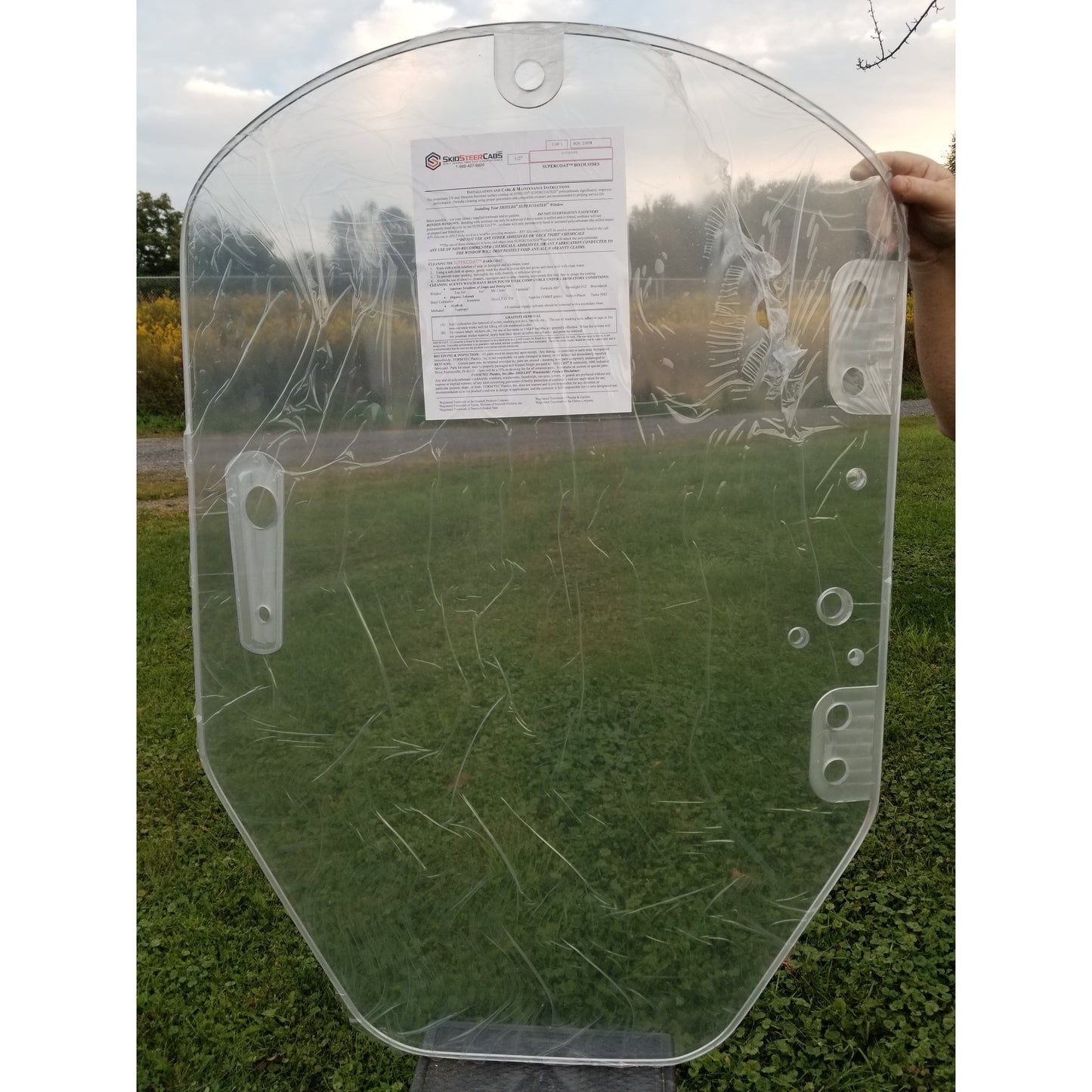

Polycarbonate Door for John Deere G-Series Loaders
This coated polycarbonate panel replaces the factory door glass on select John Deere G-Series skid steers and compact track loaders. The correct configuration depends on the machine frame, model year, and OEM glass number.
Choose by OEM glass number
- T344818: listed for 2019 and older 320G, 324G, 325G, 330G, 331G, 332G, and 333G machines
- T344819: listed for 2020 and newer 320G, 324G, 325G, 330G, 331G, 332G, and 333G machines
- T361540: listed for small-frame 312GR, 314GR, 316GR, 317GR, and 318GR machines
Model year is a useful guide, not a substitute for the part number. Ask a John Deere dealer to look up the door glass from the machine serial number when you cannot confirm the OEM number.
Thickness options
Each OEM configuration is offered in 1/4-, 3/8-, and 1/2-inch clear polycarbonate. Select the part-number configuration first, then choose the thickness that fits your operating needs and hardware setup.
What is included

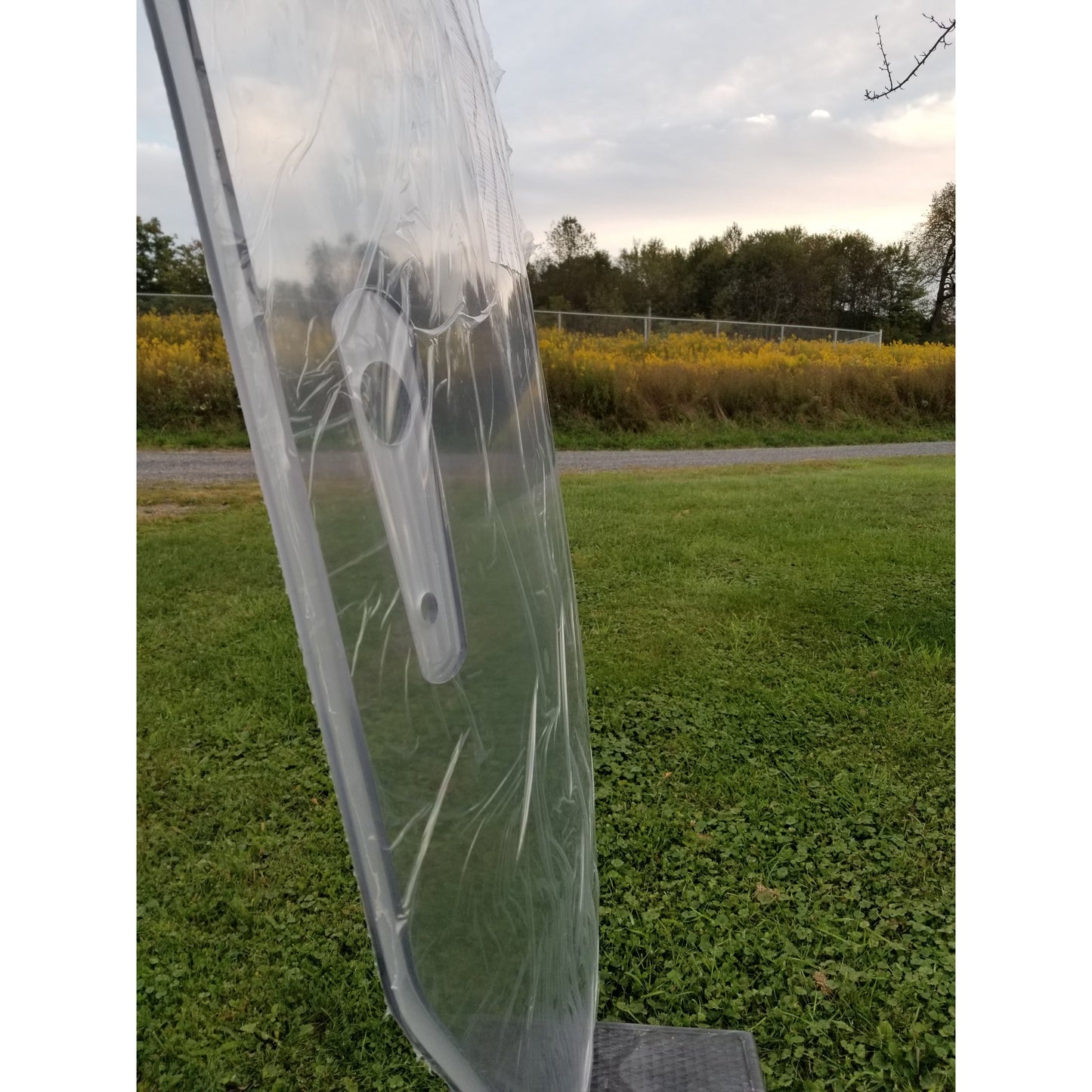

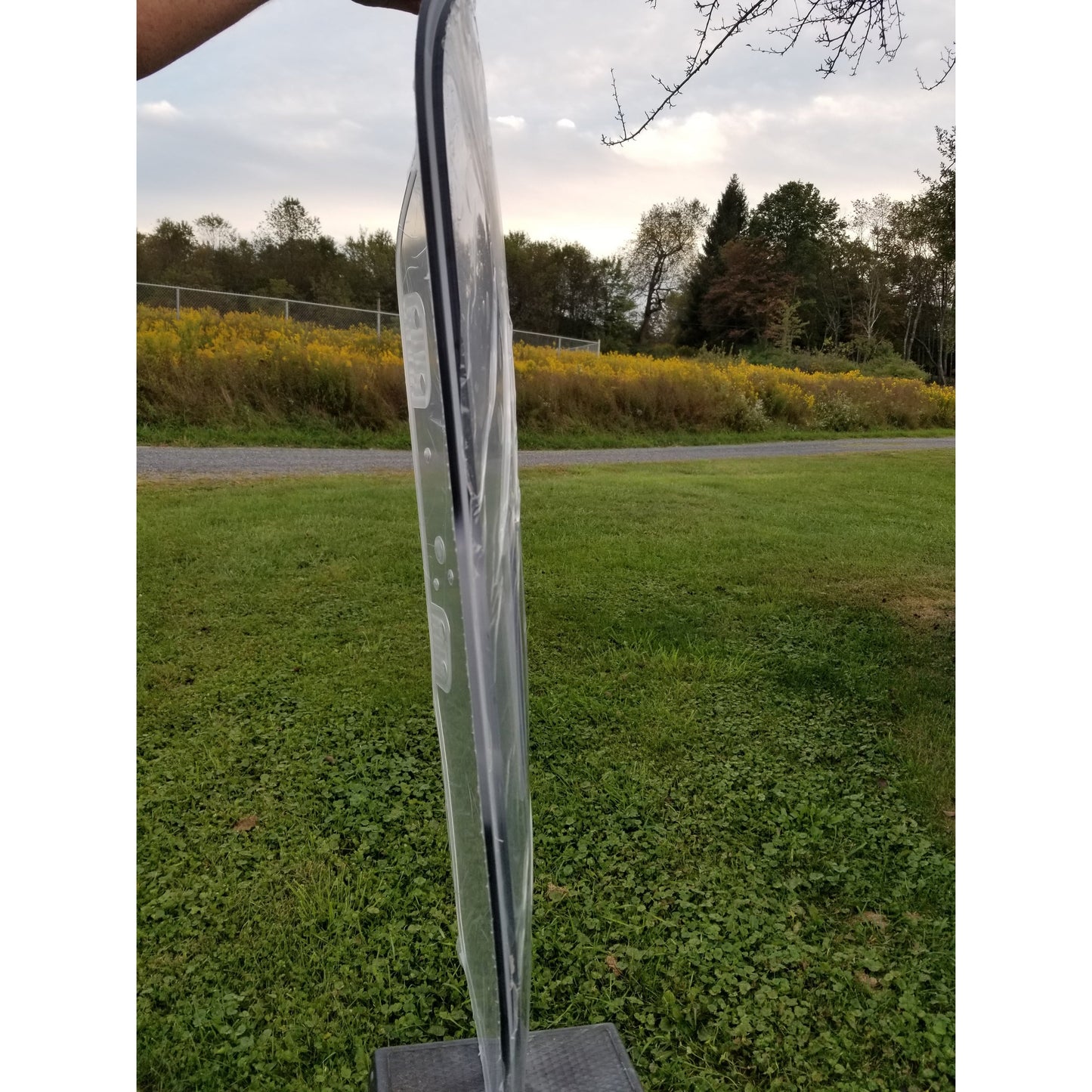

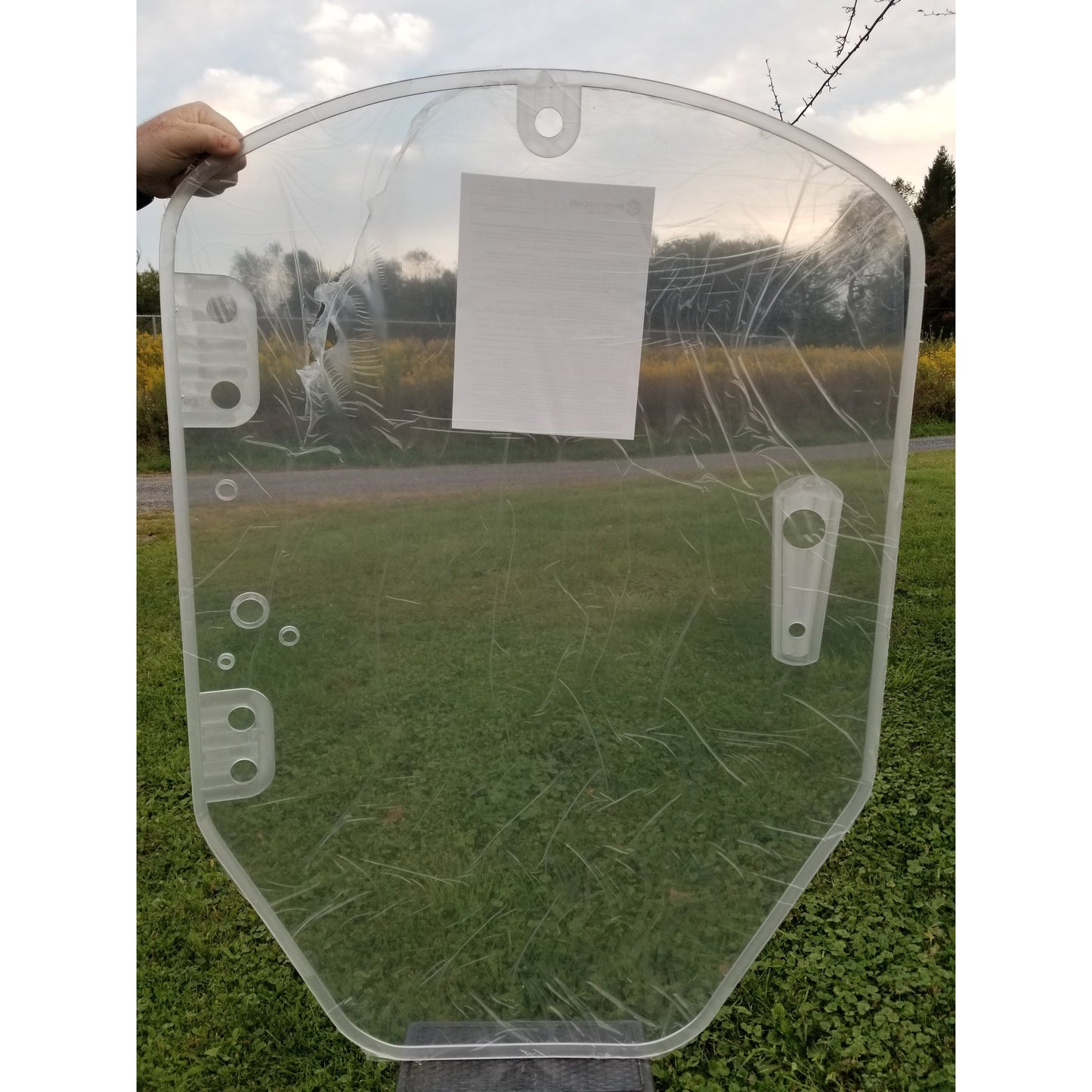

- Clear polycarbonate panel formed for the selected OEM opening

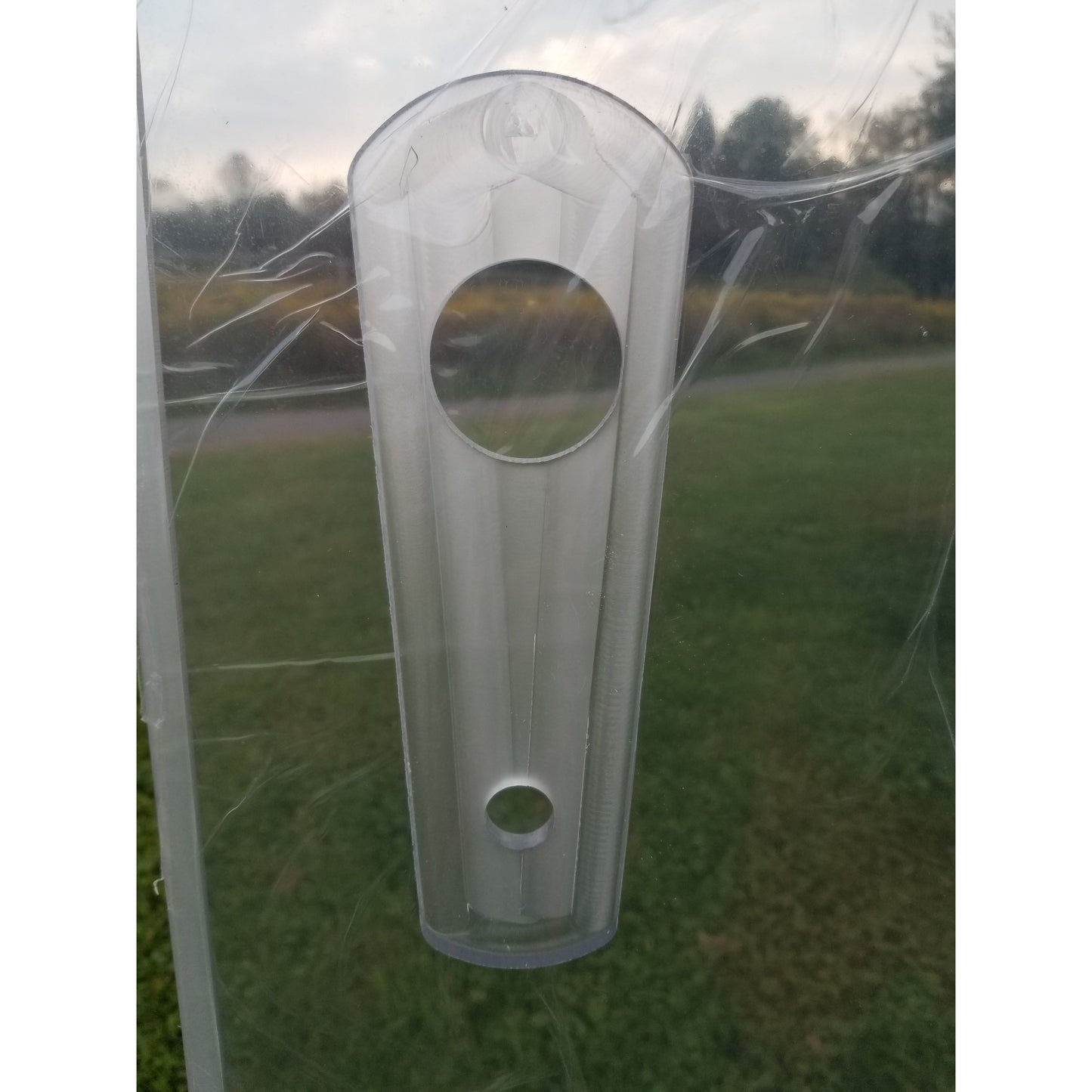

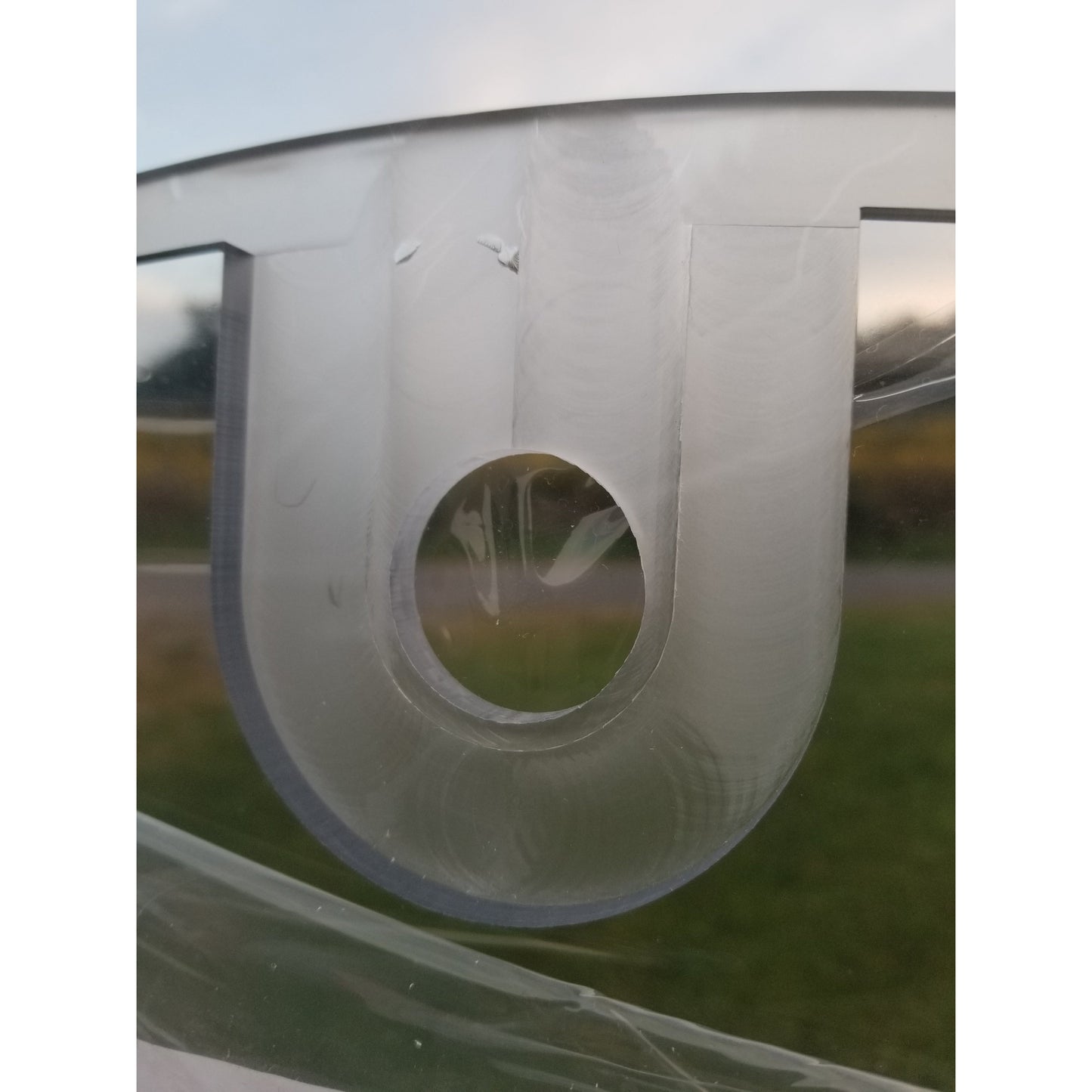

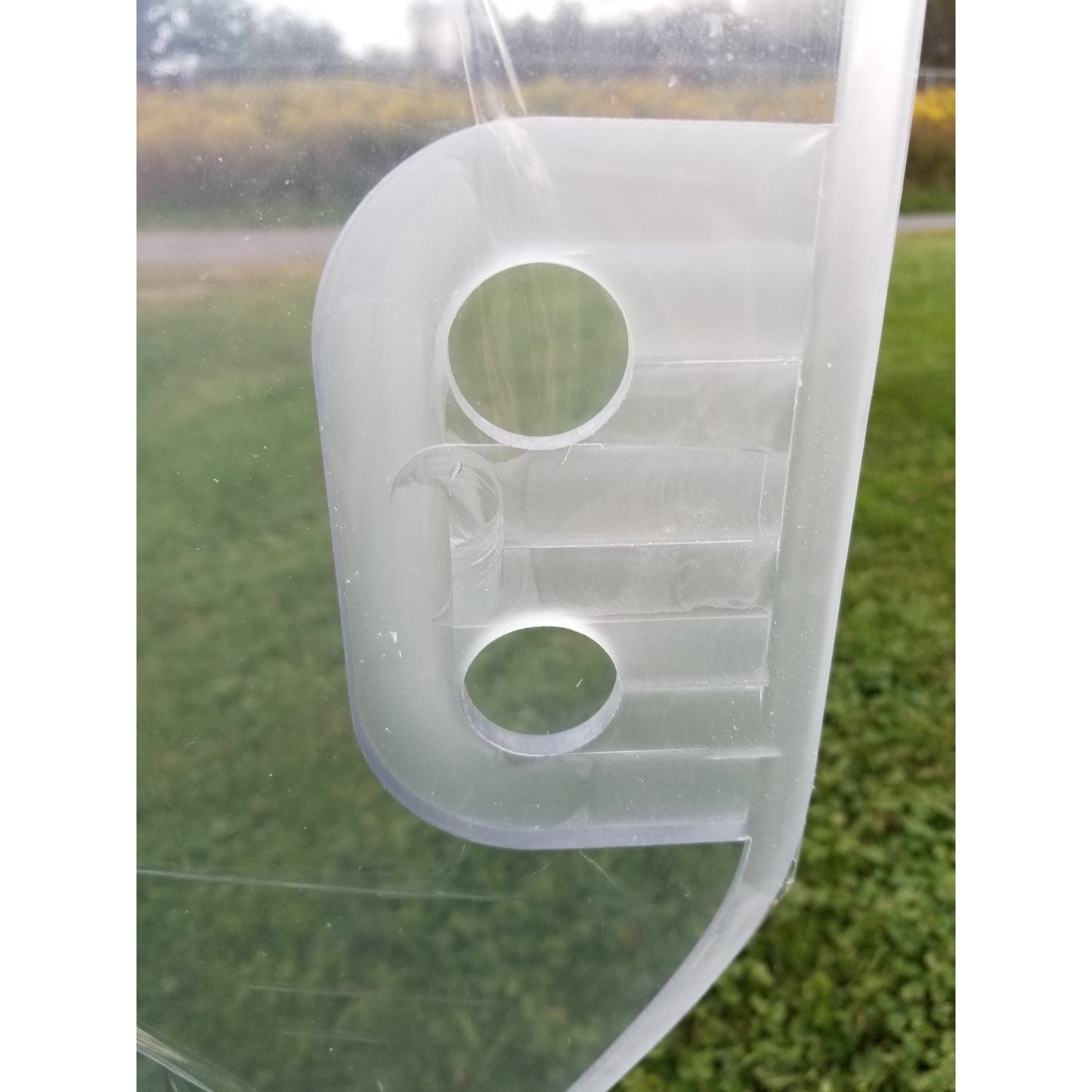

- Precision-cut mounting holes for the applicable factory hardware
- Abrasion-resistant coating on both sides
This product does not include the frame, hinges, latch, handle, seal, wiper parts, or mounting hardware. Those components must be transferred from the existing OEM door when serviceable. Longer fasteners may be needed when a 1/2-inch panel replaces thinner glass.
Before you order
- Confirm the machine model and frame size.
- Verify T344818, T344819, or T361540.
- Select 1/4-, 3/8-, or 1/2-inch polycarbonate.
- Inspect the existing seal and hardware.
- Confirm the current production estimate with SSC.
Does every G-Series machine use the same panel?
No. Mid/large-frame and small-frame machines use different glass, and the larger machines have a year-based part change. Order by the verified OEM number.
Is the weather seal included?
No. The listing is for the polycarbonate panel. Reuse the existing seal only if it is in serviceable condition.
Are the product photos exact for every option?
No. Some photos show representative panels. Use the selected OEM number, not the photo alone, to determine fitment.
Need a fitment check? Contact SSC with the model, year, serial number, OEM glass number, and photos of the mounting pattern.
Confirm fitment before ordering
A machine model listed on this page does not, by itself, guarantee fitment. Before ordering, use your machine serial number to confirm the required OEM part number through the manufacturer or dealer, the applicable owner's or parts manual, or an authoritative OEM parts catalog. Match that OEM number and the existing door or window configuration to this listing.
If SSC correctly ships the item, SKU, and variant you selected, but the selection is not correct for your machine, the order is not eligible for return, exchange, refund, or credit, and SSC will not cover any costs to correct the selection. If SSC ships a different item than you ordered, we will make it right at our expense.
If you are uncertain, contact SSC before ordering with the machine make, model, serial number, current OEM part number if available, and clear photos. Review our Returns and Refunds Policy.
People Who Bought This Item Also Bought
Questions & Answers
Have a Question?
-
My 325G front glass only has 2 holes on the LT side (sitting in the operator seat) where the glass attaches to the hinges. The photo's of this one have 2 each for each hinge not to mention the holes for the wiper assembly do not match. Is the photo a generic photo? I am showing a JD p/nT344818. Also does this come with the weather stripping?
Yes, the gallery uses representative images, so do not use the photo alone to identify mounting-hole or wiper fitment. For a 325G with OEM T344818, choose the T344818 option after confirming the number from the machine serial record. Weather seal, wiper components, hinges, latch, and other hardware are not included.
-
If I provide you a serial number can you tell me if you can make one for my 317G?
This listing identifies the small-frame option as 317GR with OEM T361540; it does not list a 317G. Do not order based on model name alone. Ask a John Deere dealer to confirm the OEM glass number from the machine serial number, then compare that number with the product options.
-
Needing a replacement door for a 2019 John Deere 331G. I don't see you listing a 331G? Can you provide a quote and specs?
The current listing includes 331G options for OEM T344818 (2019 and older) and T344819 (2020 and newer). Treat the year ranges as a guide and confirm the OEM glass number from the machine serial number before ordering. This listing is the panel only; frame, hinges, latch, seal, wiper parts, and mounting hardware are not included.
