Product Description
Eterra Raptor mower heads let you configure a Raptor Boom Mower for the vegetation you actually need to cut. Choose a clean-cutting sickle bar for fence lines, pond edges, and roadside trimming, a Sidewinder flail head for grass and medium brush, or a Cyclone rotary brush cutter head for heavier clearing work.
Choose The Right Raptor Head
- Raptor-mounted sickle bar heads are built for precise trimming with low debris scatter.

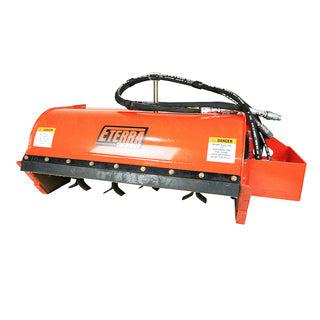

- The Sidewinder flail head gives the Raptor a compact 36 in. flail mower for grass, brambles, and medium to hard brush.

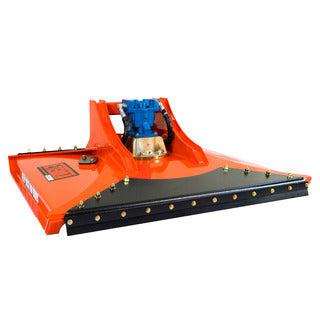

- The Cyclone rotary head gives the Raptor a 48 in. brush cutter for heavier material and rough clearing.
- All heads require a compatible Eterra Raptor Boom Mower system.
Sickle Bar Head Specifications
| Model | Head Weight | Cutter Length | Cutting Capacity | Aquatic Approved | Max Pressure | Teeth | Drive System |
|---|---|---|---|---|---|---|---|
| 5 ft Raptor Sickle | 225 lb | 60 in. | 2 in. material | Yes | 3,500 PSI | 22 top-serrated 2 in. segments | Gerotor motor with pitman drive |
| 7 ft Raptor Sickle | 350 lb | 84 in. | 2 in. material | No | 3,500 PSI | 28 top-serrated 2 in. segments | Gerotor motor with planetary gear drive |
| 9 ft Raptor Sickle | 400 lb | 108 in. | 2 in. material | No | 3,500 PSI | 36 top-serrated 2 in. segments | Gerotor motor with planetary gear drive |
Sidewinder Flail Head Specifications
| Model | Head Weight | Flow Requirements | Max Pressure | Cut Capacity | Cut Width | Blade Package | Drive Motor |
|---|---|---|---|---|---|---|---|
| Sidewinder V2 for Raptor | 392 lb | 19 to 45 GPM | 3,500 PSI | Up to 4 in. | 36 in. | 20 forged steel Y-knife blades, 1 lb each | Permco hydraulic gear motor |
Cyclone Rotary Head Specifications
| Model | Head Weight | Flow Requirements | Max Pressure | Cut Capacity | Cut Width | Blade Package | Drive Type | RPM Range |
|---|---|---|---|---|---|---|---|---|
| Cyclone 48 in. for Raptor | 650 lb | 12 to 45 GPM | 3,500 PSI | Up to 10 in. | 48 in. | 2 forged steel blades, 12 lb each | Direct drive hub | 1,300 to 1,600 RPM |
Fitment Notes
These mower heads are for Eterra Raptor Boom Mower systems. Match the mower head and flow range to your machine's normal auxiliary hydraulic output, pressure rating, control setup, and the type of vegetation you are cutting. Do not exceed the selected head's maximum flow or pressure rating.
Similar Items You Might Like
People Who Bought This Item Also Bought
Questions & Answers
Have a Question?
-
will this fit on a bobcat T300
Good Morning!
These mower heads can go on a skid steer, they have a specialty mower system that they attach too. Here is a link to that on my site. https://www.skidsteercabs.com/products/raptor-boom-mower-system-eterra?_pos=2&_sid=be86d31ba&_ss=r
That system is quite pricey, but is extremely powerful and versatile. If you are looking for a cheaper option it is available as a bar mower too. https://www.skidsteercabs.com/products/skid-steer-razor-sickle-bar-mower-attachment-eterra?_pos=1&_sid=2b8ead151&_ss=r&variant=42575574237423
Let me know if you have any more questions!
Thanks,
Nathan
