Product Description

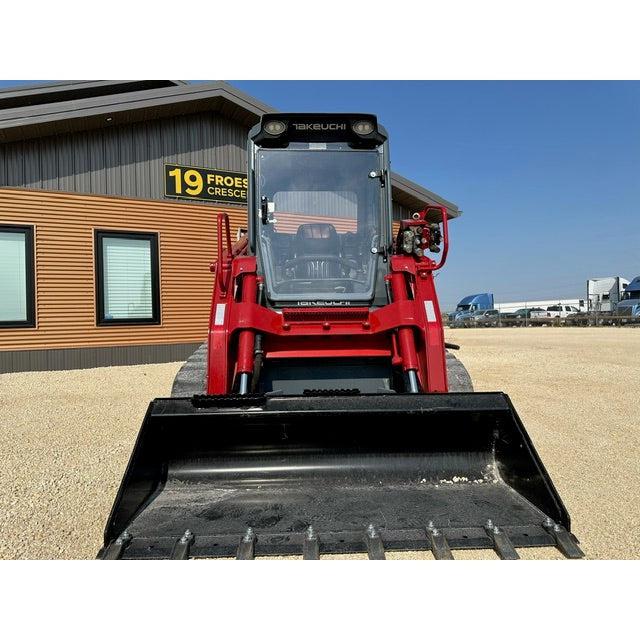

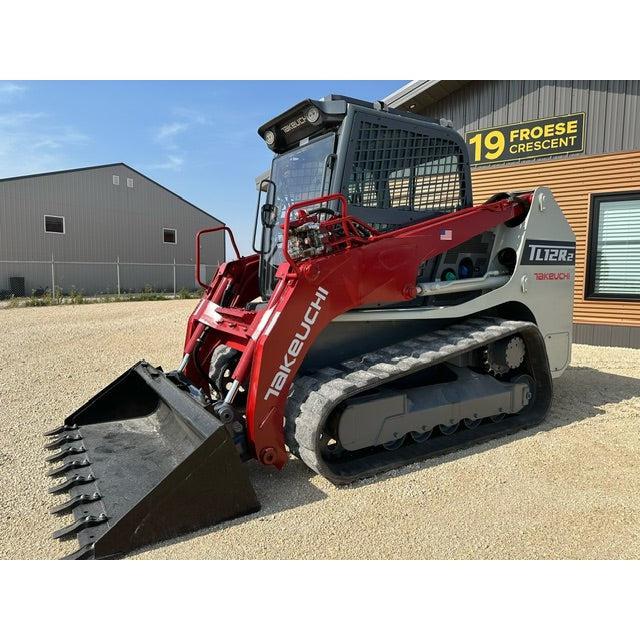

Takeuchi TL8, TL10, and TL12 R2/V2 Cab Enclosure

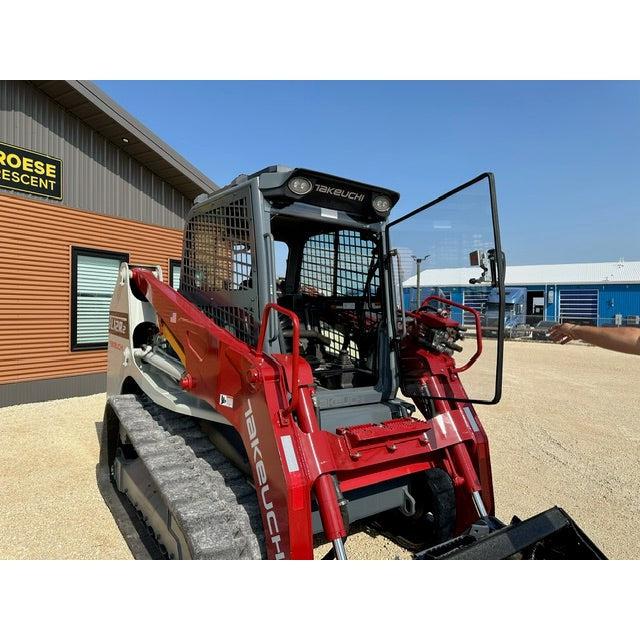

Add a hard front door and optional side coverage to an open Takeuchi compact track loader with an SSC Pro-Series retrofit. The formed front door uses 1/2-inch Lexan polycarbonate and ships with the locking, latching, sealing, and mounting parts needed for the listed R2 and V2 cabs.
Choose Door Only for the front assembly or Door + Sides for the same door with matching stationary side panels.
Exact model boundary
This listing covers Takeuchi TL8R2, TL10R2, TL12R2, TL8V2, TL10V2, and TL12V2. It does not cover an earlier TL8 that is not marked R2 or V2.
Check the full model plate, not just TL8, TL10, or TL12. Has the cab been repaired or fitted with factory door hardware? Are sensors, wiring, hinges, or a door frame still installed? Send the serial number and clear photos through our contact page before ordering if the current cab does not match an open R2/V2 layout.
What each option includes
- Formed 1/2-inch Lexan polycarbonate front door.

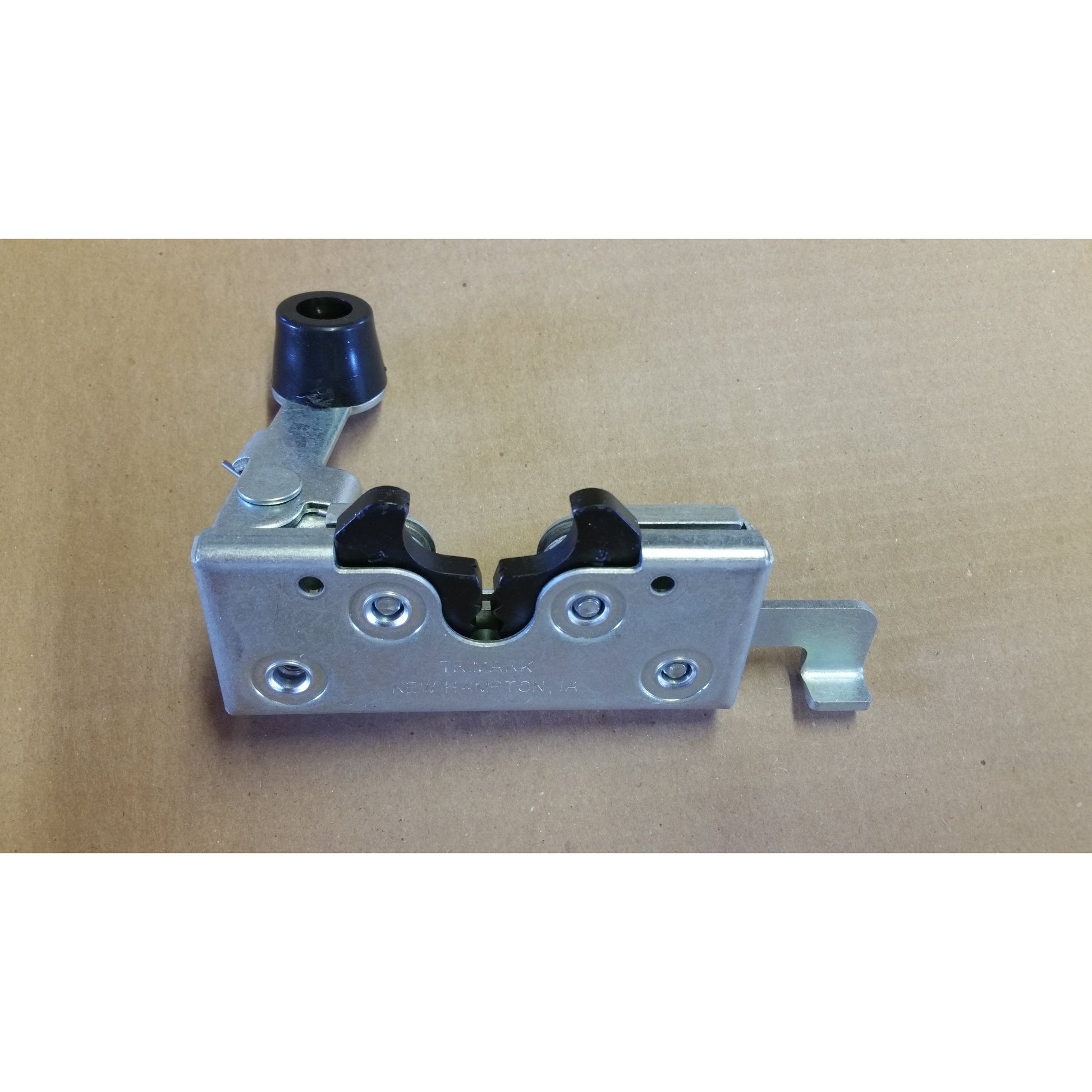

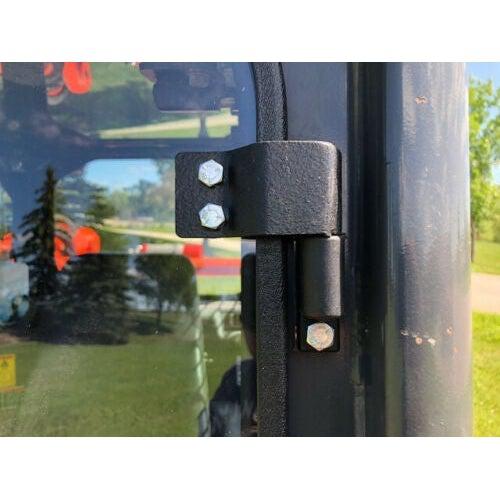

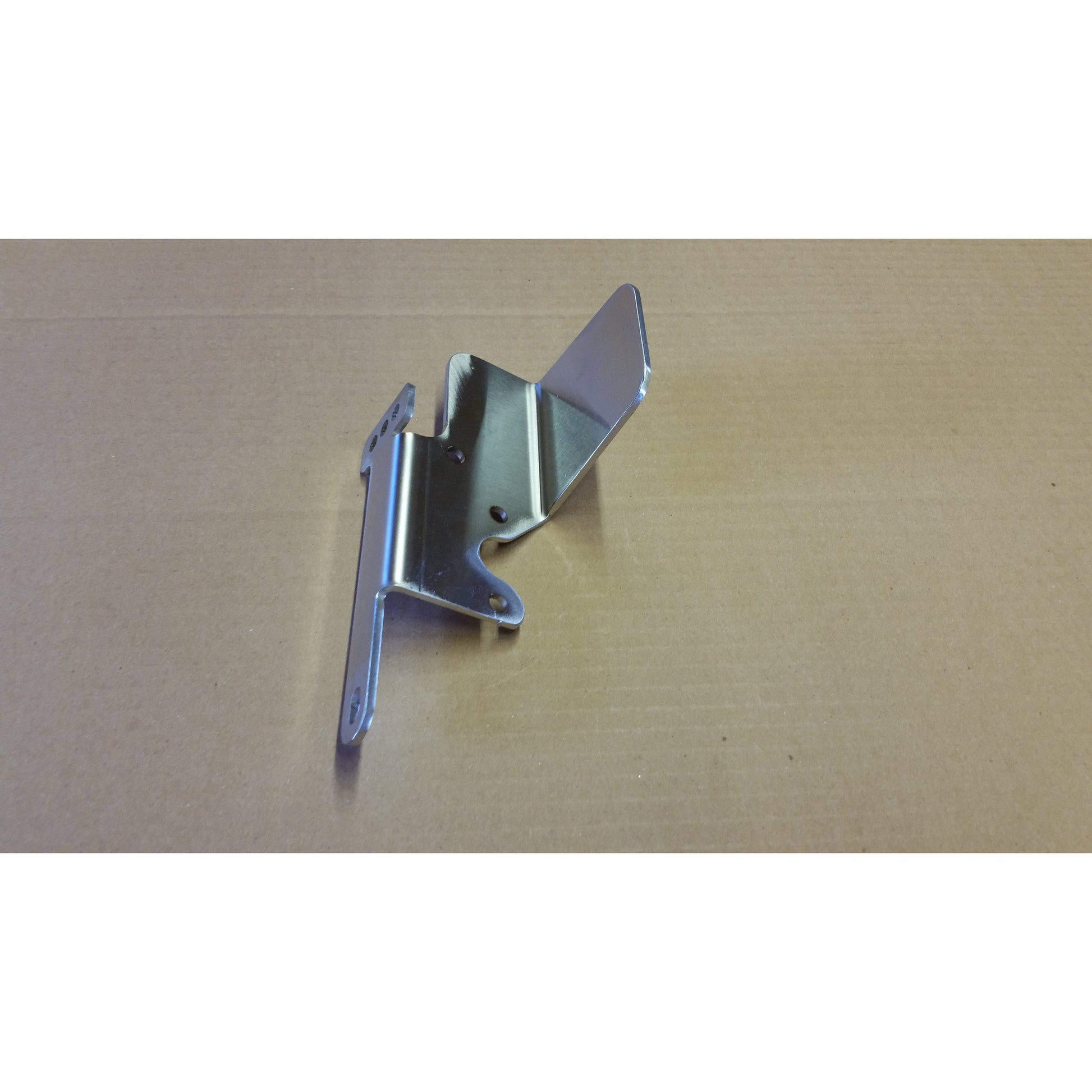

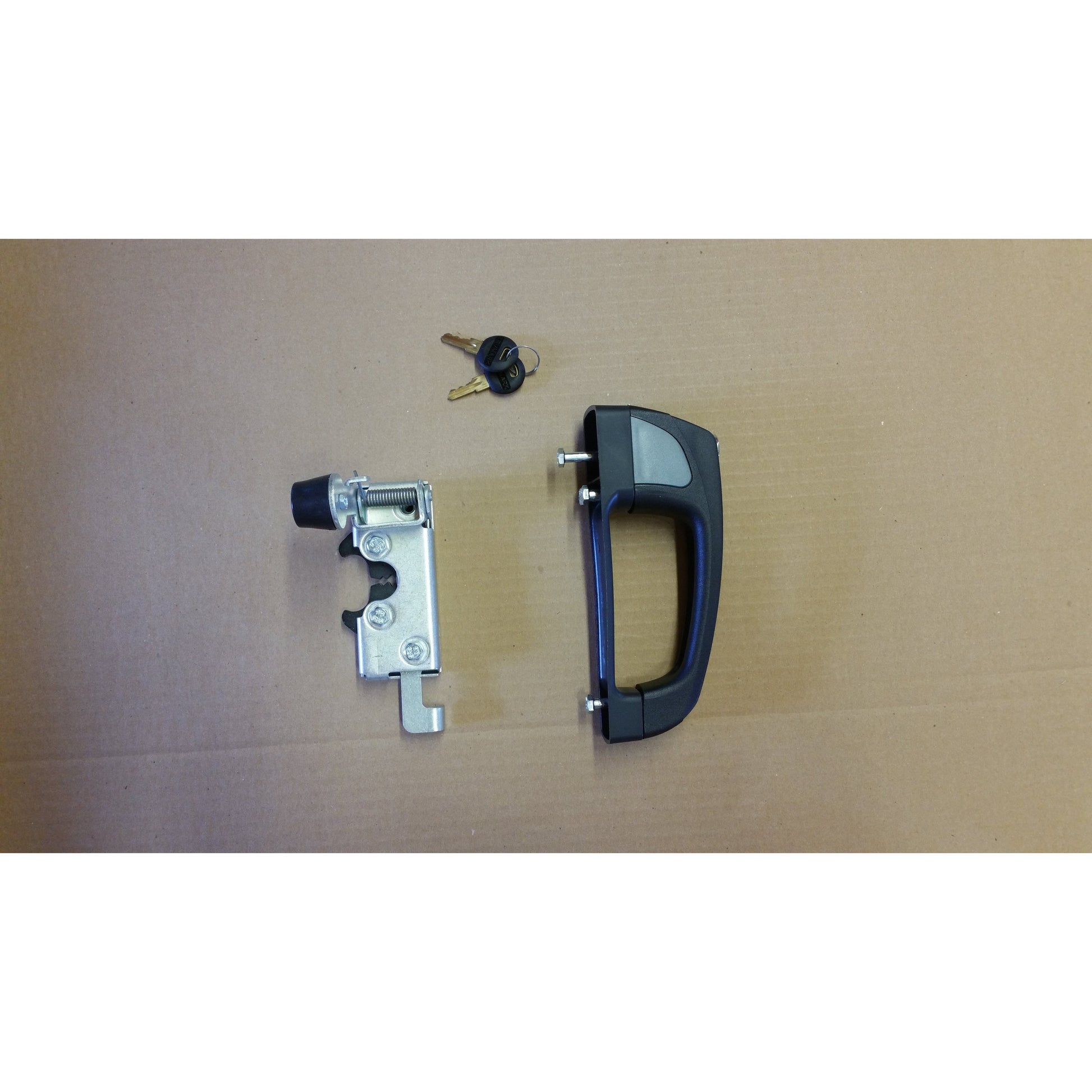

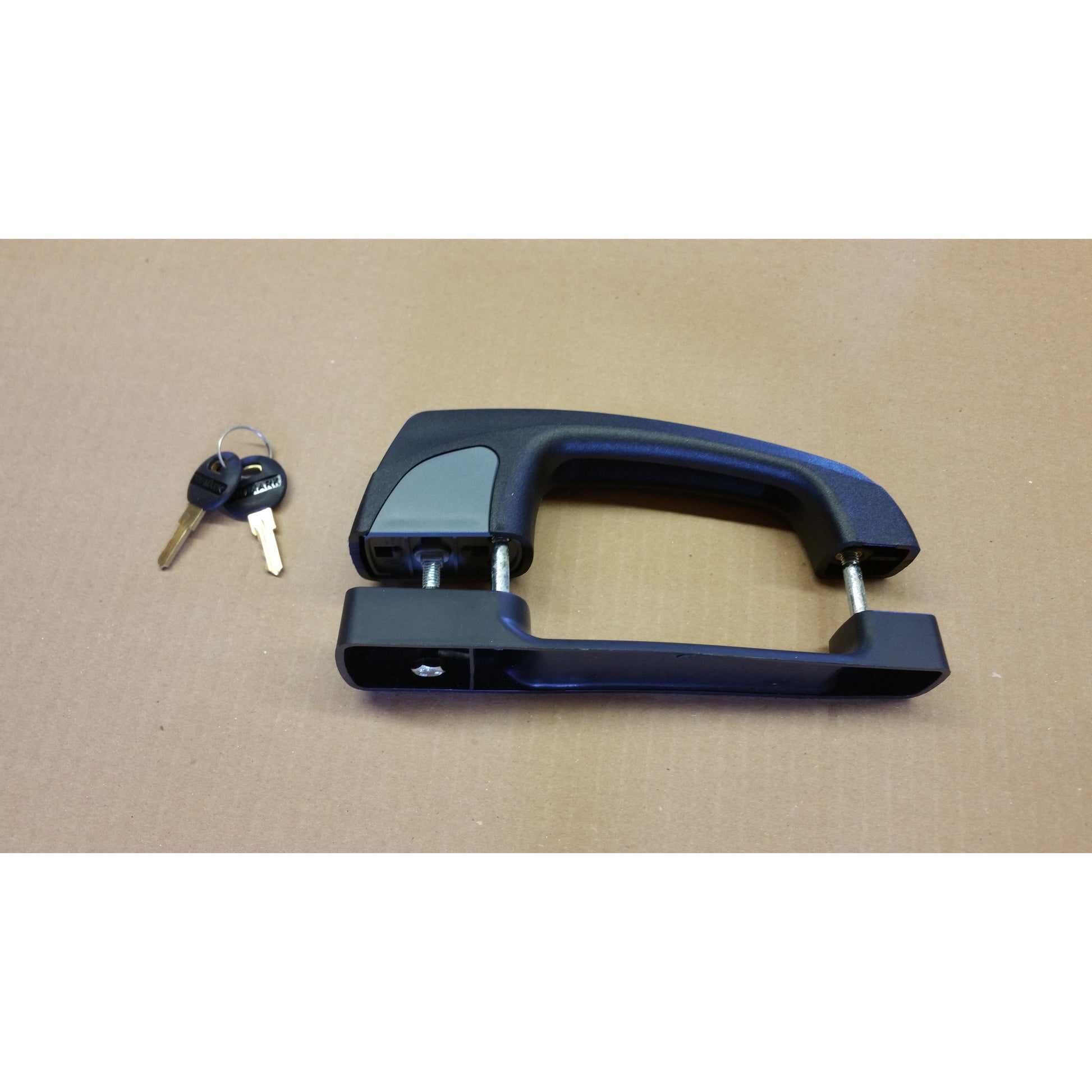

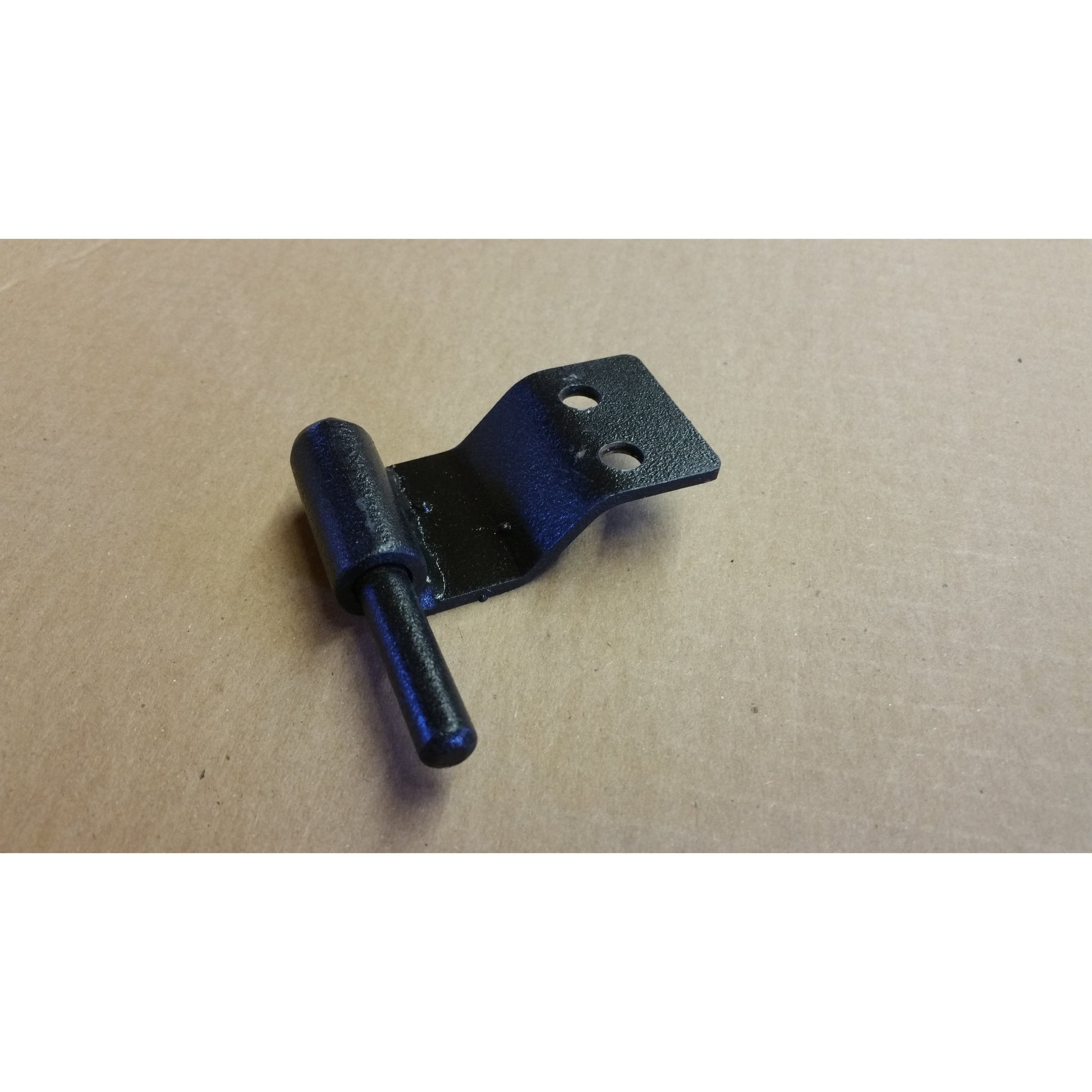

- Locking exterior handle and keys, interior pull, hinges, latch, striker, thresholds, perimeter seal, fasteners, and related mounting components.
- Stationary 1/8-inch polycarbonate side panels with seals and hardware when Door + Sides is selected.
A roof panel and rear window are not included. The side panels do not slide, although they can be unbolted for warm-weather operation. Browse other Takeuchi enclosure systems for a machine outside this R2/V2 group.
Installation planning
This is an aftermarket retrofit for an open cab, not a replacement panel for a complete OEM door system. Prior hinges, frames, thresholds, or aftermarket parts may need to be removed. Plan to locate and drill the hinge, threshold, and striker points as required by the kit and the condition of the ROPS.
Set the door square in the opening before final tightening, then adjust the striker and seals so the latch closes without forcing the panel. Review the Pro-Series installation guide before beginning.
Frequently asked questions
Will this enclosure fit an original Takeuchi TL8?
No. The TL8 must be an R2 or V2 model for this listing.
What is the difference between the two kit options?
Door Only supplies the front assembly. Door + Sides adds the matching stationary side panels and their hardware.
Does the kit include a roof or rear panel?
No. Neither standard option includes a roof panel or rear window.
