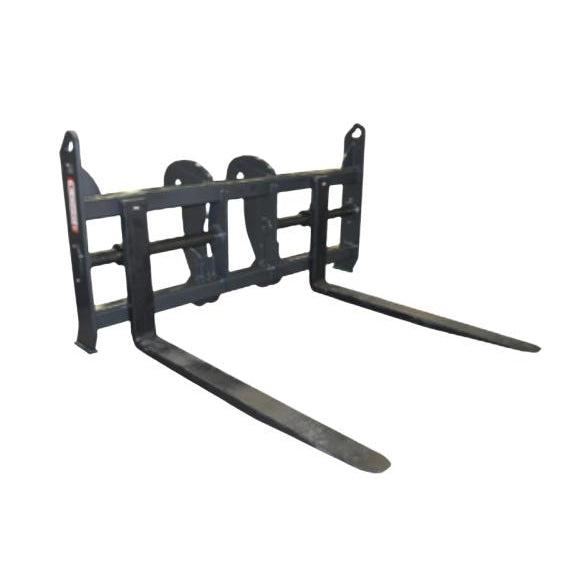

WHEEL LOADER PIPE FORKS | HAUGEN


$ 9,900.00 $ 18,210.00
Ask a Question

Description

Wheel Loader Pipe Forks for 416, 418 & Cat Fusion Mount. Give us a call today with any questions or if you need help choosing the right model for your application!

Pipe Forks for Wheel Loaders - 416 & 418 Mount

  • Heavy duty shaft style non-swinging forks
  • Our forks are shaft mounted with the eye of the fork welded on the back of the fork
    tine. This allows it to be easily adjusted and there are no rails or hooks that can be
    damaged making adjustments hard or impossible
  • Choose between different shaft sizes. All shafts are made of stress relieved material
  • Extra wide 96" frame, great for handling pipe

Pipe Forks for Wheel Loaders - Cat Fusion Mount

  • Heavy duty shaft style non-swinging forks
  • Our forks are shaft mounted with the eye of the fork welded on the back
    of the fork tine. This allows it to be easily adjusted and there are no rails
    or hooks that can be damaged making adjustments hard or impossible
  • Choose between different shaft sizes. All shafts are made of stress relieved material
  • Hardened Steel Forged Fork Tines
  • Extra wide 96" frame great for handling pipe

    Specification

    JRB 416 Mount

    Model
    Frame Width Minimum Tine Spacing Max Tine Spacing Shaft Size Fork Tine Size
    Capacity at 24"
    MWFP 96 25-6-60-35
    98"
    21.25"
    94" 3.50" 2.5" x 6" x 60"
    20,000 lbs
    MWFP 96 25-6-72-35
    98"
    21.25" 94" 3.50" 2.5" x 6" x 72" 20,000 lbs
    MWFP 96 25-6-96-35
    98"
    21.25" 94" 3.50"
    2.5" x 6" x 96" 20,000 lbs
    MWFP 96 3-7-72-35
    98"
    24"
    94" 3.50"
    3" x 7" x 72" 34,000 lbs
    MWFP 96 3-7-96-35
    98"
    24"
    94"
    3.50"
    3" x 7" x 96"
    34,000 lbs

     JRB 418 Mount

    Model Frame Width Minimum Tine Spacing Max Tine Spacing Shaft Size Fork Tine Size
    Capacity at 24"
    MWFP 96 3-7-60-35
    98"
    24"
    94" 3.50" 3" x 7" x 60"
    34,000 lbs
    MWFP 96 3-7-72-35
    98"
    24"
    94" 3.50" 3" x 7" x 72" 34,000 lbs
    MWFP 96 3-7-96-35
    98"
    24"
    94" 3.50"
    3" x 7" x 96" 34,000 lbs



     ***Other frame widths and tine sizes available

    Cat Fusion Mount

    Model
    Frame Width Minimum Tine Spacing Max Tine Spacing Shaft Size Fork Tine Size
    Capacity at 24"
    MWFP 96 25-6-60-35
    98"
    21.25"
    94" 3.50" 2.5" x 6" x 60"
    20,000 lbs
    MWFP 96 25-6-72-35
    98"
    21.25" 94" 3.50" 2.5" x 6" x 72" 20,000 lbs
    MWFP 96 25-6-96-35
    98"
    21.25" 94" 3.50"
    2.5" x 6" x 96" 20,000 lbs
    MWFP 96 3-7-72-35
    98"
    24"
    94" 3.50"
    3" x 7" x 72" 34,000 lbs
    MWFP 96 3-7-96-35
    98"
    24"
    94"
    3.50"
    3" x 7" x 96"
    34,000 lbs



    ***Other frame widths and tine sizes available

    Option

    Replacement Shaft

    • Shafts are available to fit any Haugen Fork
     Model Description
    SH-35 3.50” Diameter Shaft for as 98” frame ( 2 per frame)

    Please have the Model # and Serial # ready when ordering
