Product Description

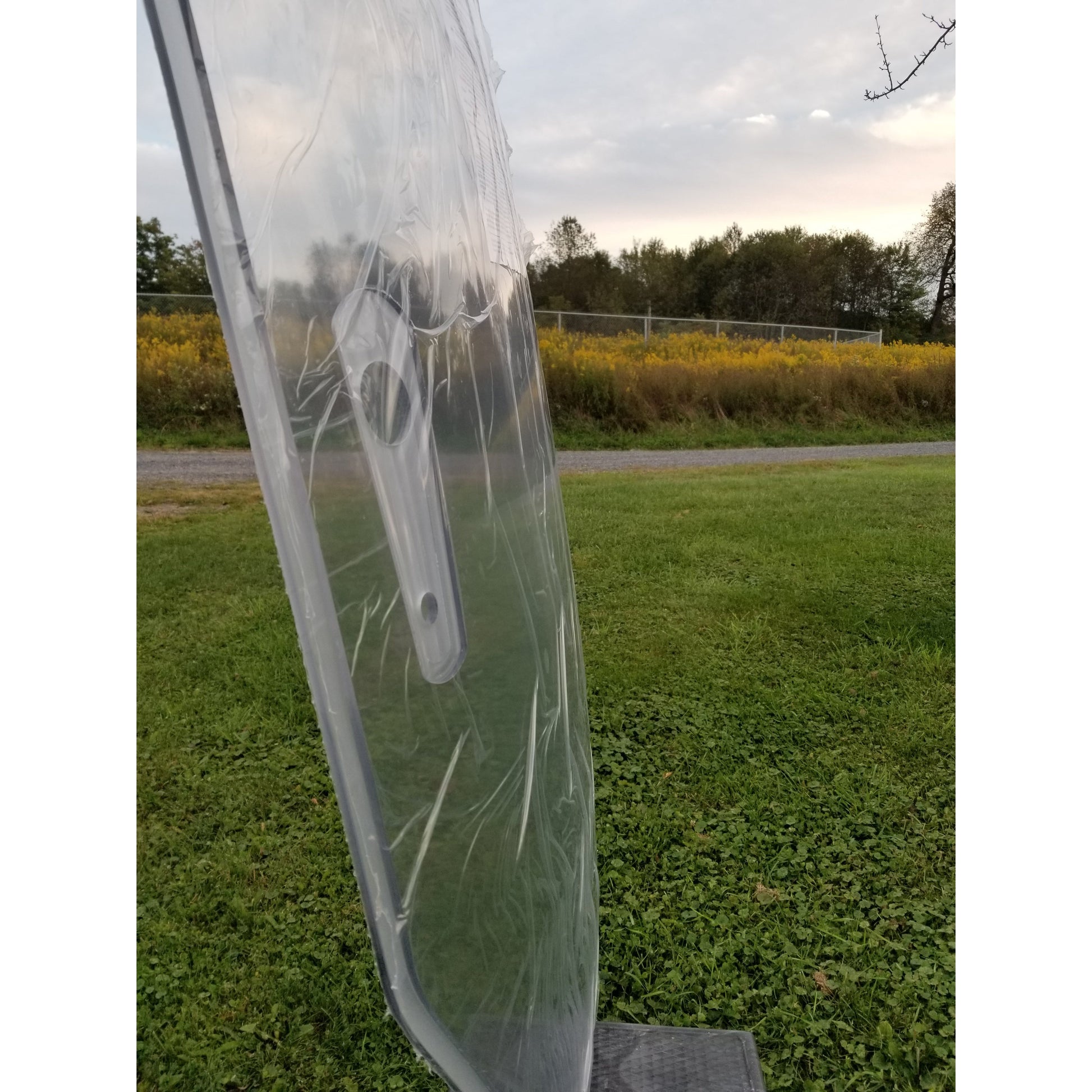

New Holland L- and C-Series Polycarbonate Windshield

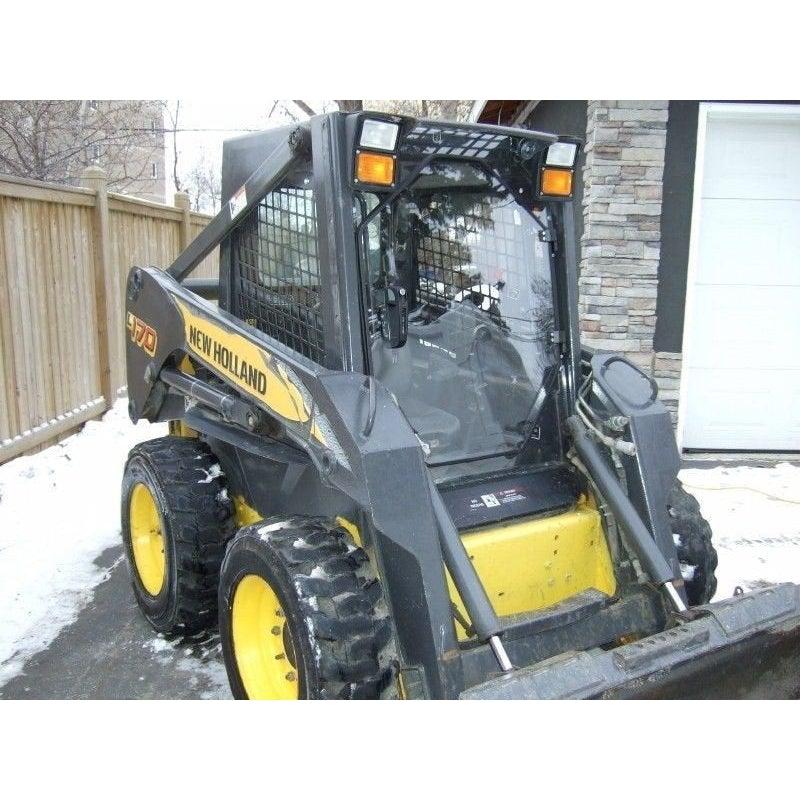

This SHIELDS replacement is built for the front door opening on listed New Holland L-Series skid steers and C-Series compact track loaders. The product options separate the machine series, single- or dual-wiper layout, and panel thickness so the replacement can be matched to the existing cab.
Identify the wiper configuration

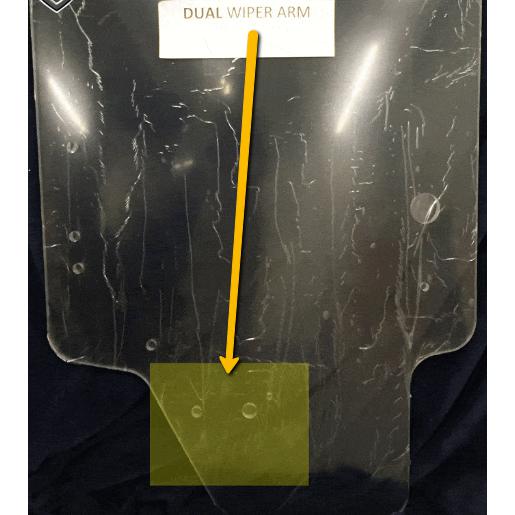

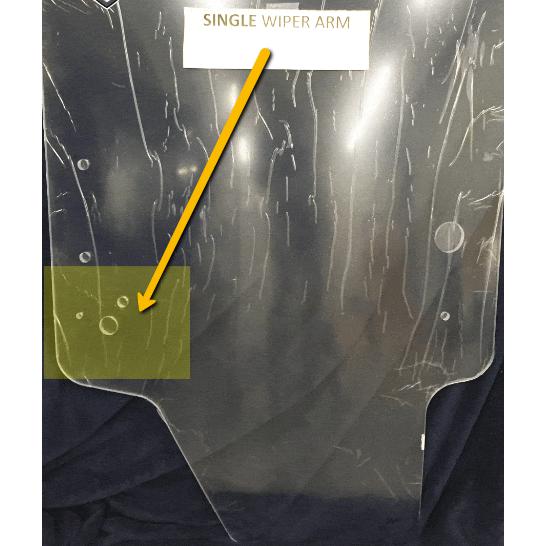

SHIELDS cross-references 84344565 to the single-wiper configuration and 47405930 to the dual-wiper configuration. SSC currently lists L213, L216, L218, L221, L228, L234, L316, L318, L320, L321, L328, L334, C227, C232, C237, C245, and C250. Verify the OEM number using the machine serial number before selecting a variant.
Choose the panel thickness

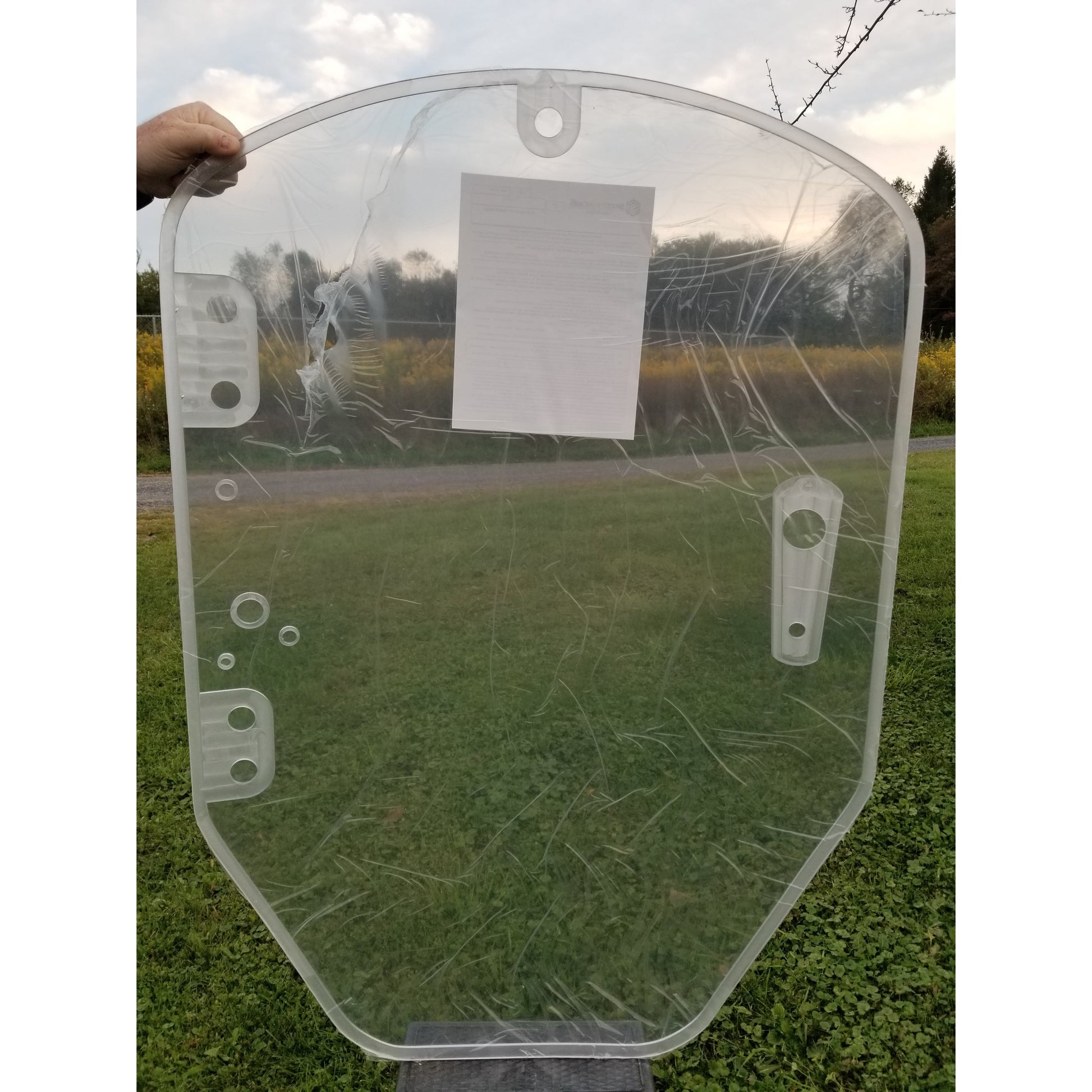

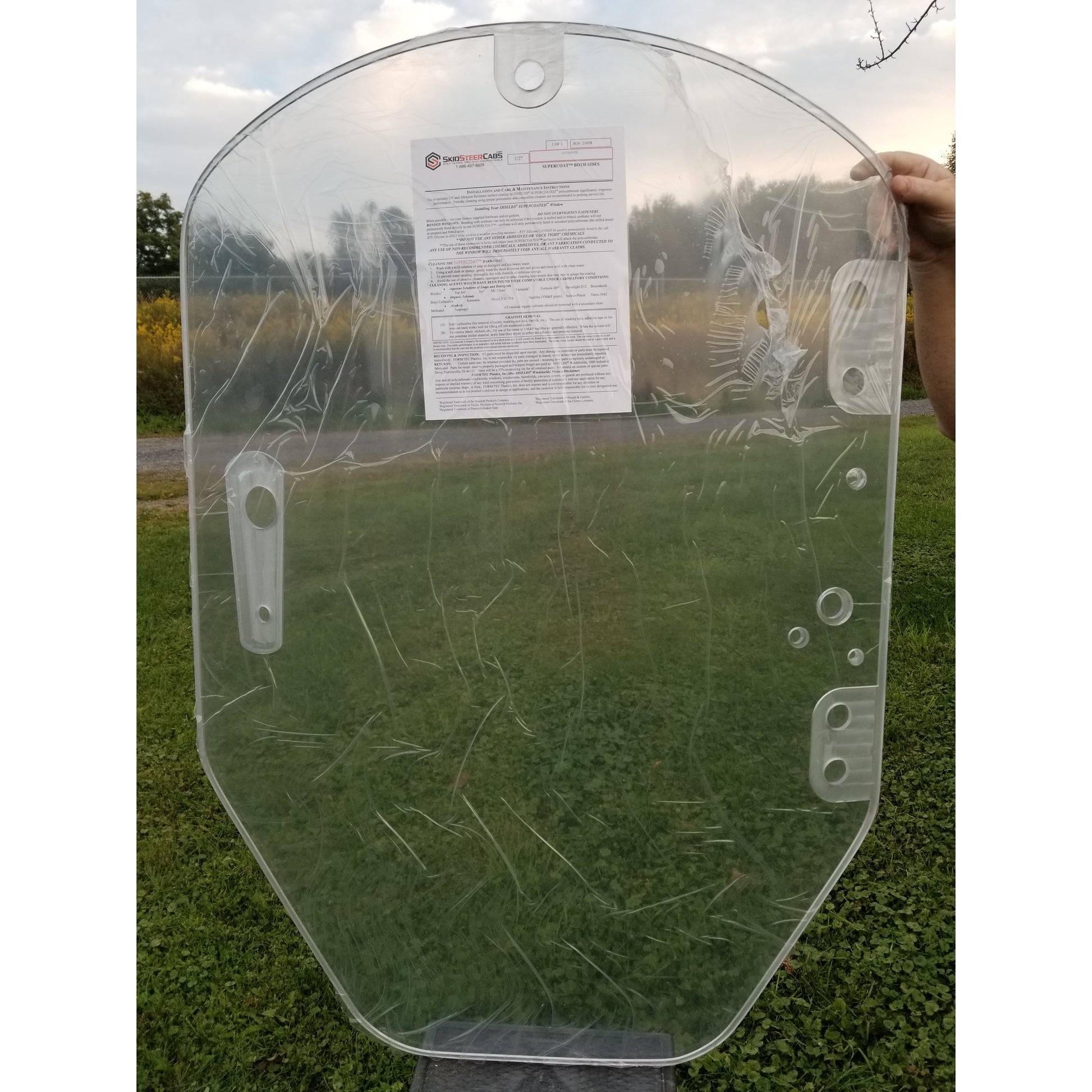

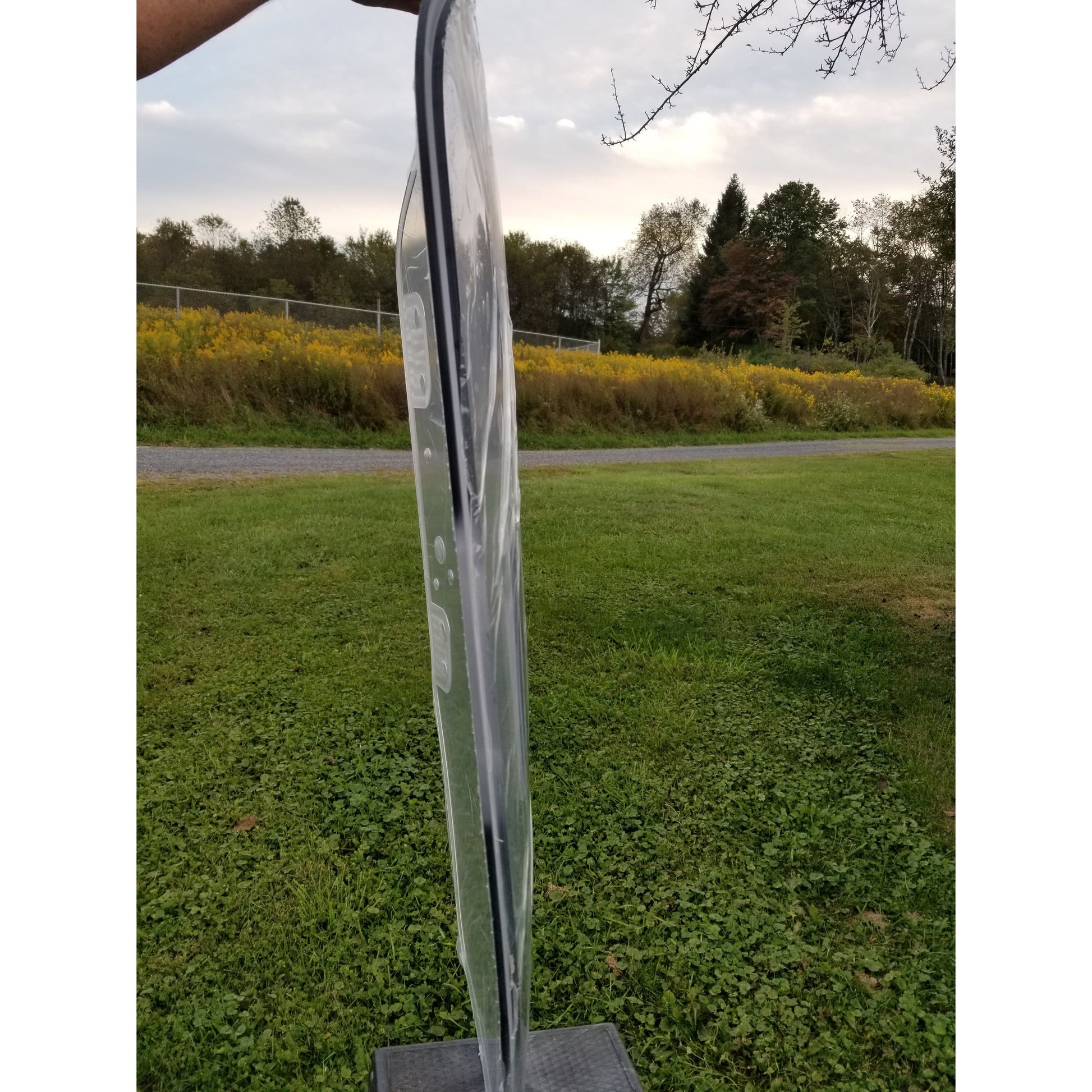

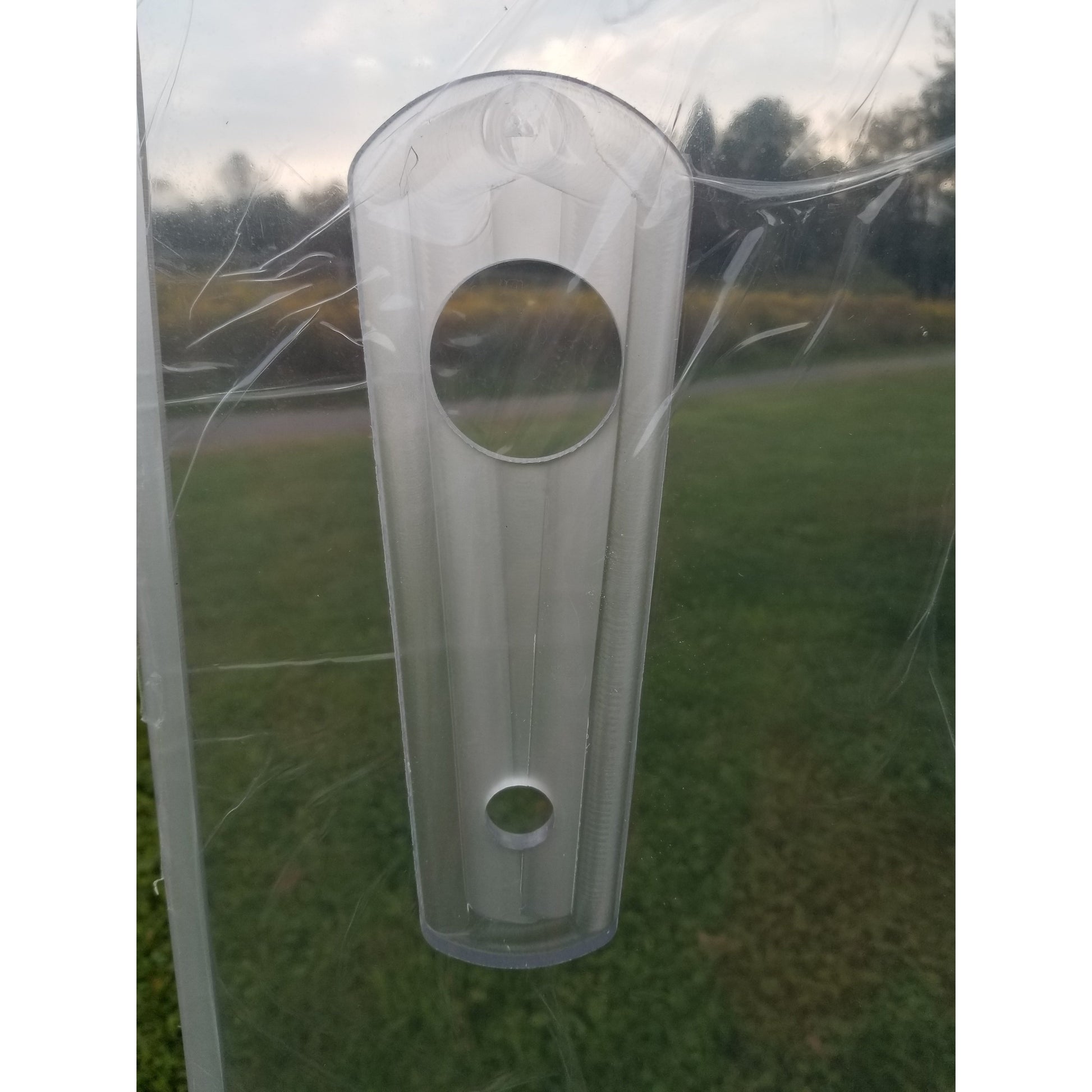

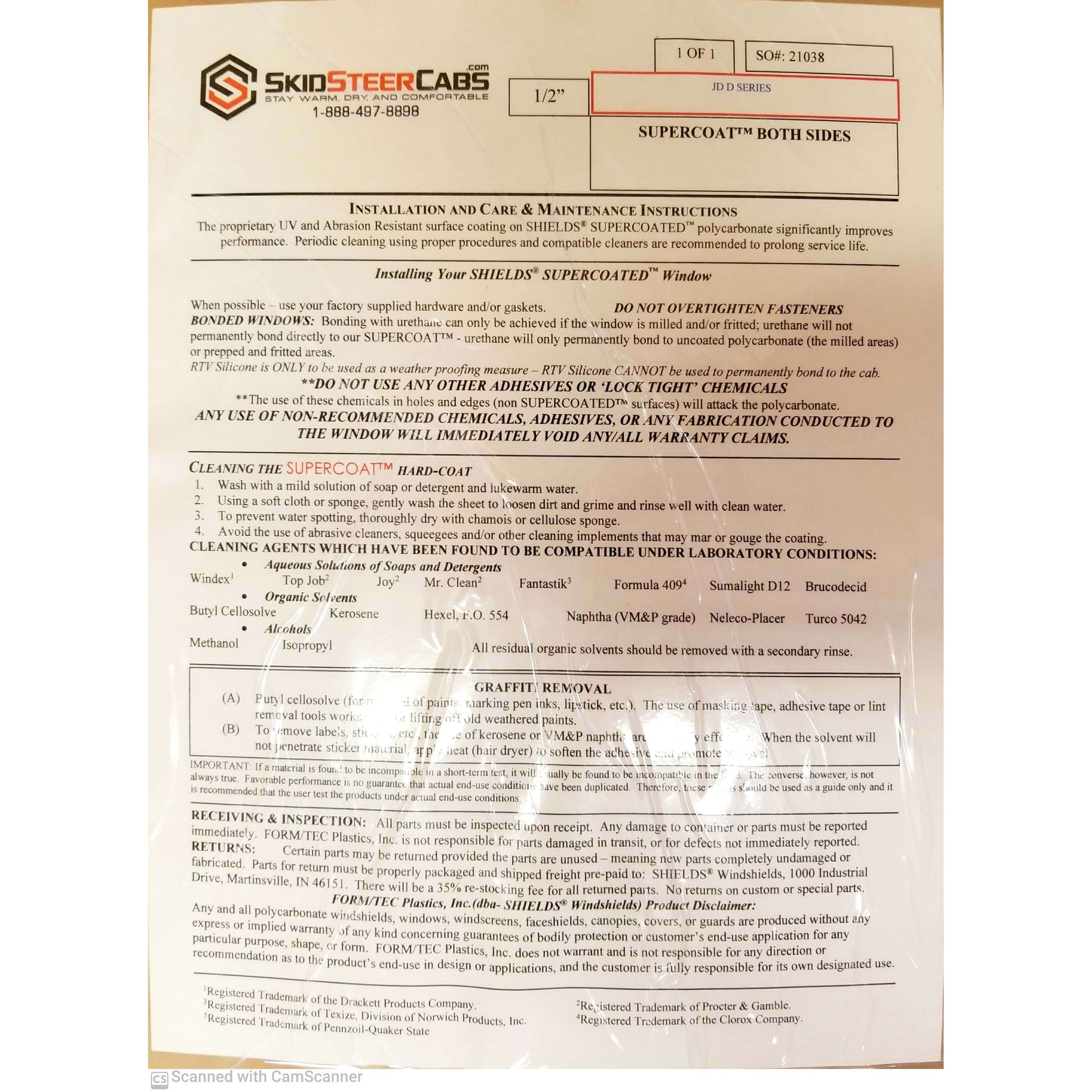

Each listed configuration is offered in 1/4-inch, 3/8-inch, or 1/2-inch clear polycarbonate. SHIELDS forms the panel for the original opening and applies SUPERCOAT to both sides. Converting from thin glass to a thicker panel can change hinge-bolt or wiper-mount requirements, so inspect the cab before installation.
- Select L Series or C Series and the correct wiper-arm layout.
- Match 84344565 or 47405930 before ordering.
- Panel only; the frame, seals, hinges, bolts, and wiper hardware are not included.
Questions before ordering
Is this the deluxe-cab windshield?
No. Earlier C175-C190, L160-L190, LS, and LT models use a different deluxe-cab configuration and are not covered by this listing.
How do I choose the OEM number?
Use the wiper layout as a first check, then confirm the glass number from the machine serial number.
Does the windshield include new installation parts?
No. Inspect the existing frame, seal, and hardware and source any required replacement parts separately.
See more New Holland replacement doors and windows or compare other polycarbonate skid-steer windshields. For help matching the cab, contact SSC with the model, serial number, wiper layout, part number, and photos.
Confirm fitment before ordering
A machine model listed on this page does not, by itself, guarantee fitment. Before ordering, use your machine serial number to confirm the required OEM part number through the manufacturer or dealer, the applicable owner's or parts manual, or an authoritative OEM parts catalog. Match that OEM number and the existing door or window configuration to this listing.
If SSC correctly ships the item, SKU, and variant you selected, but the selection is not correct for your machine, the order is not eligible for return, exchange, refund, or credit, and SSC will not cover any costs to correct the selection. If SSC ships a different item than you ordered, we will make it right at our expense.
If you are uncertain, contact SSC before ordering with the machine make, model, serial number, current OEM part number if available, and clear photos. Review our Returns and Refunds Policy.
People Who Bought This Item Also Bought
Questions & Answers
Have a Question?
-
I have a 2005 New Holland LS190B that I bought used. It has a cabin door on it. It appears to not be the deluxe door kit but a standard cabin door kit with a single wiper blade where the motor mounts on the top inside of door. It does not match up with the deluxe door kit. Using Messicks parts catalog, it appears to be glass window part #86547915 for stadard cab door. Do you make a plexiglass version for this door?
Hi - we don't currently make this part in polycarbonate, but I do have a replacement glass option. This is a direct OEM replica, in glass:
https://www.skidsteercabs.com/products/new-holland-skid-steer-front-center-door-glass
That said, we can make this in polycarbonate if you want. You would need to give me a call to discuss pricing, time frame, etc. Ask for Brian!
-
I have a C332 new Holland and I shattered the glass and the door came off its mountings. Can I receive a replacement glass and install myself. Will all my hardware fit your glass. I have all the hardware and it does have a single sweep wiper on it. Can you advise I I can install the new glass and there are the glued pieces left on the factory frame. Is there a good way to remove all the glass that’s glued on the frame?
Hello,
Sorry for the delayed response to your question, we are just gettting caught up from Labor day weekend. We can send you a polycarbonate glass replacement that you can install yourself. You can remove old glued pieces with screwdriver or similar tool, I know that glass shops have specialized tools that some guys like to use as well, but those aren't strictly necessary.

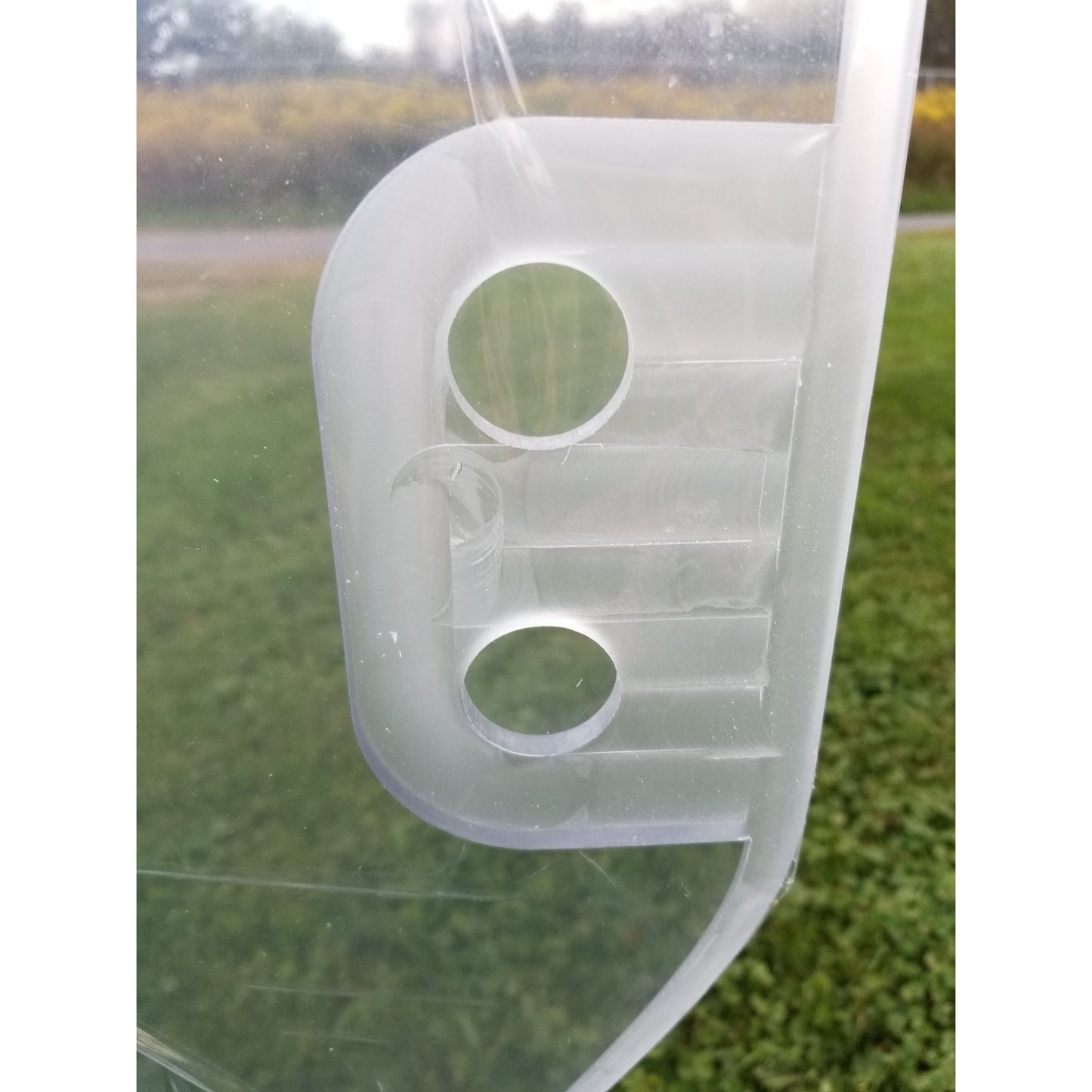

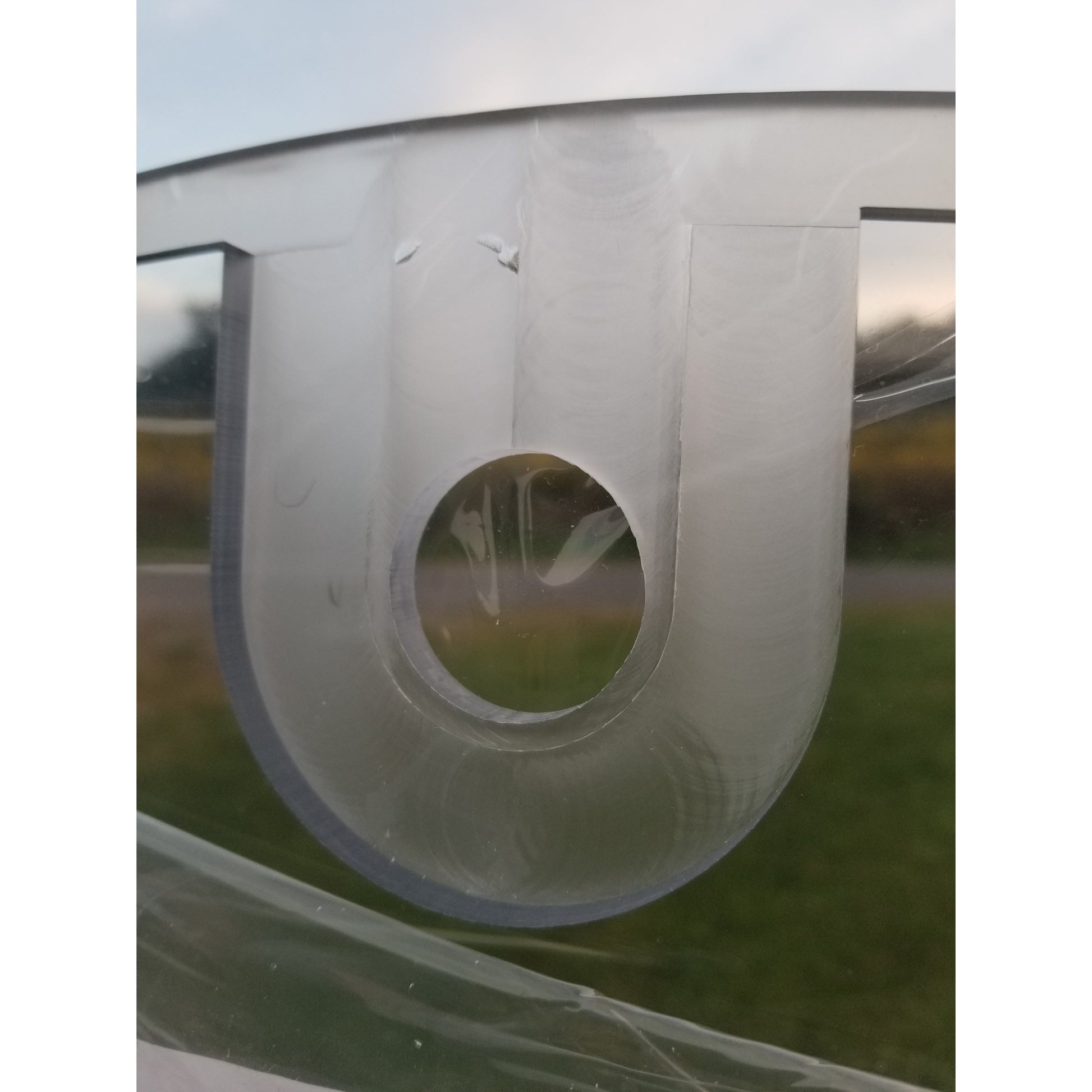

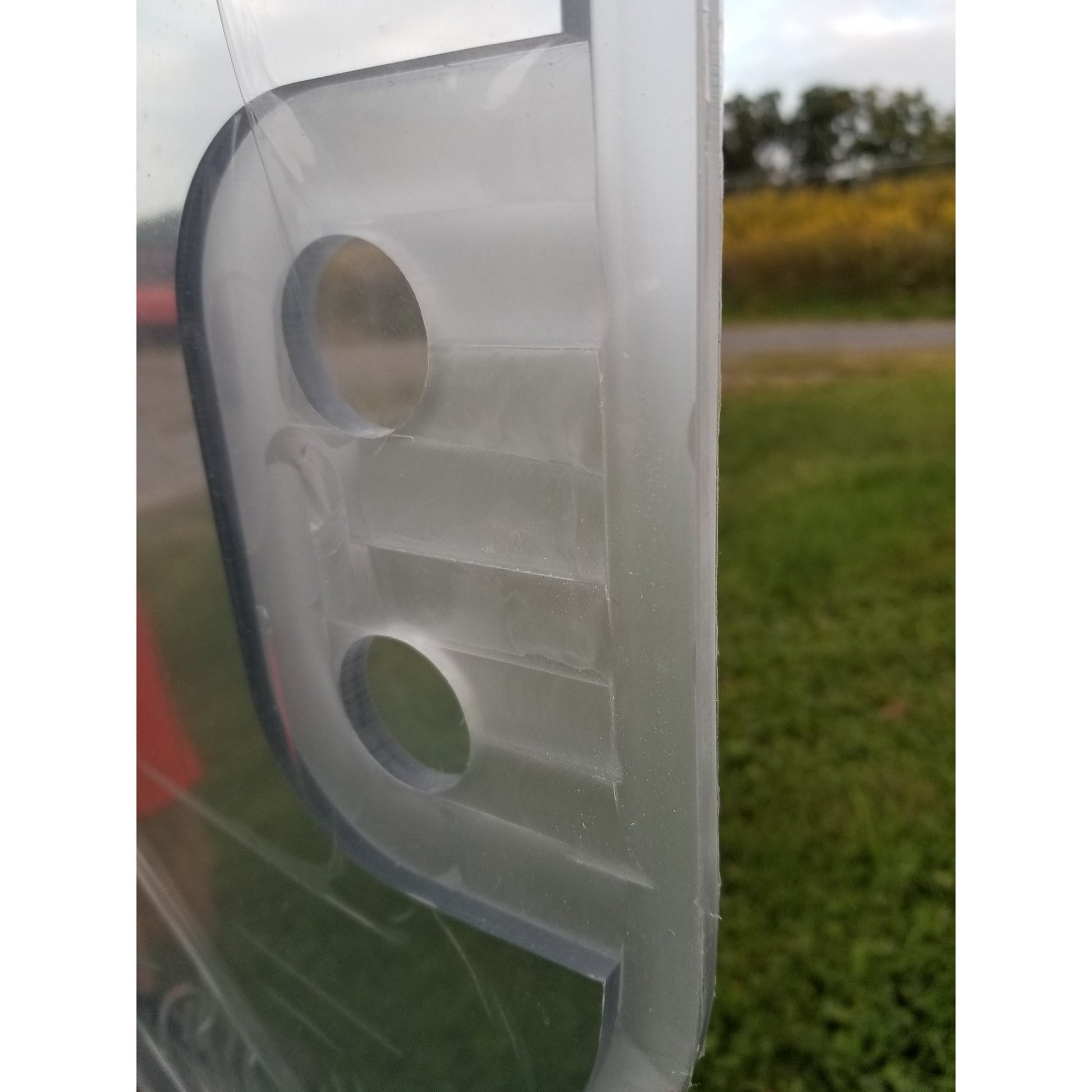

You can select your model and wiper style from the drop down menu on the listing, or I can email you a quote, just need your shipping address, and which thickness you require. Also, regarding thickness, our 1/2" doors are thicker than the OEM glass, but we mill the edges down so that it can glue in the exact same way, giving you a forestry door in the original hardware. Let me know if you have any more questions!
Thanks,
Nathan
-
Door and hardware for a new holland ls 170
Hello,
We do make a door with hardware for the LS 170. It is different than the OEM door replacments because we make it ourselves, it is not a New holland product. We send it with a 1/2" door, door handle, hinges, weather seal, and all the other hardware you need to mount and use it! Here is a link to it on my site. Let me know if you have any more questions!Thanks,
Nathan
