SKID STEER POST DRIVER | HAUGEN

SKID STEER POST DRIVER | HAUGEN

$ 8,995.00 USD
$ 9,980.00 USD $ 8,995.00 USD
Shipping calculated at checkout.
Ask a Question

Description

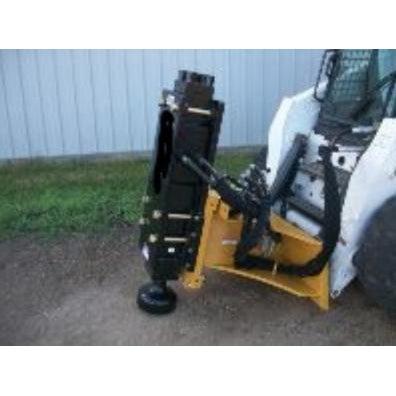

The Dakota Skid Steer Post Driver lineup from Haugen Attachments are designed to quickly and effortlessly drive posts of all sizes into the ground, saving you time and money on your fencing projects.

Haugen has designed these units with reliability and performance in mind to ensure a long, productive, and trouble-free service life.

Give us a call today with any questions or if you need help choosing the right model for your application!

Features

Dakota Post Driver Models 1600, 1850, 2000:

  • Makes driving posts ease
  • Safely vibrates the posts into the ground
  • Drives wood or steel posts
  • Ease of operation is ideal for rental applications
  • Heavy Duty Mounting Plate 3/4" thickness
  • Standard Plumb Bob Chain and Depth Gauge for precise post installation
  • Standard Post Puller Chain for removal of unwanted posts
  • Several options and tools available
  • Warranty 1 year

All 3 models come standard with a Dome Head Tool, and you can also purchase additional Skid Steer Post Driver Tools if you need them.

Specifications

    Model

    		 Blows per minute
    Avg. Foot lbs    		 Tool
    Diameter    		 Max Post
    Diameter    		 Weight

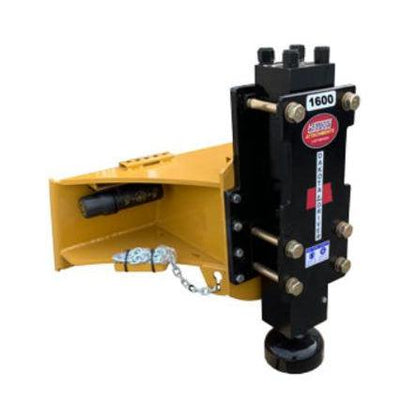

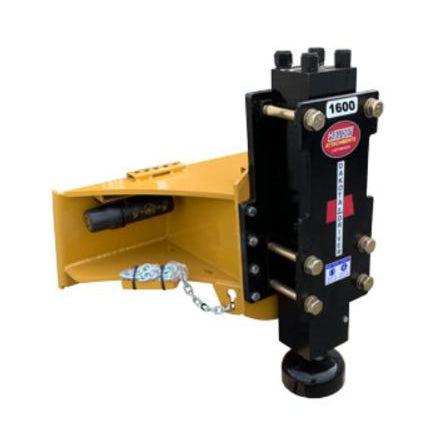

    PD-1600  (500-900) / (877 Ft lbs) 2.70” 7.125” 1150 lbs

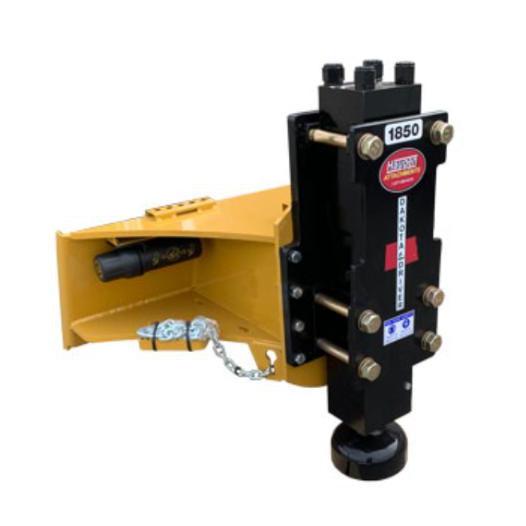

    PD-1850 (400-800) / (945 Ft lbs) 3.00” 8.250” 1325 lbs
    PD-2000 (400-800) / (1400 Ft lbs) 3.25” 9.000” 1700 lbs


    Options

    (all tilt and auger options can be added anytime later)

    Option Description

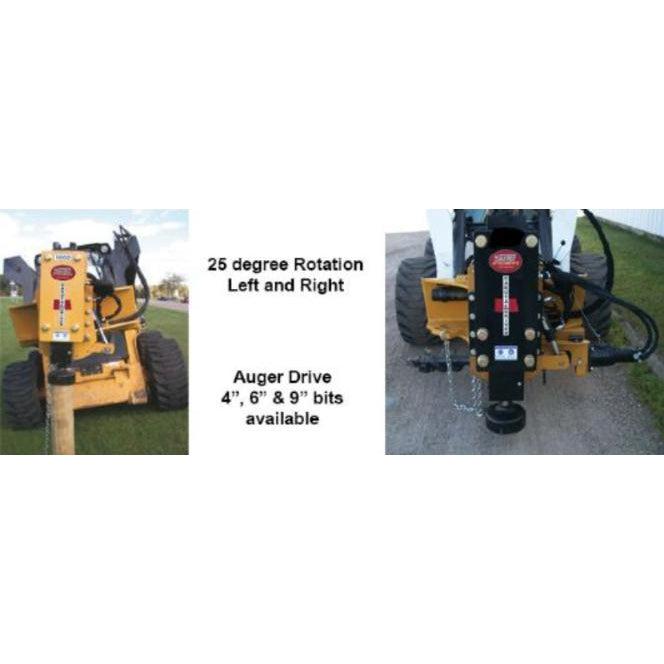

    Tilt option - allows the driver to tilt left or right to compensate for uneven terrain
    Planetary Auger Drive Option - add an auger drive to your attachment
    4 inch Auger Bit
    6 inch Auger Bit

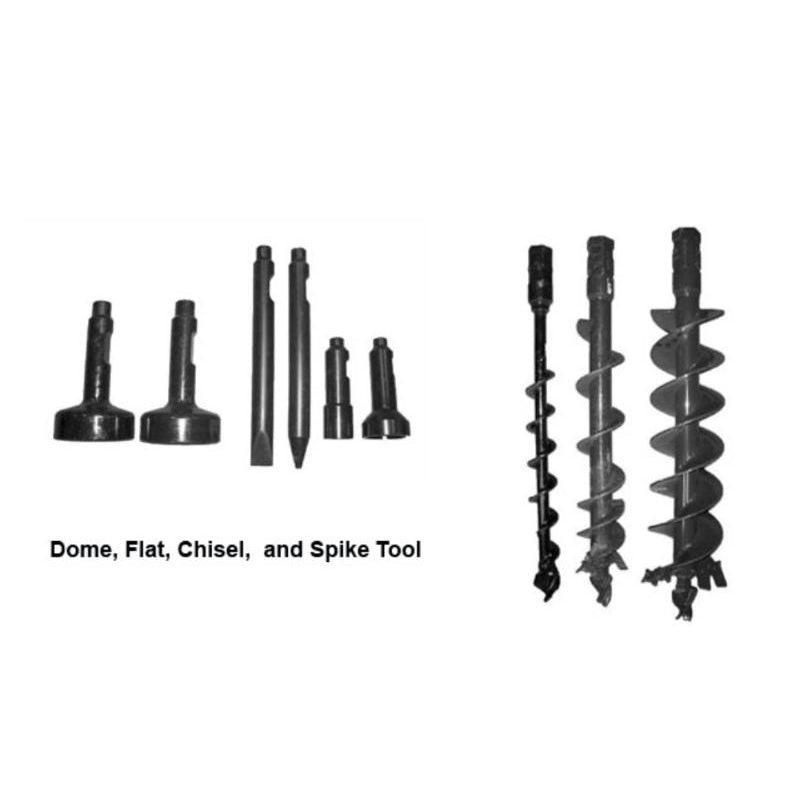

     Additional Tools Available

    Tools for Model PD-1600

    Model
    		 Description
    		 Tool Diameter
    PD-0005
    		 Dome Head Tool 7.125"
    		 2.7"
    PD-0006
    		 Flat Head Tool 7.125"
    		 2.7"
    PD-0007
    		 Concrete Chisel Tool
    		 2.7"
    PD-0008
    		 Moil Point Tool
    		 2.7"
    PD-0020
    		 1 3/4" x 48" Long Rock Spike
    		 N/A

    Tools for Model PD-1850

    Model
    		 Description
    		 Tool Diameter
    PD-0009
    		 Dome Head Tool 8.25"
    		 2.9"
    PD-0010
    		 Flat Head Tool 8.125"
    		 2.9"
    PD-0011
    		 Concrete Chisel Tool
    		 2.9"
    PD-0012
    		 Moil Point Tool
    		 2.9"
    PD-0014
    		 12" Dome Tool
    		 2.9"
    PD-0015
    		 12" Flat Tool
    		 2.9"
    PD-0020
    		 1 3/4" x 48" Long Rock Spike
    		 N/A

    Tools for Model PD-2000

    Model
    		 Description
    		 Tool Diameter
    PD-0016
    		 9" Dome Tool
    		 3.135"
    PD-0017
    		 9" Flat Tool
    		 3.135"
    PD-0018
    		 Dome Head Tool 12"
    		 3.135"
    PD-0019
    		 Flat Head Tool 12"
    		 3.135"
    PD-0020
    		 Concrete Chisel Tool
    		 3.135"
    PD-0021
    		 Moil Point Tool
    		 3.135"
    PD-0020 1 3/4" x 48" Long Rock Spike N/A
