Product Description

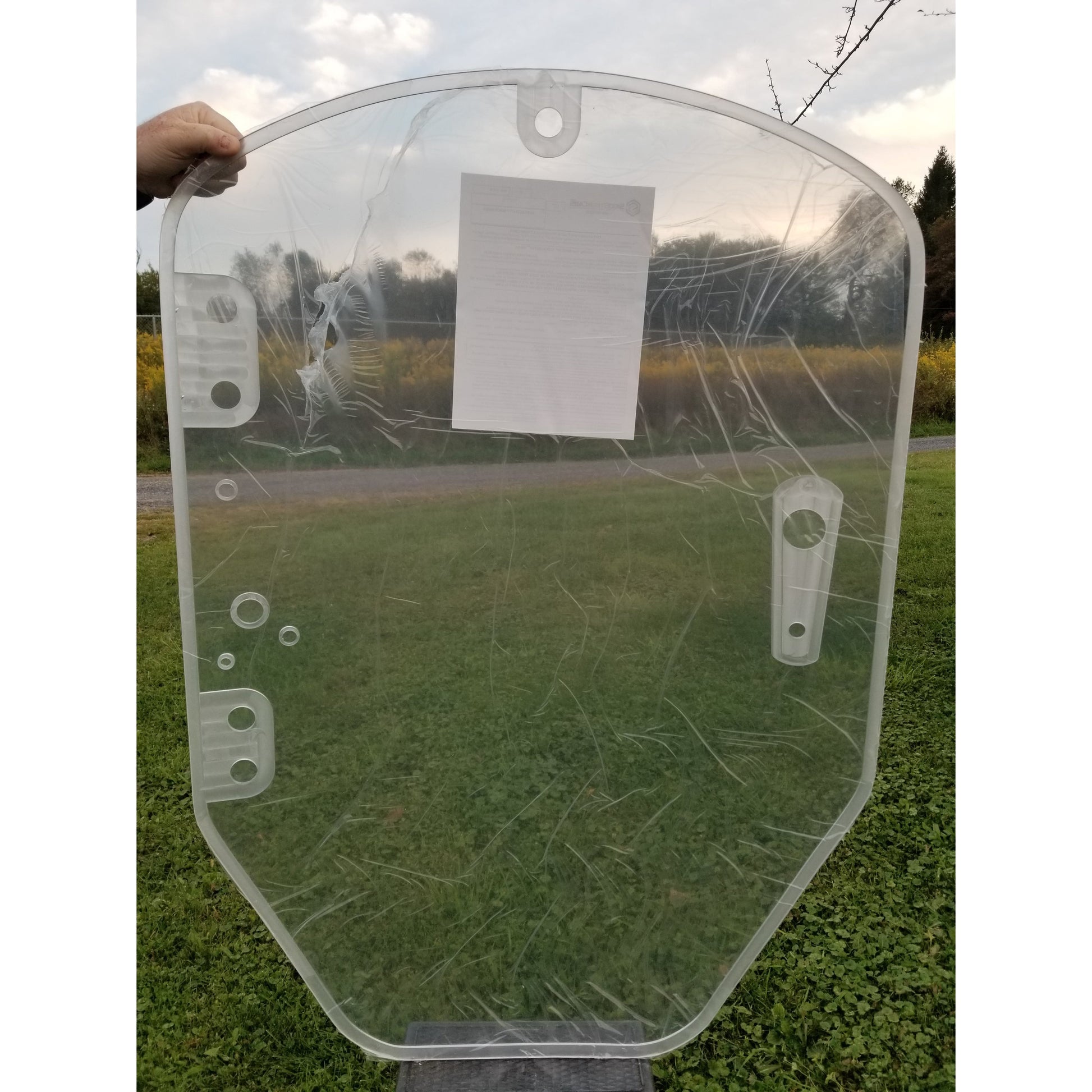

Bobcat G-Series Polycarbonate Windshield 6729776

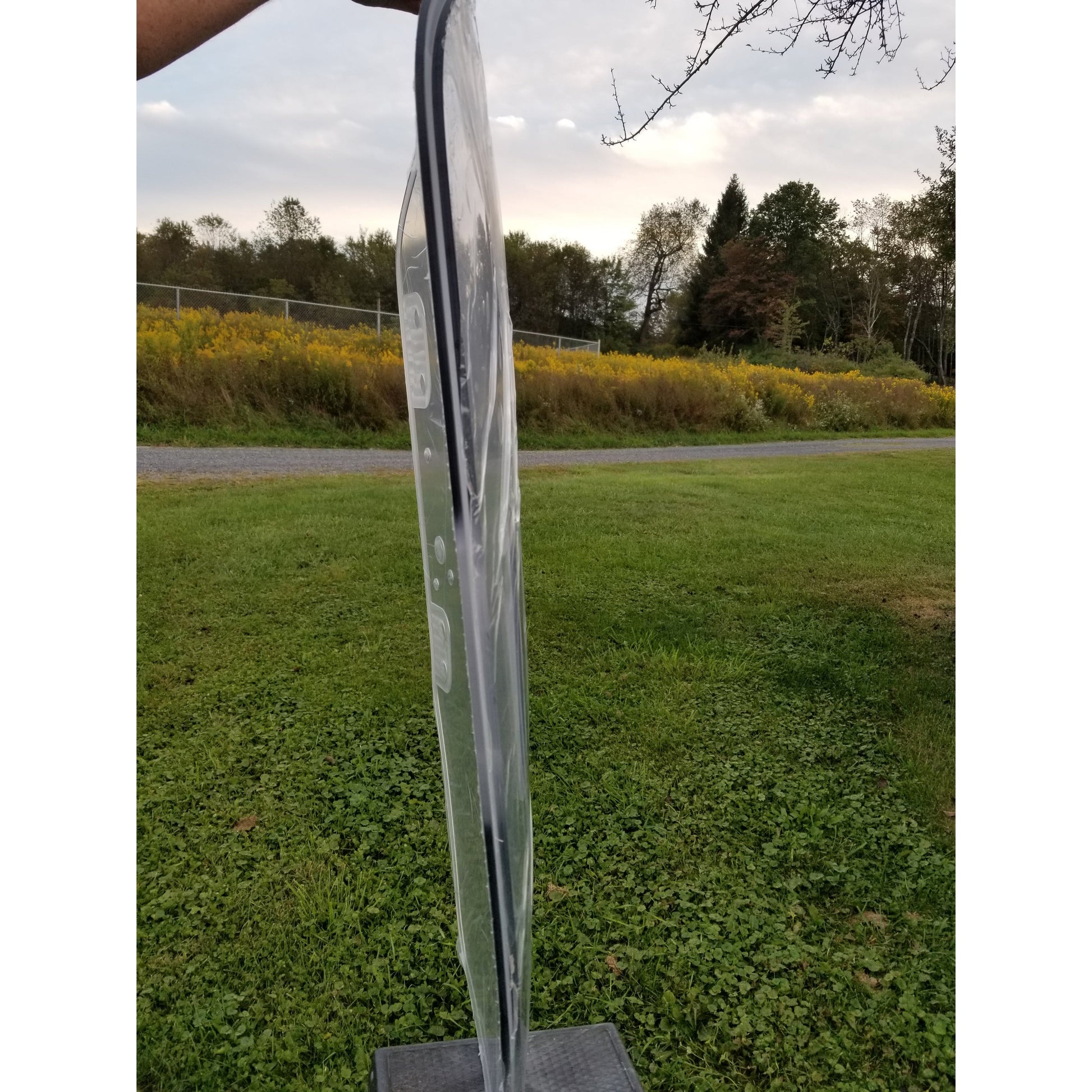

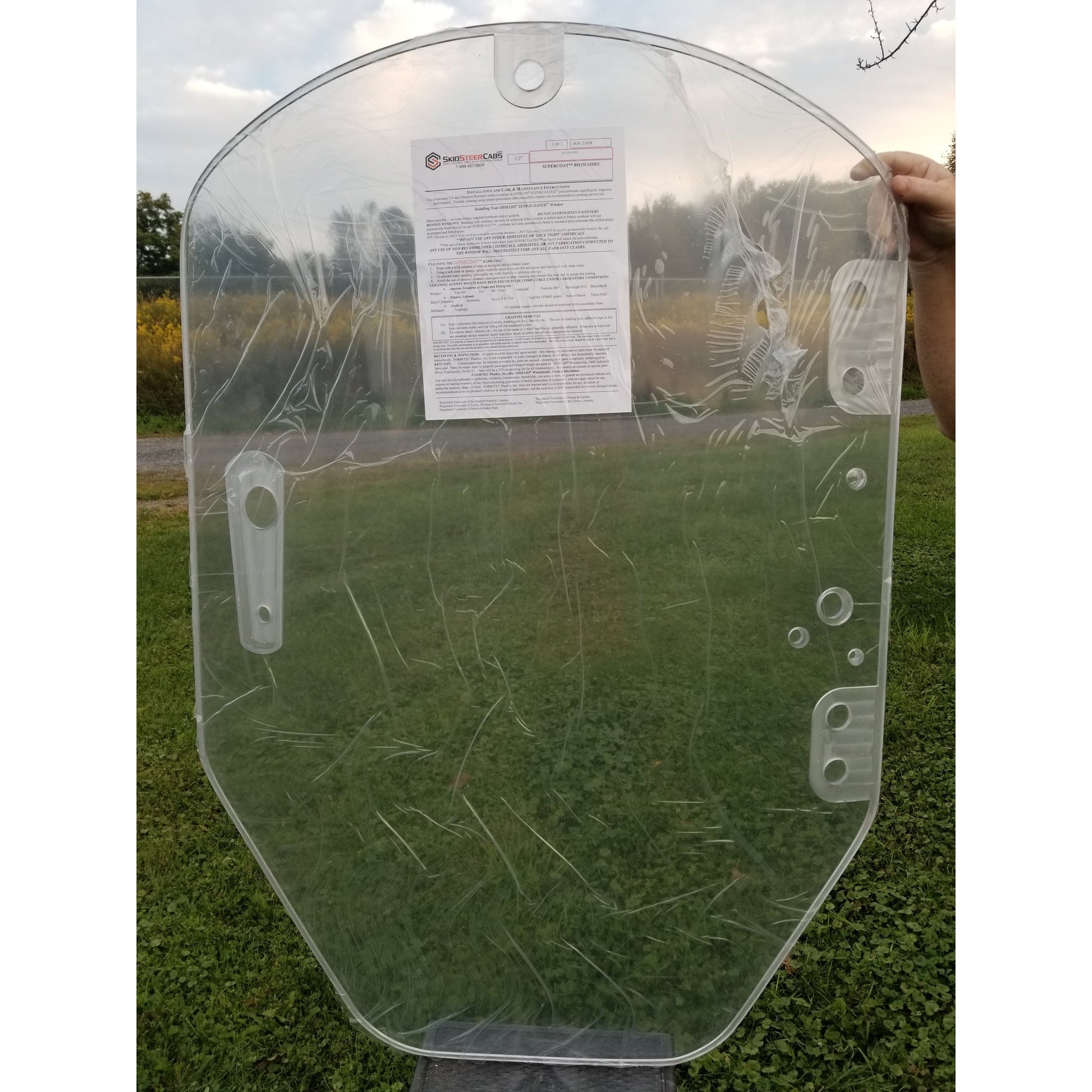

Replace curved Bobcat G-Series door glass 6729776 with a formed, clear polycarbonate windshield for the existing cab door. SHIELDS offers the panel in the three thicknesses carried on this SSC listing. Choose the thickness only after confirming the original glass number, machine serial number, and mounting pattern.
Check the G-Series fitment list
SHIELDS lists 751, 753, 763, 863, 864, 873, 883, and 963 loaders; A220 and A300 all-wheel steer loaders; S100, S130, S150, S160, S175, S185, S205, S220, S250, and S300 skid steers; and T110, T140, T180, T190, T200, T250, T300, and T320 compact track loaders. Do not substitute a later M-Series or R-Series windshield because the model family looks similar.
Select the panel thickness

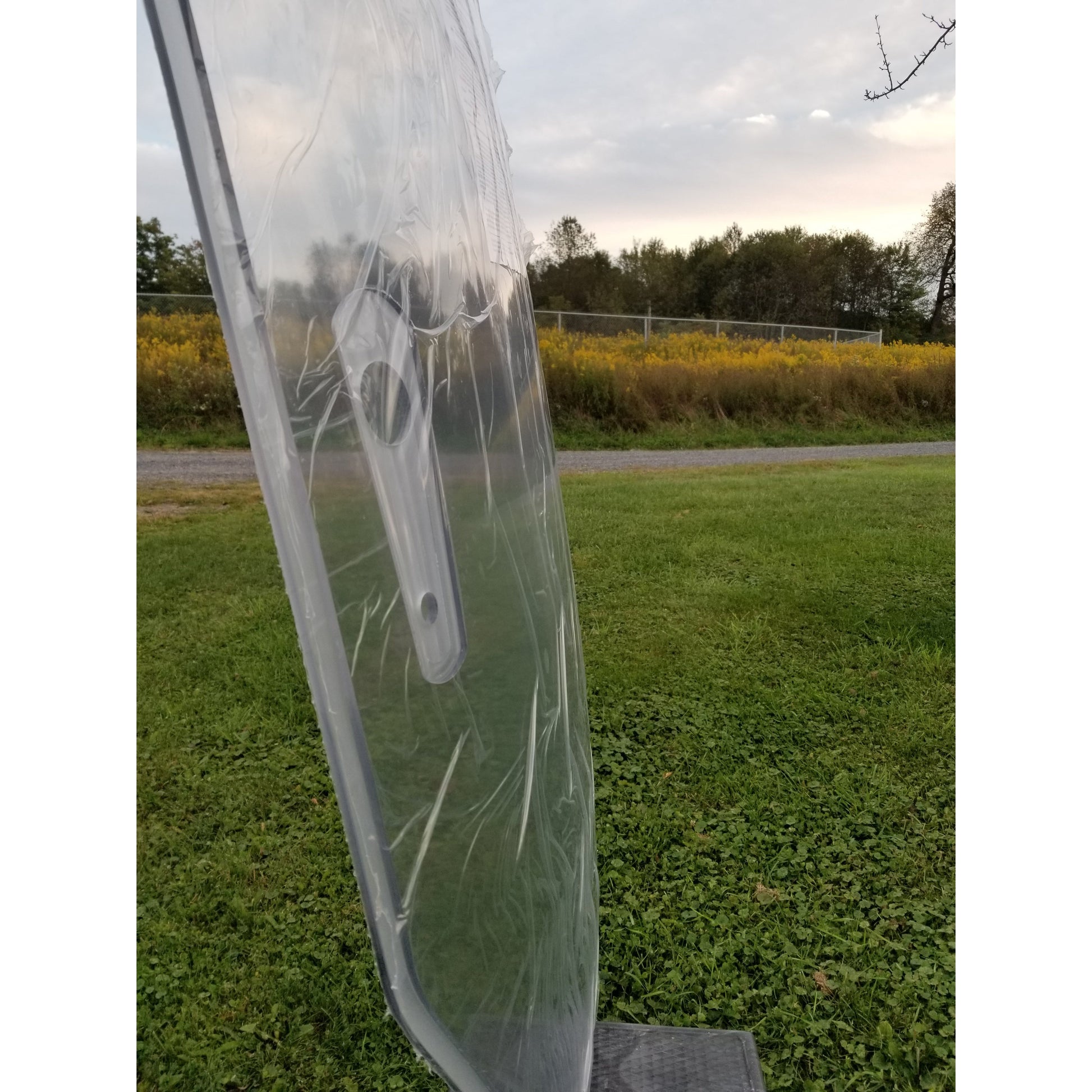

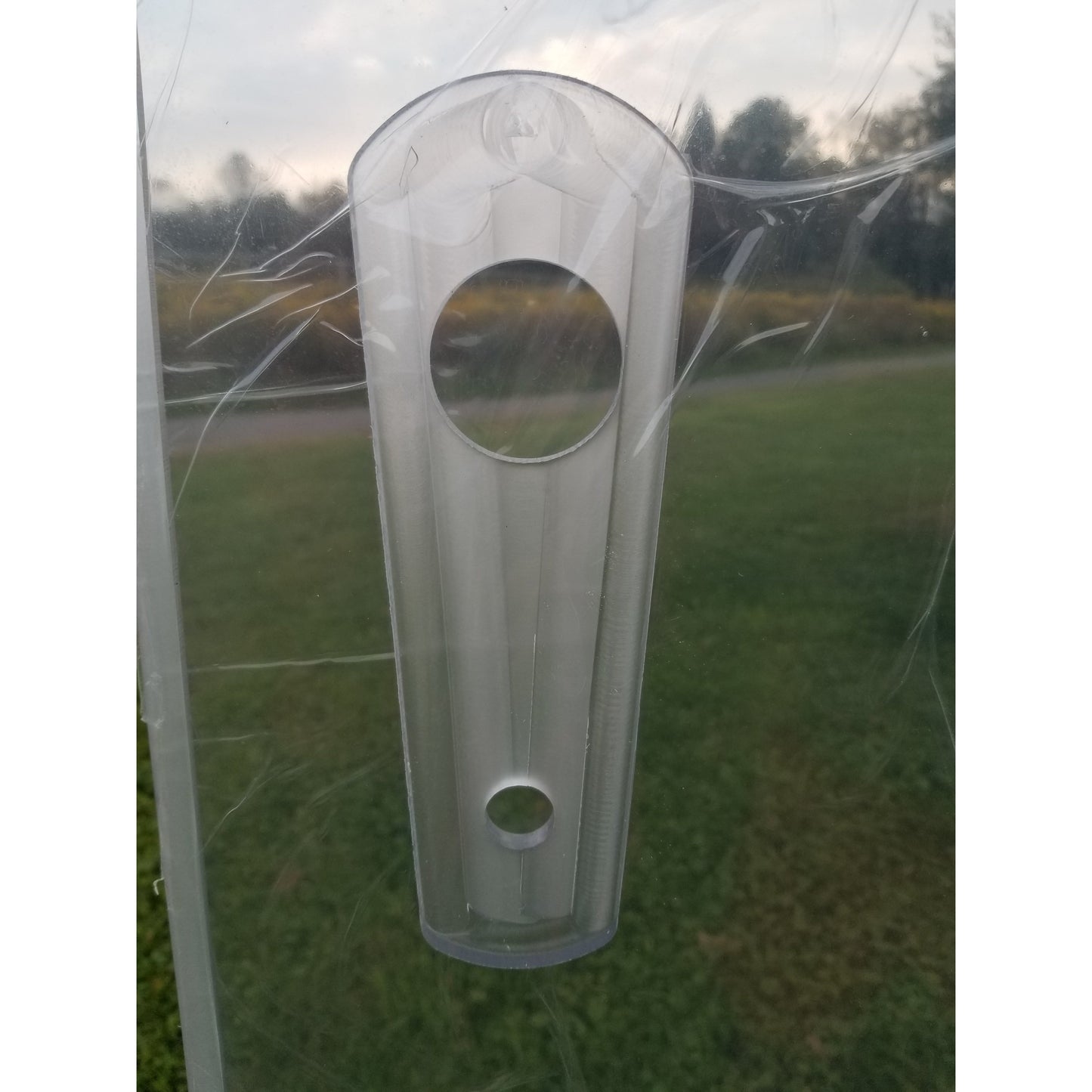

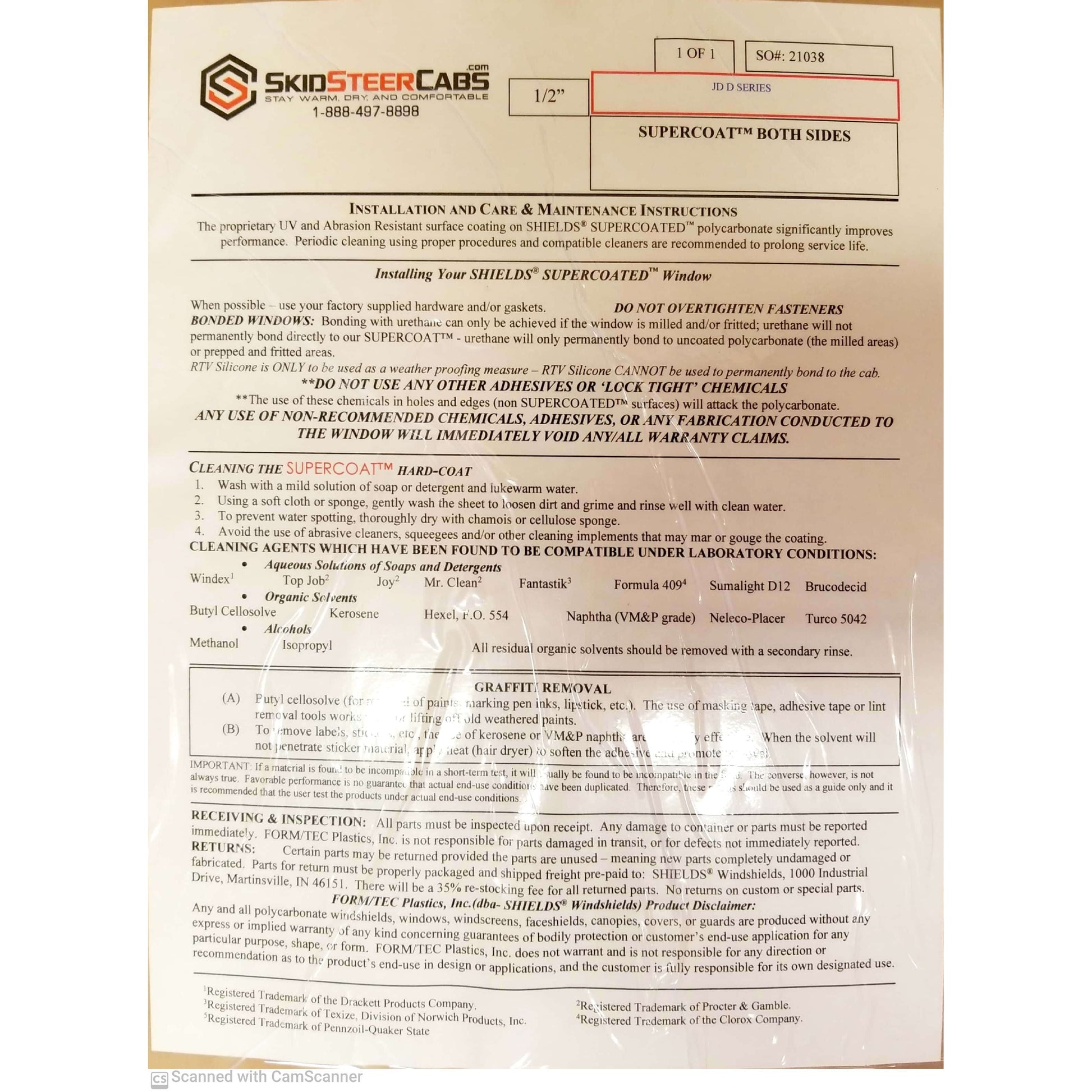

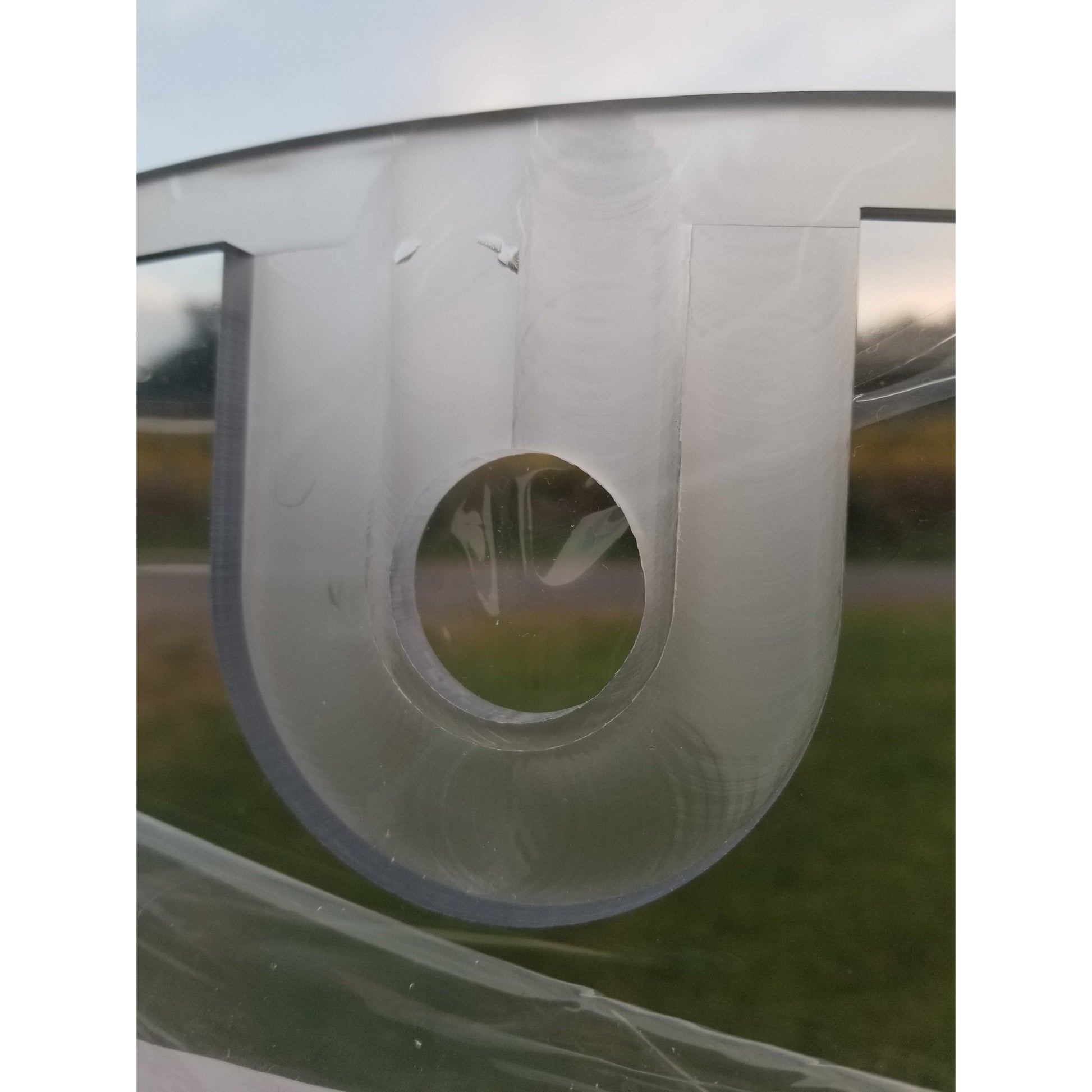

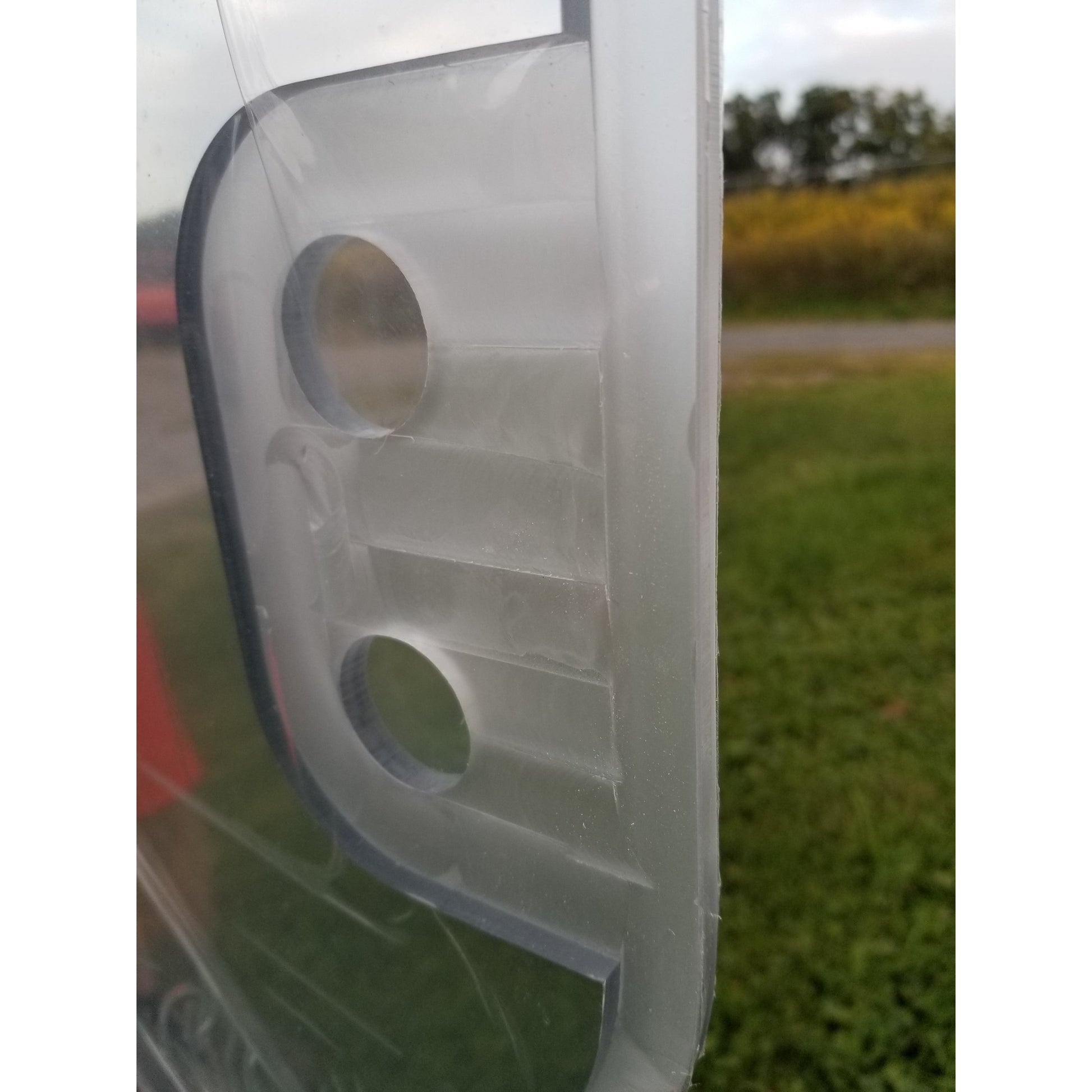

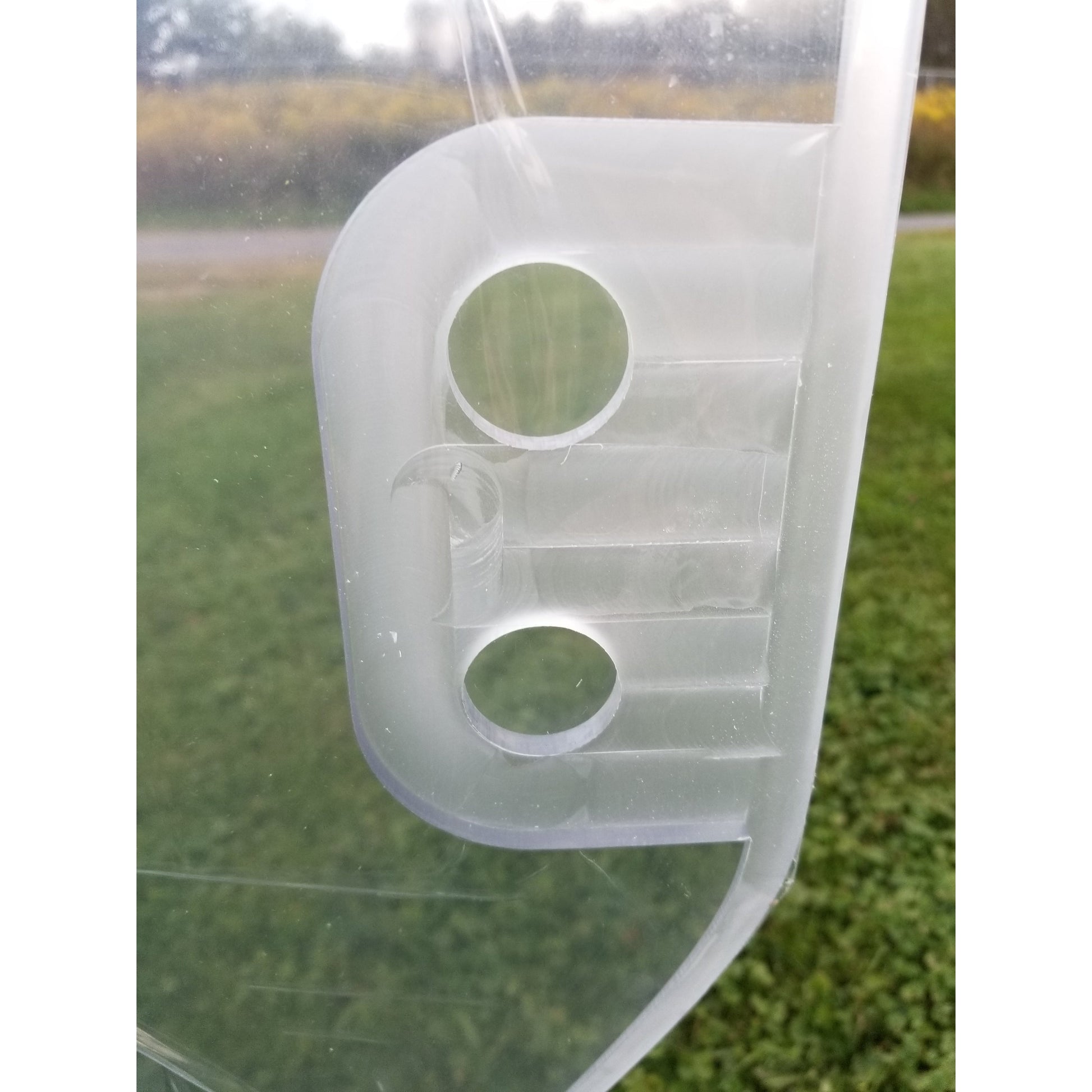

The current SSC variants are 1/4-inch, 3/8-inch, and 1/2-inch clear polycarbonate. SHIELDS forms the panel to the original glass profile, machines the required edges and holes, and applies SUPERCOAT to both sides for abrasion resistance. A thickness change can affect reusable fasteners or seals, so inspect the door before removing the old glass.
- Cross-references Bobcat curved cab door glass 6729776.
- Panel only; frame, seal, adhesive, and mounting hardware are not included.
- Confirm the serial number and mounting pattern before choosing a variant.
Questions before ordering
Will this fit an A770?
No. A770 is not on SHIELDS' G-Series fitment list and uses a later cab configuration.
Is the 1/2-inch panel required?
No. Select 1/4, 3/8, or 1/2 inch according to the existing door and work requirements.
Does the panel include a new frame?
No. This listing is for the formed windshield only.
See more Bobcat replacement windows and polycarbonate skid-steer doors. If the old number is unreadable, contact SSC with the model, serial number, opening measurements, and photos.
Confirm fitment before ordering
A machine model listed on this page does not, by itself, guarantee fitment. Before ordering, use your machine serial number to confirm the required OEM part number through the manufacturer or dealer, the applicable owner's or parts manual, or an authoritative OEM parts catalog. Match that OEM number and the existing door or window configuration to this listing.
If SSC correctly ships the item, SKU, and variant you selected, but the selection is not correct for your machine, the order is not eligible for return, exchange, refund, or credit, and SSC will not cover any costs to correct the selection. If SSC ships a different item than you ordered, we will make it right at our expense.
If you are uncertain, contact SSC before ordering with the machine make, model, serial number, current OEM part number if available, and clear photos. Review our Returns and Refunds Policy.
People Who Bought This Item Also Bought
Questions & Answers
Have a Question?
-
looking for bobcat t300 left side sliding window ? prefer to have a poly ?
Hi!
The replacment forestry doors I have replace just the front door. I do make some replacment sides, but they don't slide open at all. They are a single large pice of polycarbonate that bolts over the side of the machine. Here's a link to them on my site.
Thanks!Nathan
