Product Description

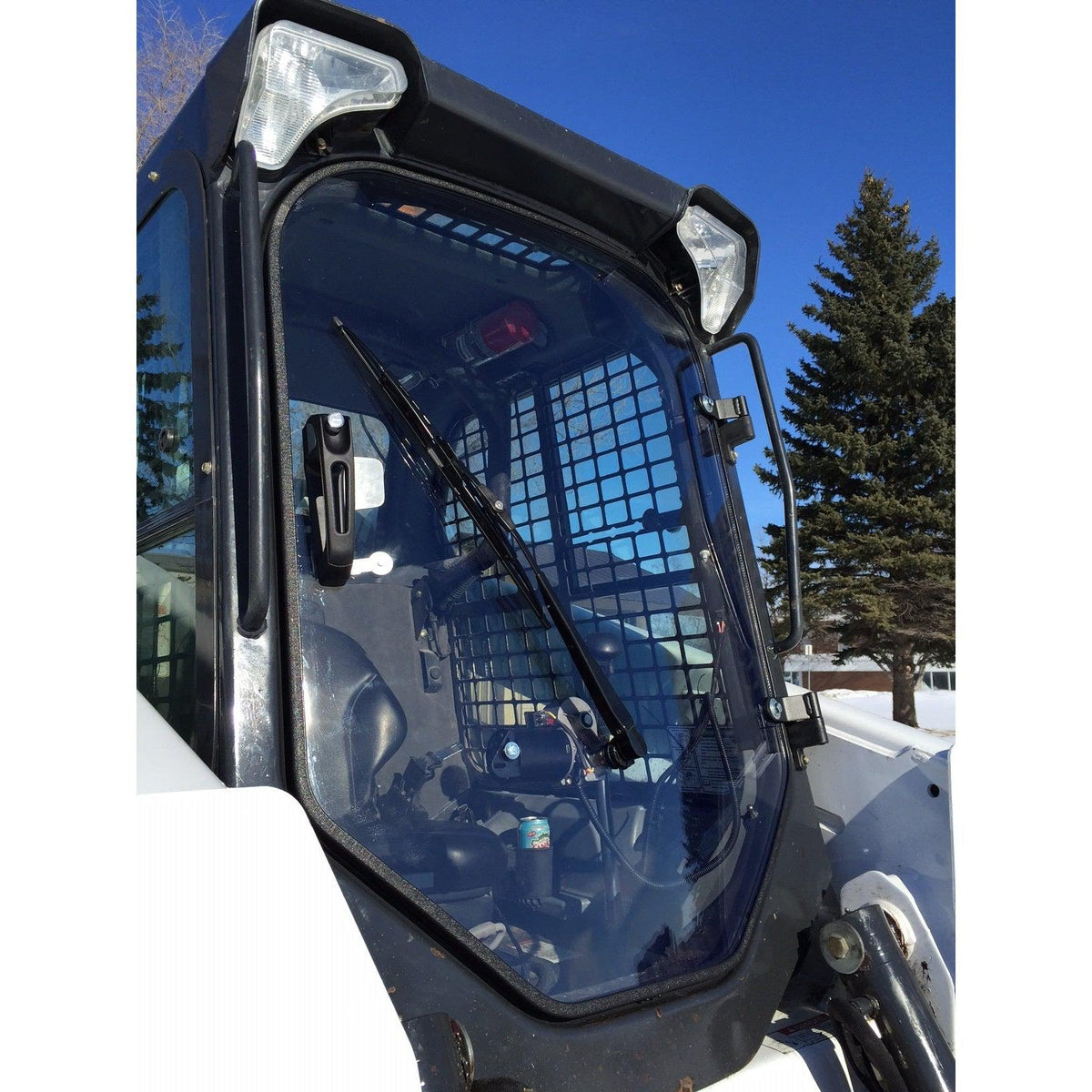

BOBCAT POLYCARBONATE SKID STEER DOOR | BOBCAT M SERIES
Our precision-made Bobcat polycarbonate door is the ideal upgrade or replacement to provide increased safety and operational efficiency for such jobs as mowing, brush clearing, forestry, mulching, and much more.
Why Polycarbonate?
With a new SSC® precision formed and coated Polycarbonate windshield you can count on the same quality form, fit, and function of your standard OEM glass, but with substantially improved safety, durability, and performance.

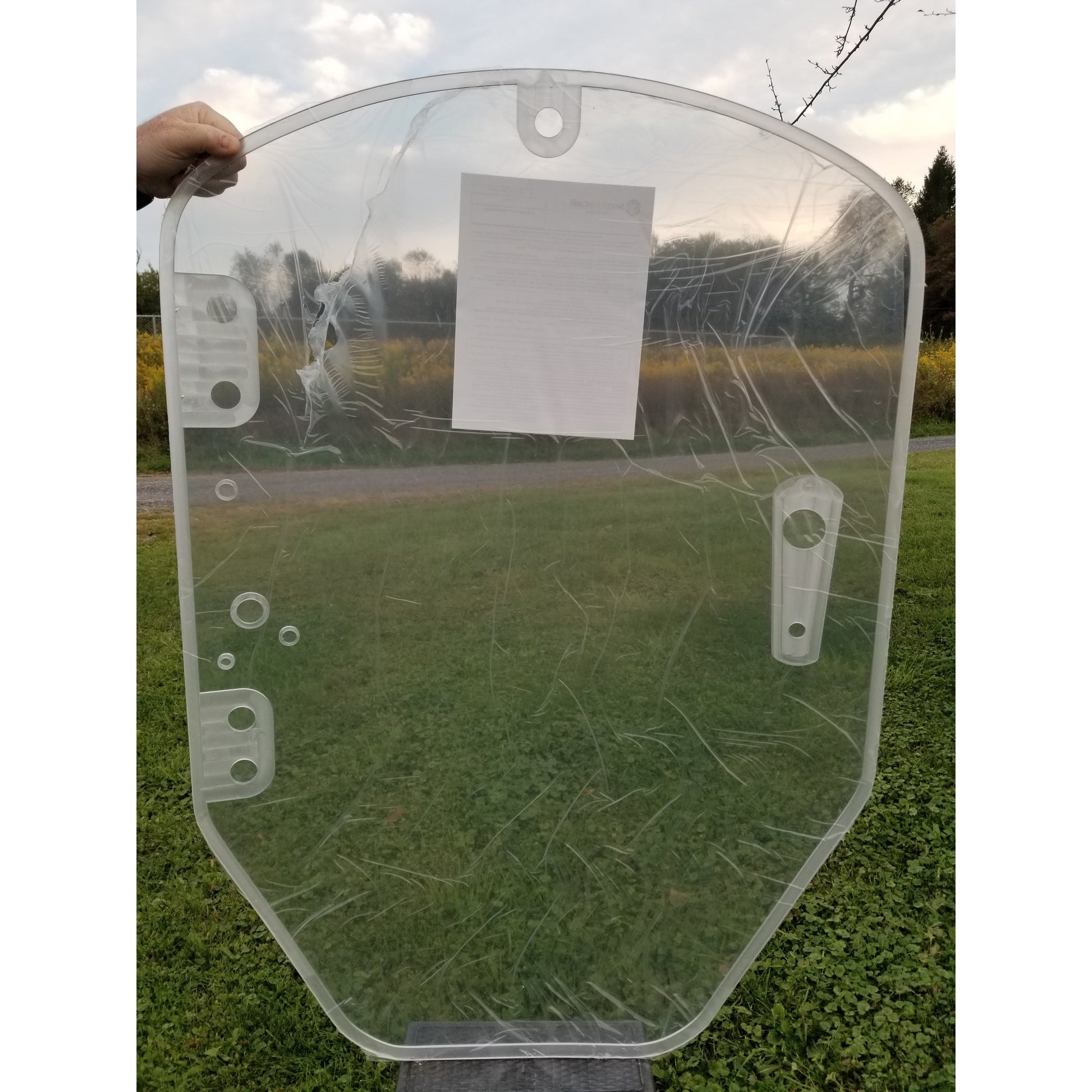

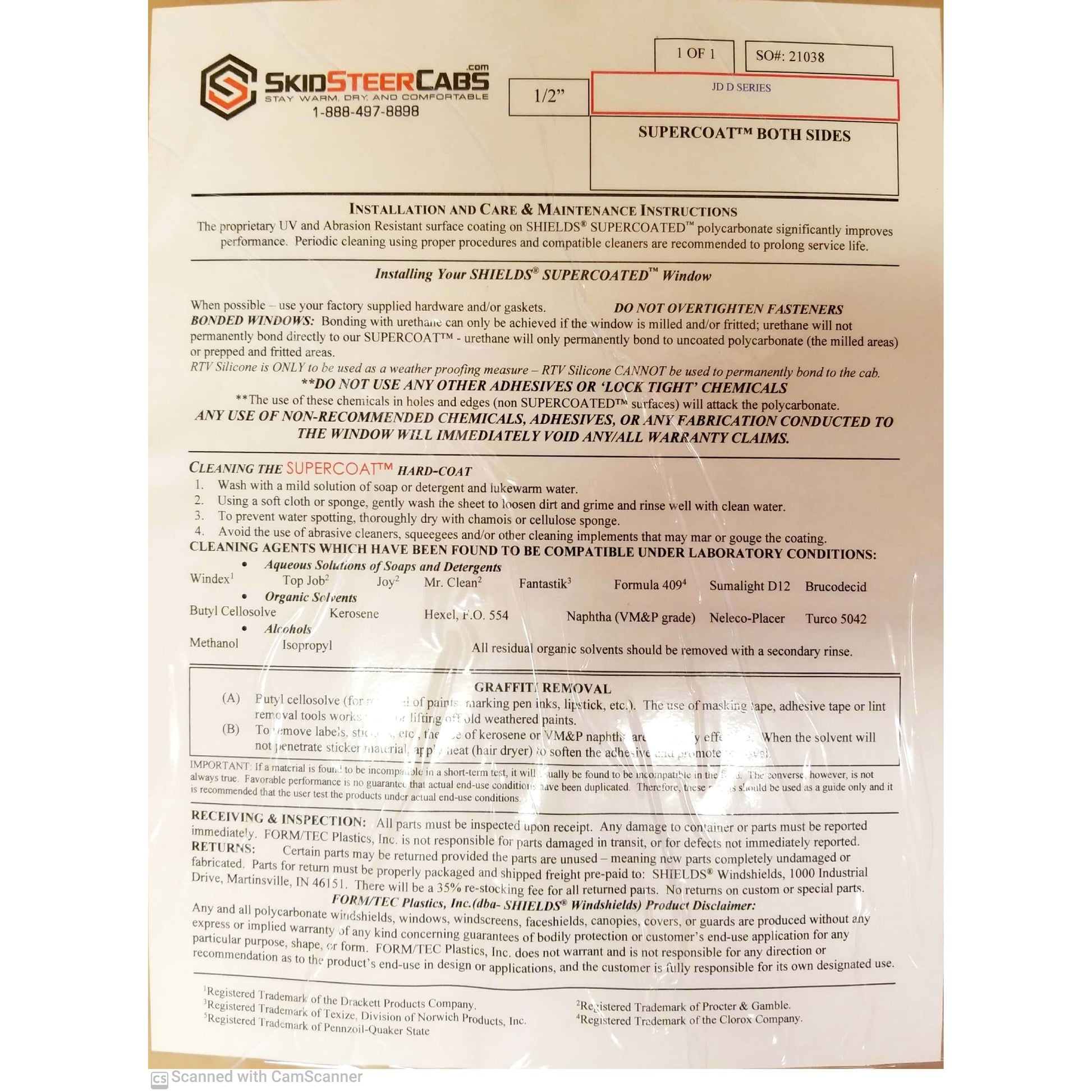

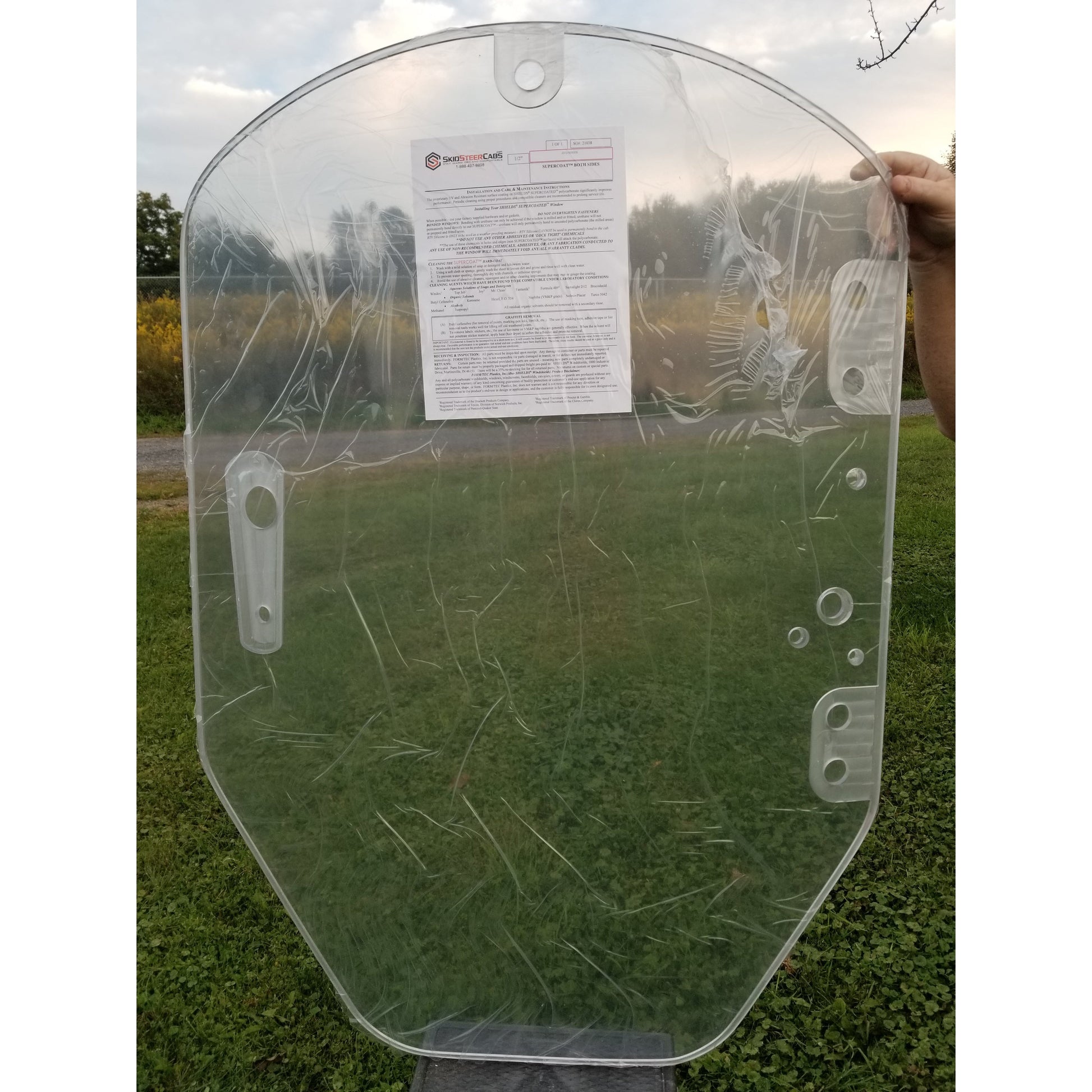

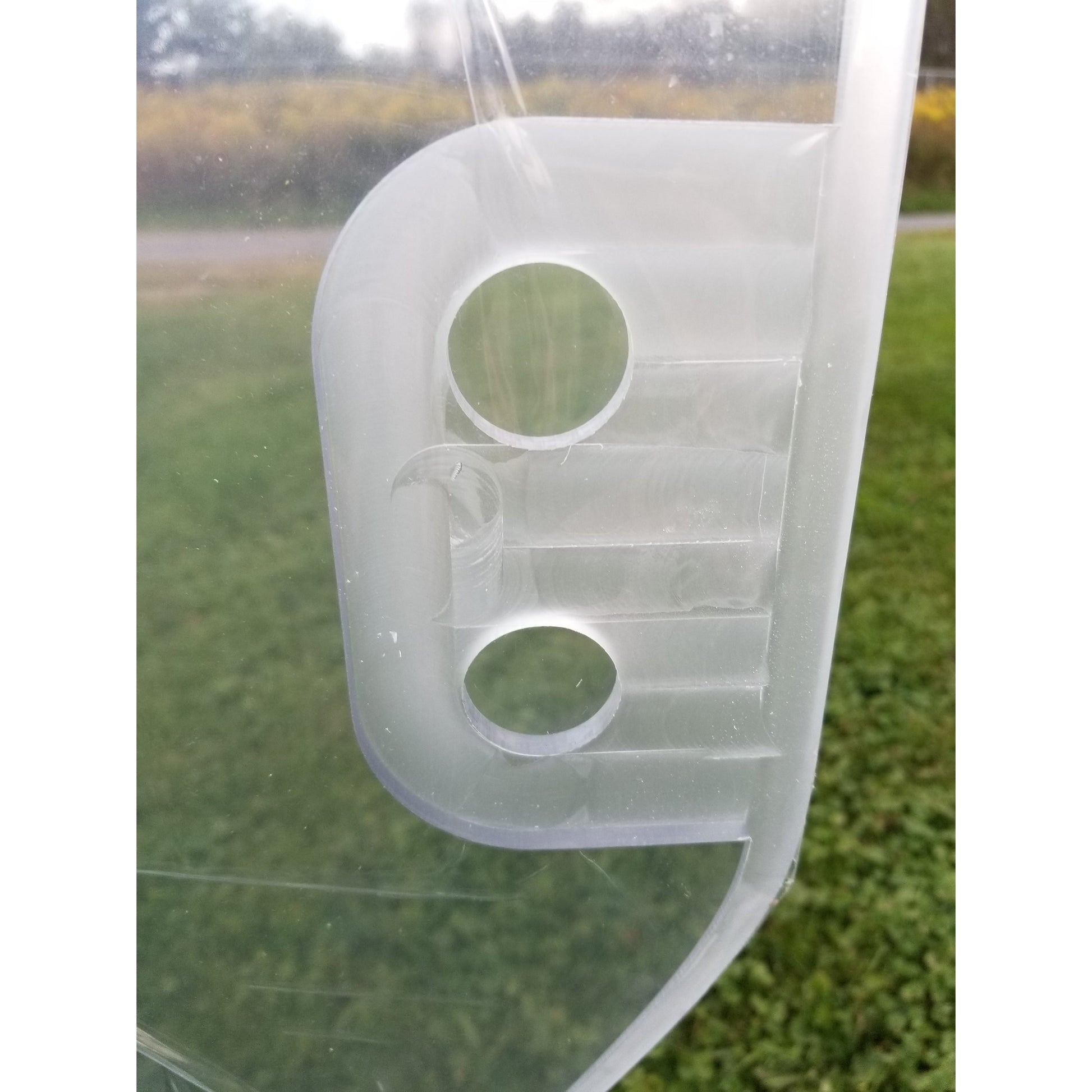

We begin by cutting and forming our doors to duplicate the OEM glass (including hardware mounting holes). Then we precision mill the edges and holes so that the original hardware can be used from your existing glass door. Finally, we post-coat both sides of the door with our ultra-tough SUPERCOAT™ protective coating. This gives the polycarbonate nearly the same level of abrasion resistance as glass, but with drastically improved safety and durability.
Fitment Details
This Bobcat polycarbonate door is designed to be a direct replacement for your standard OEM door glass and features the same mounting and hardware holes. The door uses your existing OEM hardware for the installation and replacement of your existing door. The purchase of this door DOES NOT include mounting hardware. If replacing a 1/4" or less thickness OEM door with 1/2" polycarbonate, longer bolts may be required for optimal installation. Replaces OEM Glass# 7120401
Compatibility
- A770
- S450, S510, S530, S550, S570, S590, S630, S650, S750, S770, S850
- T450, T550, T595, T630, T650, T740, T750, T770, T870

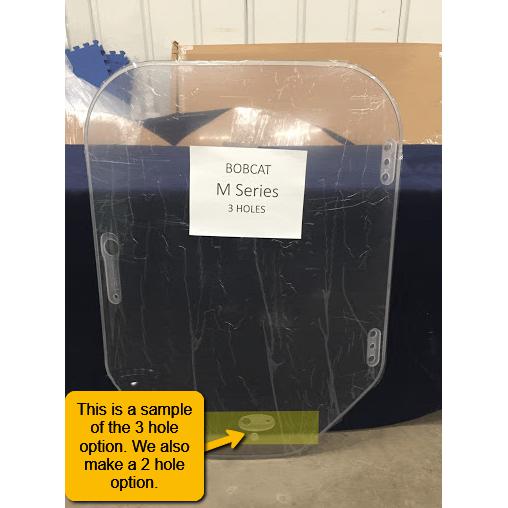

Please note: when ordering, if you have a 2 or 3 hole wiper option at the bottom of your door as referenced in the last picture on this product page.
Features
- 3/8", 1/4" or 1/2" thick polycarbonate options
- Clear Lexan/Polycarbonate material is impact-resistant
- Increased durability
- Increases operator safety
- Ideal replacement for OEM factory glass
- Super-coated on both sides for optimal abrasion-resistance

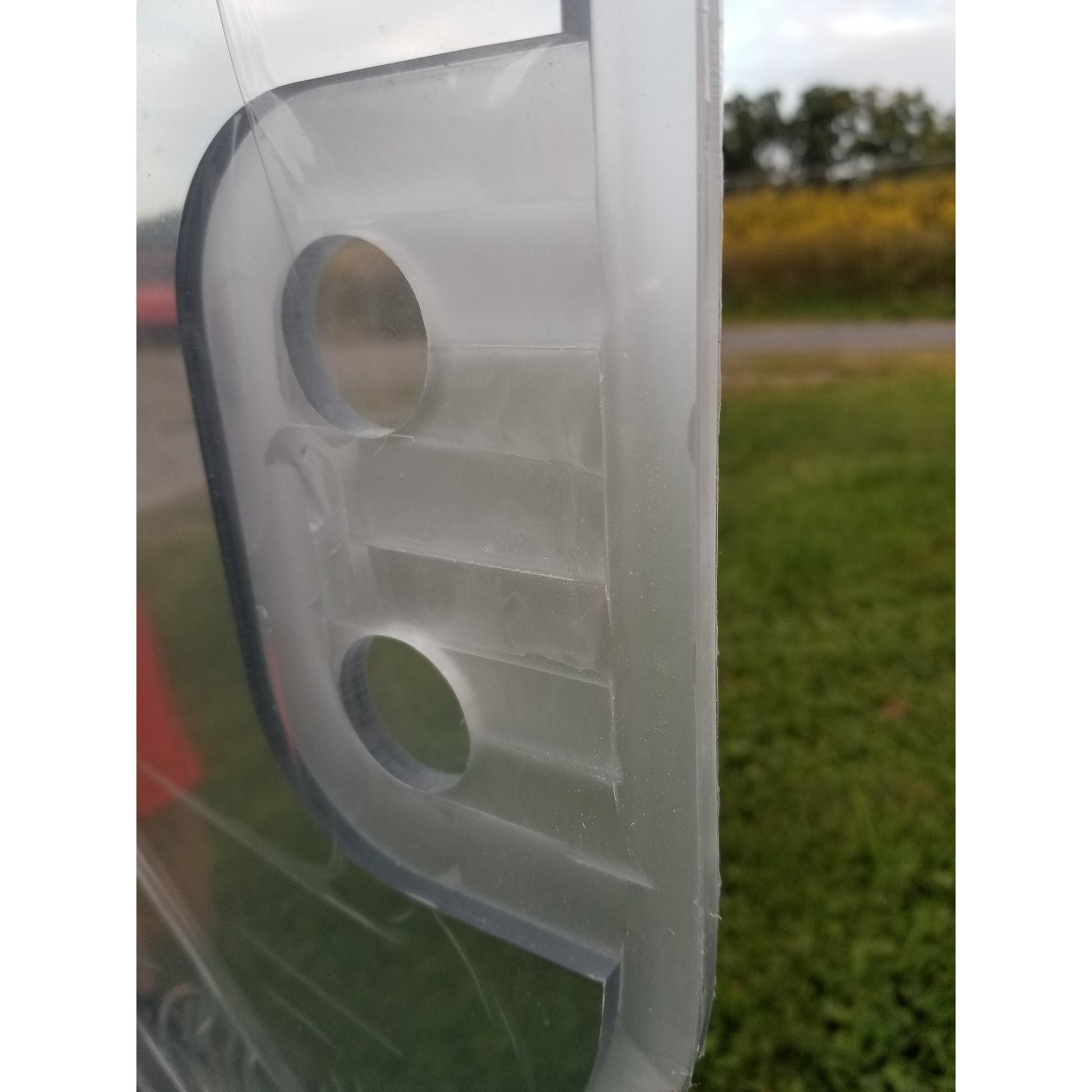

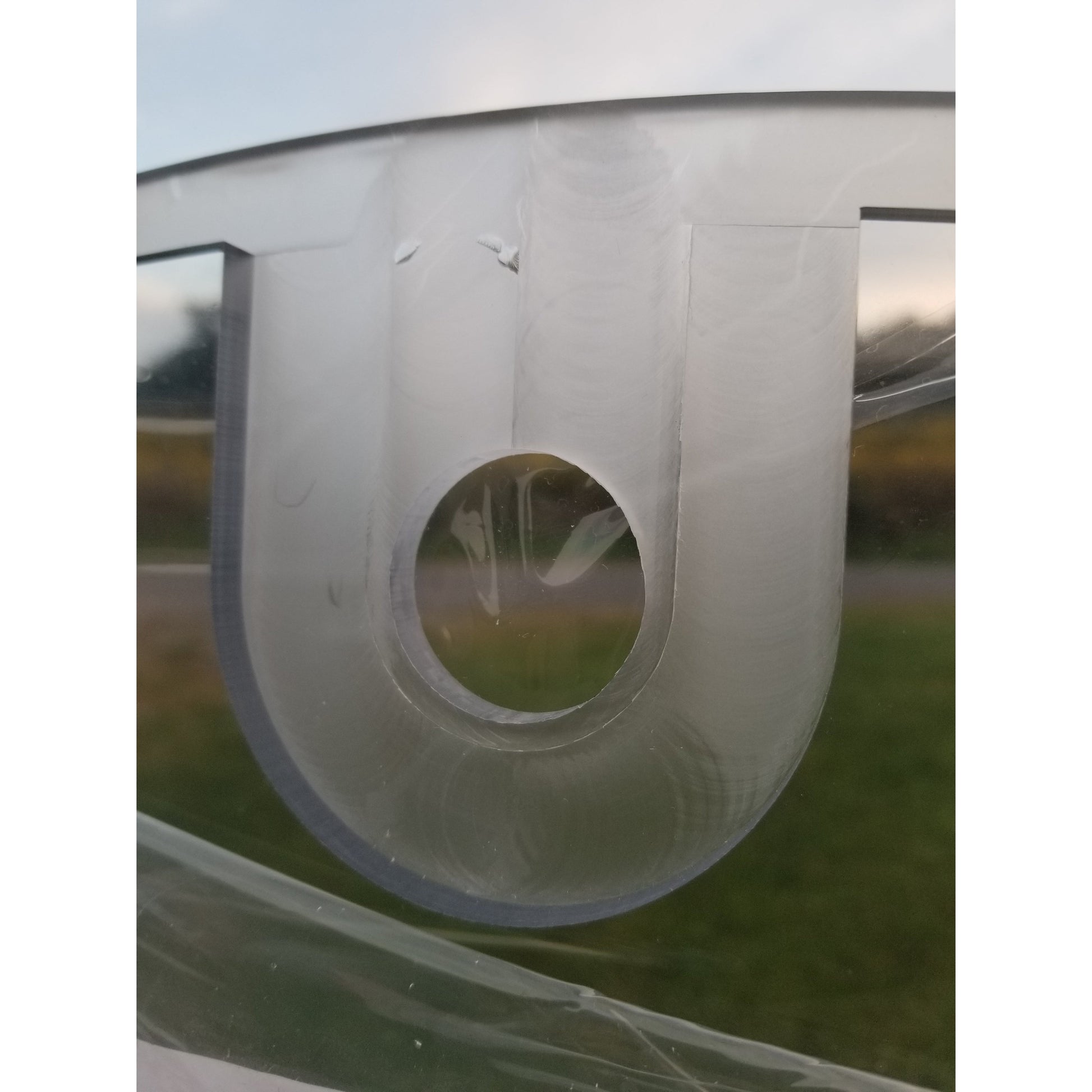

- Precise replication of OEM mounting holes

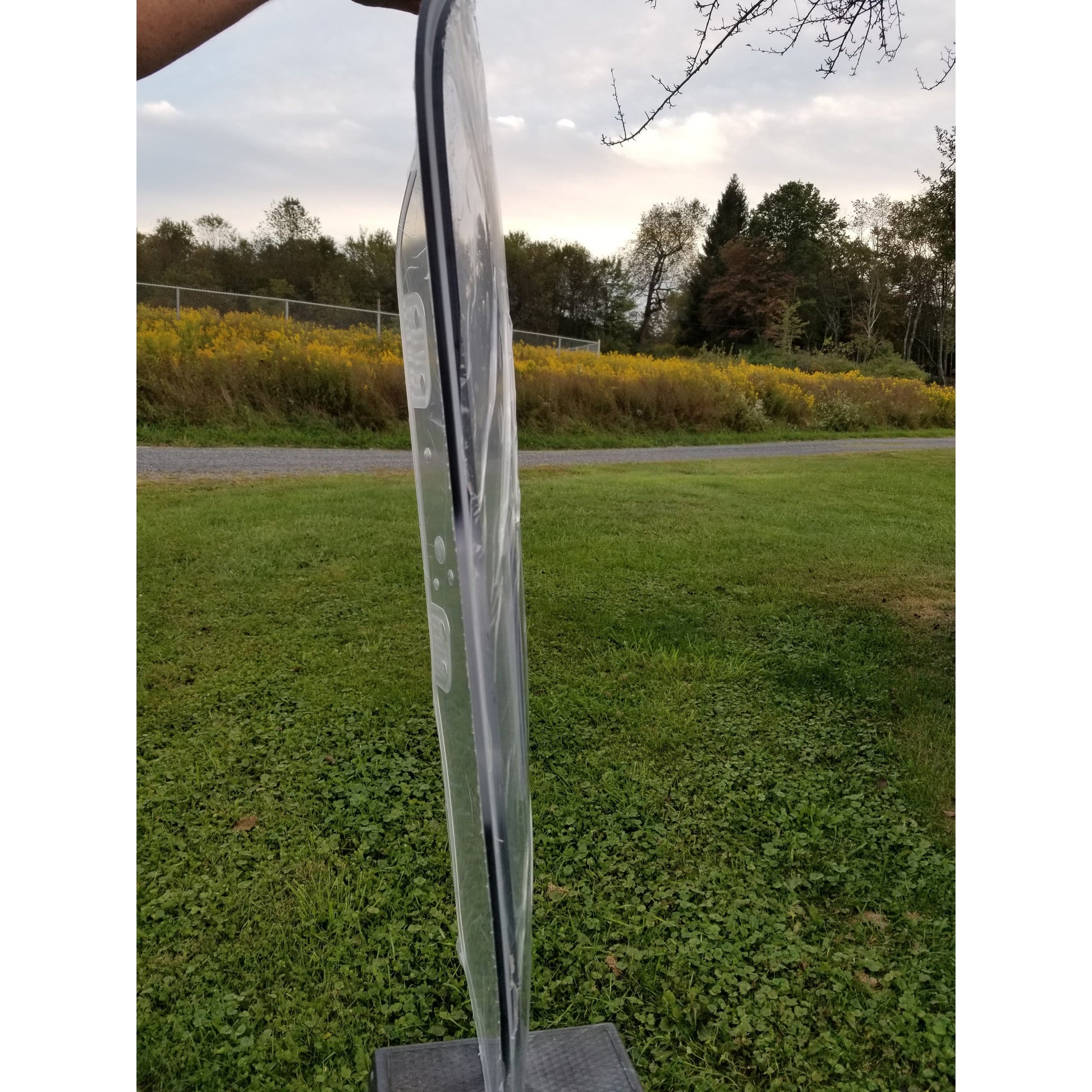

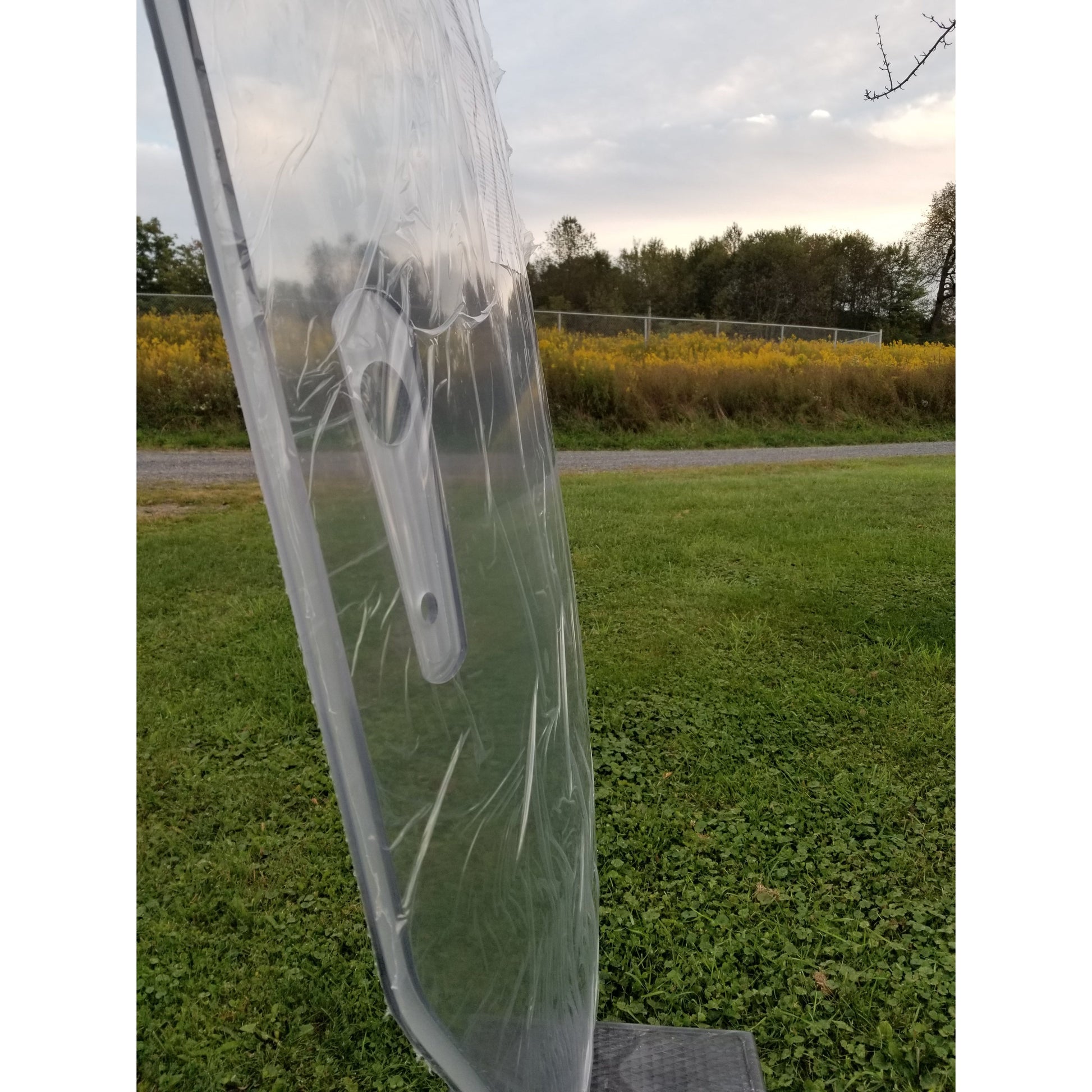

- Milled edges make swapping out the door seal fast and easy
- 1/2 the weight of glass
- 260 times stronger than glass (will never break again)
- Much better noise-reduction properties
- Increases light transmission and visibility
- Decreased summer heat transferred through the door
- Reduced winter heat loss
- HARDWARE IS NOT INCLUDED
Note: Please be aware that production times for this product may vary dramatically depending on material availability and lead time. Some doors may take up to 45 business days to produce, please contact us to confirm lead time before ordering.
Note: Some images shown here are samples for a John Deere replacement door and are not the specific door for your make and model.
Similar Items You Might Like
People Who Bought This Item Also Bought
Questions & Answers
Have a Question?
-
Does the M series replacement door work with T590?
Yes, that kit will work on your machine, just select your model from the dropdown menu! Feel free to call/text me at 240-301-1225!
-
My current windshield is 1/4 inch thick will my hardware fit on the half inch thick?
Hi! We do offer 1/4" polycarbonate doors as well, but you will have to place the order over the phone! Please call me directly at 240-301-1225 and I can help out!
-
Is this windshield sufficient for use with Bobcat T770 and Forestry Mulcher? Also, Does it come with frame?
Yes, this windshield is definitely sufficient for forestry applications such as a mulching attachment. It is nearly indestructible as it is made of 1/2" polycarbonate plastic.
This door slug is designed to replace the existing glass slug in your factory door setup. As such, it comes with NO hardware whatsoever (just the polycarbonate slug).
If you don't have an existing factory glass door, then you would need our aftermarket enclosure door kit, which can be found at the link below:
https://www.skidsteercabs.com/collections/bobcat-enclosure-systems/products/extreme-duty-cab-enclosure?variant=49059019411
This latter option comes with a door, handle set, latch, strike, hinges, hinge bases, and all other hardware/fasteners required to install the door. -
are there wiper kits available?
We make our own wiper kit for our 1/2" Pro-Series doors, here:
https://www.skidsteercabs.com/products/electric-wiper-kit
These are not factory OEM replacement wiper kits, but they may work for your needs, if you are using on polycarbonate.
-
I have t770 bobcat 2024 this fit my unit
Hi,
This will work in your t770, and will re-use your old hardware and seal as well! Let me know if you have any more questions.
Thanks,
Nathan
-
I have a 2015 bobcat T770 that doesn’t have a forestry door. Does the 1/2” glass work or would I need to buy a new frame as well? It has a factory door just standard glass.
Good morning,
Yes this is the replacement for the factory glass, the 1/2" will fit in your original hardware, we mill down the edges so that everything will work! They are about 30-40 days out right now to get made and shipped. let me know if you have any questions!
Thanks,
Nathan
