Product Description
Quad-View Camera Monitoring with Built-In DVR
The Camera Source CS-7QAHD2 combines a 7-inch quad-view monitor, built-in DVR, and two 1080p AHD cameras for combines, tractors, skid steers, construction equipment, livestock trailers, and other 12/24V work vehicles. View the two included cameras now and expand the monitor to as many as four camera inputs later.

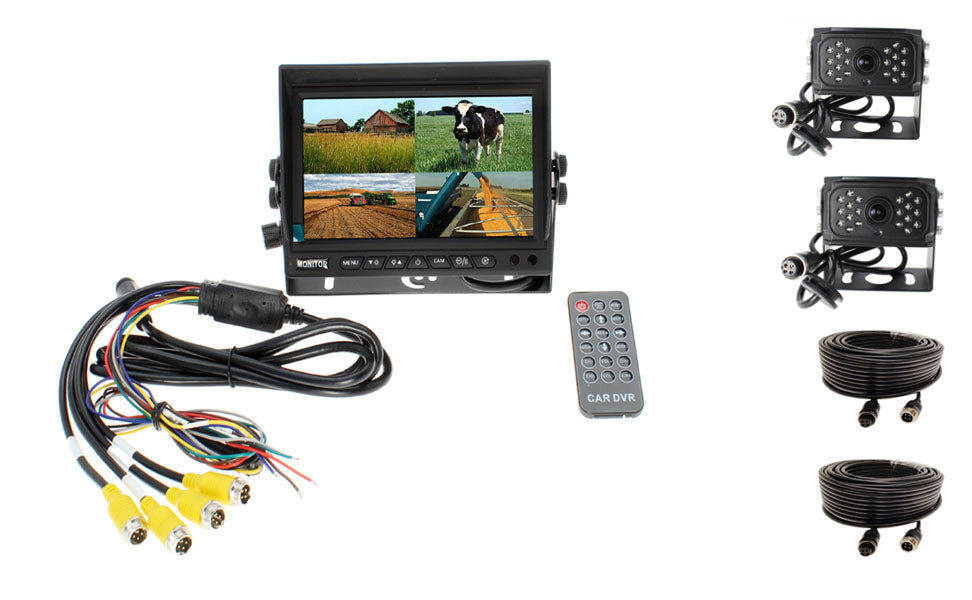

What’s Included
- 7-inch quad-view monitor with built-in DVR, remote control, and mount
- Two 1080p AHD cameras with adjustable U-brackets
- Two 64-foot twist-lock camera cables
- Four-camera wiring harness
Key Specifications
- 12/24V electrical compatibility
- Four camera inputs and four trigger inputs
- Split-screen and quad-view display modes
- DVR supports SD cards up to 256GB for approximately 20 hours of recording
- 150-degree viewing angle and infrared low-light support from each included camera
- Weather-resistant camera housings with locking 4-pin coax connections
- Monitor dimensions: 172 × 115 × 22 mm
- Impact rating: 5G monitor and 50G cameras
Compatibility
This is a universal 12/24V camera system rather than a machine-specific kit. Confirm available mounting space, electrical compatibility, and cable routing for your equipment before ordering. An SD card is not included.
Installation
Connect the monitor to power and ground, install and route each supplied camera cable, and connect optional trigger wires for automatic view switching. The locking coax cables carry camera power and video.
Warranty and Ordering Notes
Covered by Camera Source’s one-year manufacturer warranty. This item ships directly from Camera Source.
For a simpler two-input display without DVR recording, compare the two-camera heavy-duty system. Add another compatible view with the Camera Source 1080p AHD replacement camera; extension cables are sold separately.
Compare all complete systems and compatible accessories in our Backup Cameras & Camera Systems collection.
