Product Description
Replacement or Add-On Camera for Compatible AHD Monitors

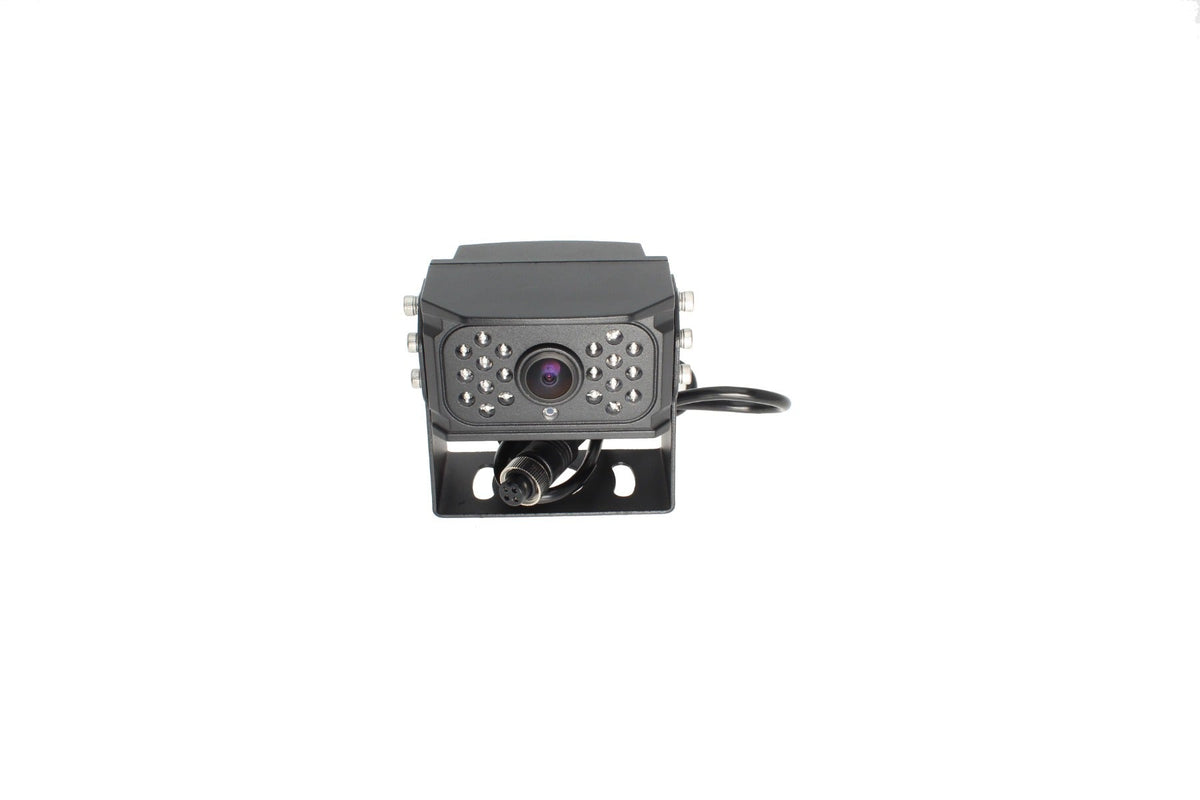

The Camera Source CS-AHD1080-NG is a 1080p AHD camera for compatible Camera Source AHD monitoring systems. Its 150-degree rear-facing view, infrared low-light support, steel housing, and adjustable U-bracket make it suitable for equipment and work-vehicle installations that need another viewing angle or a replacement camera.
What’s Included
- One 1080p AHD camera
- Steel adjustable U-bracket
Camera cables are not included.
Key Specifications
- Sony CMOS image sensor
- 150-degree viewing angle
- Infrared night-vision support for 0-lux conditions
- 12/24V compatibility when connected through a compatible system
- Commercial 4-pin coax connection
- Weather-resistant steel housing
- 50G impact rating
- No microphone or parking guidelines
Compatibility
This camera requires a compatible AHD monitor and a matching 4-pin coax camera cable. It will not provide a usable image with a non-AHD monitor. Confirm the monitor format and connector before ordering.
Installation
Mount the camera using the supplied U-bracket, connect it to the compatible AHD monitor with a separately sold 4-pin coax cable, and set the desired viewing angle.
Warranty and Ordering Notes
Covered by Camera Source’s one-year manufacturer warranty. This item ships directly from Camera Source.
Need a complete system? Choose the one-camera 7-inch kit, the two-camera 7-inch kit, or the quad-view DVR system.
Compare all complete systems and compatible accessories in our Backup Cameras & Camera Systems collection.
