Product Description
Two-Camera Visibility for Equipment and Work Vehicles
The Camera Source CS-7HVAHD2 gives operators two hard-wired camera views around skid steers, tractors, construction equipment, trucks, trailers, farm machines, fleet vehicles, and RVs. The 7-inch heavy-duty monitor accepts both included 1080p AHD cameras, each with a wide 150-degree view and infrared support for low-light work.

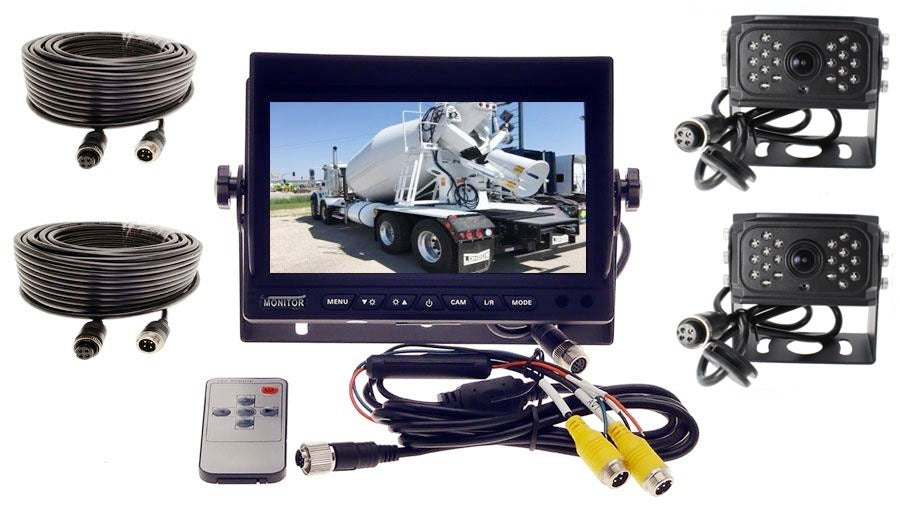

What’s Included
- 7-inch 16:9 heavy-duty monitor with remote control
- Two 1080p AHD cameras with steel housings and adjustable U-brackets
- Two 64-foot twist-lock camera cables
- Monitor mount and wiring harness
Key Specifications
- 12/24V electrical compatibility
- Two monitor camera inputs
- 150-degree viewing angle per camera
- Infrared night-vision support for 0-lux conditions
- Weather-resistant camera housings with locking 4-pin coax connections
- Monitor dimensions: 172 × 115 × 22 mm
- Impact rating: 10G monitor and 50G cameras
Compatibility
This is a universal 12/24V camera system rather than a machine-specific kit. Confirm available mounting space, electrical compatibility, and cable routing for your equipment before ordering.
Installation
Connect the monitor to power and ground, route each supplied cable to a camera, and use the optional reverse-trigger wire if you want automatic display switching. Each locking coax cable carries camera power and video.
Warranty and Ordering Notes
Covered by Camera Source’s one-year manufacturer warranty. This item ships directly from Camera Source.
Only need one camera? See the one-camera system. For DVR recording and expansion to four camera inputs, choose the quad-view DVR system. Need a replacement camera? See the Camera Source 1080p AHD replacement camera; camera cables are sold separately.
Compare all complete systems and compatible accessories in our Backup Cameras & Camera Systems collection.
