Product Description
Rugged 7-Inch Camera System for Equipment and Work Vehicles
The Camera Source CS-7HVAHD1 is a hard-wired rear-view camera system for skid steers, tractors, construction equipment, trucks, trailers, farm machines, fleet vehicles, and RVs. Its 7-inch monitor accepts two camera inputs, while the included 1080p AHD camera provides a wide 150-degree view with infrared support for low-light work.

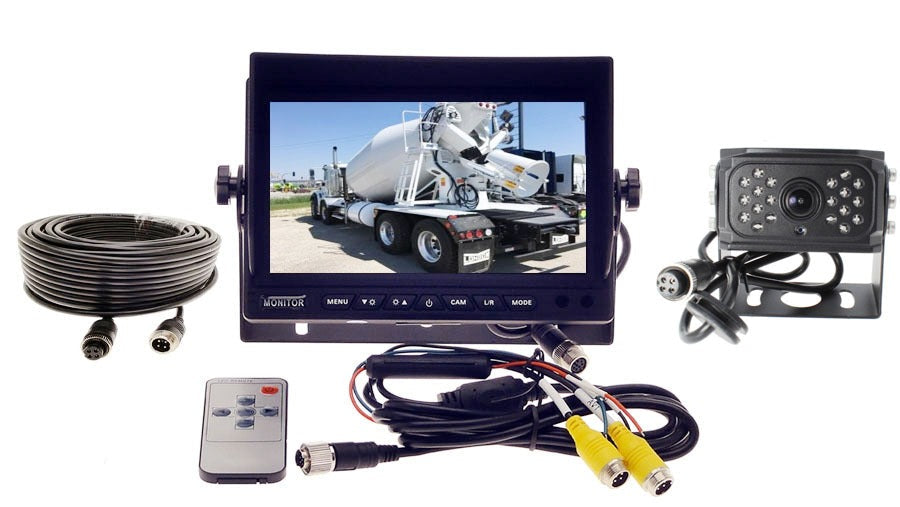

What’s Included
- 7-inch 16:9 heavy-duty monitor with remote control
- One 1080p AHD camera with steel housing and adjustable U-bracket
- One 64-foot twist-lock camera cable
- Monitor mount and wiring harness
Key Specifications
- 12/24V electrical compatibility
- Two monitor camera inputs
- 150-degree camera viewing angle
- Infrared night-vision support for 0-lux conditions
- Weather-resistant camera housing with locking 4-pin coax connection
- Monitor dimensions: 172 × 115 × 22 mm
- Impact rating: 10G monitor and 50G camera
Compatibility
This is a universal 12/24V camera system rather than a machine-specific kit. Confirm available mounting space, electrical compatibility, and cable routing for your equipment before ordering.
Installation
Connect the monitor to power and ground, route the supplied cable to the camera, and use the optional reverse-trigger wire if you want the display to switch automatically. The locking coax cable carries both camera power and video.
Warranty and Ordering Notes
Covered by Camera Source’s one-year manufacturer warranty. This item ships directly from Camera Source.
Need two viewing angles? See the two-camera version. For recording and four-camera expansion, choose the quad-view DVR system. Need a replacement or second camera? See the Camera Source 1080p AHD replacement camera; a compatible 4-pin coax cable is required and sold separately.
Compare all complete systems and compatible accessories in our Backup Cameras & Camera Systems collection.
